14MM-8DAB-FM - 8x DAB/DAB+ or FM In to IP or Analogue Out Receiver
Front View

8x DAB/DAB+ or FM In to IP or Analogue Out Receiver

14MM-8DAB-FM

Discontinued Product

Product Summary

Product Summary Coming Soon.
View More Discontinued

Features and Benefits

  • 8 x DAB/DAB+ or FM inputs to IP or Analogue outputs
  • For operation in SMATV and Cable TV networks
  • IP SPTS output in UDP/RTP
  • Web browser user interface with built in IP Switch
  • Line and headphone compatible audio monitor output
  • Can be used with Chameleon or Tangram to create DVBT output for radio insertion to TV systems

Find a Stockist Now


Pack Quantity

Inner: 1 box of 1 piece

Specifications

Input
8 separate 75 Ω F-connectors
FM Frequency 76-108 MHz
Signal level See figure 1
Sensitivity See figure 1
THD+N See figure 1
Selectivity, adjacent channel typical 50 dB
Supported de-emphasis 50 µs
RDS support on request
DAB/DAB+ Frequency 168-240 MHz
Signal level See figure 1
Sensitivity See figure 1
Selectivity, adjacent channel typical 46 dB
Output
IP 10/100/1000 Mbit RJ45 connector
UDP and RTP
Analog 3.5 mm phono jack (TRRS connector with left channel on tip, right channel on ring 1. Ring 2 and sleeve connected to ground).
Accepted loads: 16 Ω-10 k Ω
Voltage: Adjustable, nominal 0.95 VP-P*
Miscellaneous
Mounting 19" rack
Mechanical dimensions 483 x 44 x 166/184 mm **
Weight 1,90 kg
Operating temperature 0-40 °C
Operating humidity <95%, non-condensing
Packaged dimensions 510 x 95 x 340 mm
Packaged weight 2,40 kg
Encoding
Audio coder MPEG-1, layer II stereo at 192 kbit/s
Audio sample rates 48 kHz
Packaged into an MPEG transport stream
Management
Web UI via the 10/100/1000 Mbit RJ45 connector
Software upgradeable via the web UI
Power Supply
Connector IEC-60320 C14
Voltage 85-264 VAC 50/60 Hz
Consumption < 12 W

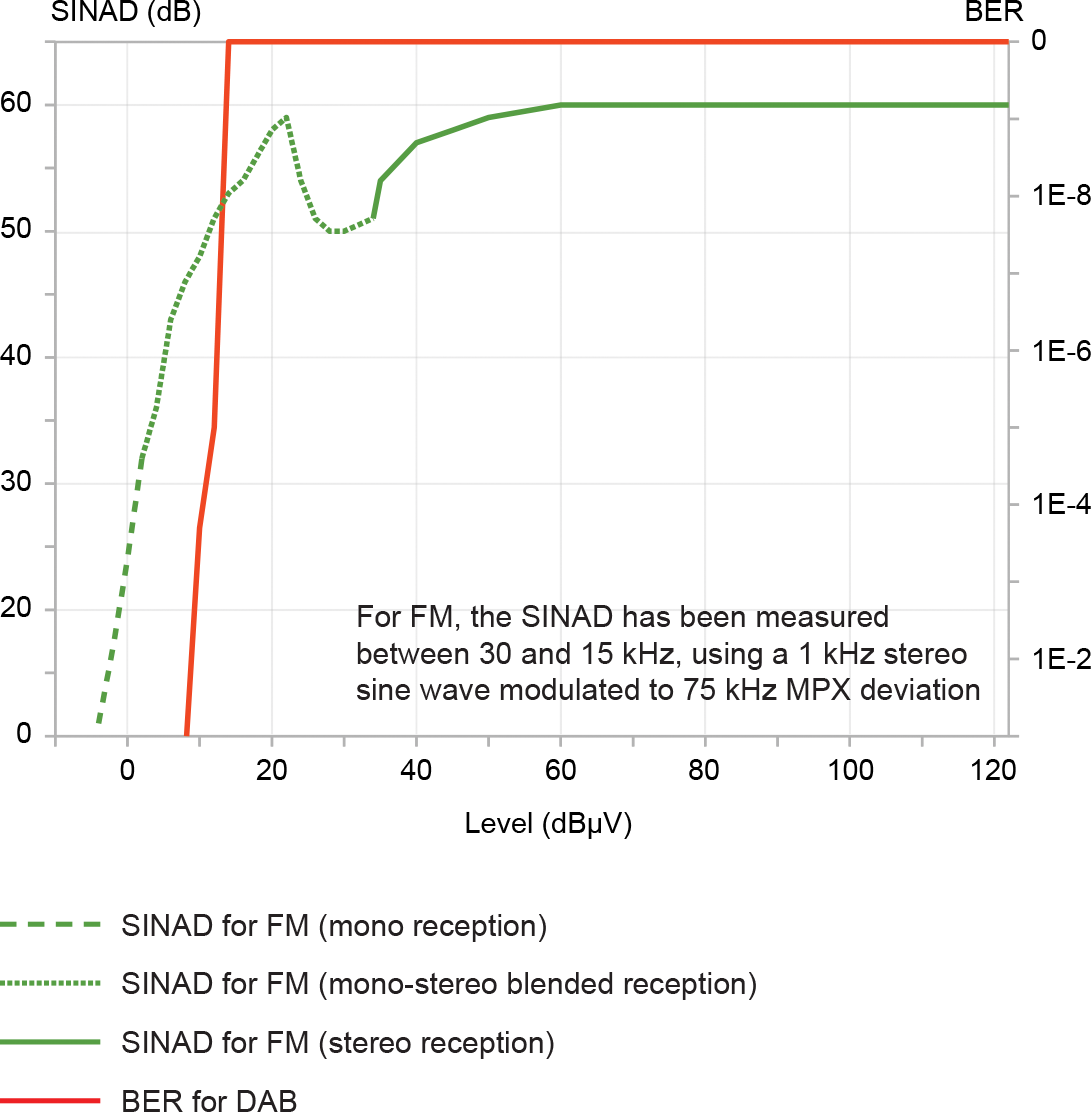

Typical SINAD and BER vs Level (Figure 1)
Figure 1
* See software manual for more information
** Excluding/including connectors
