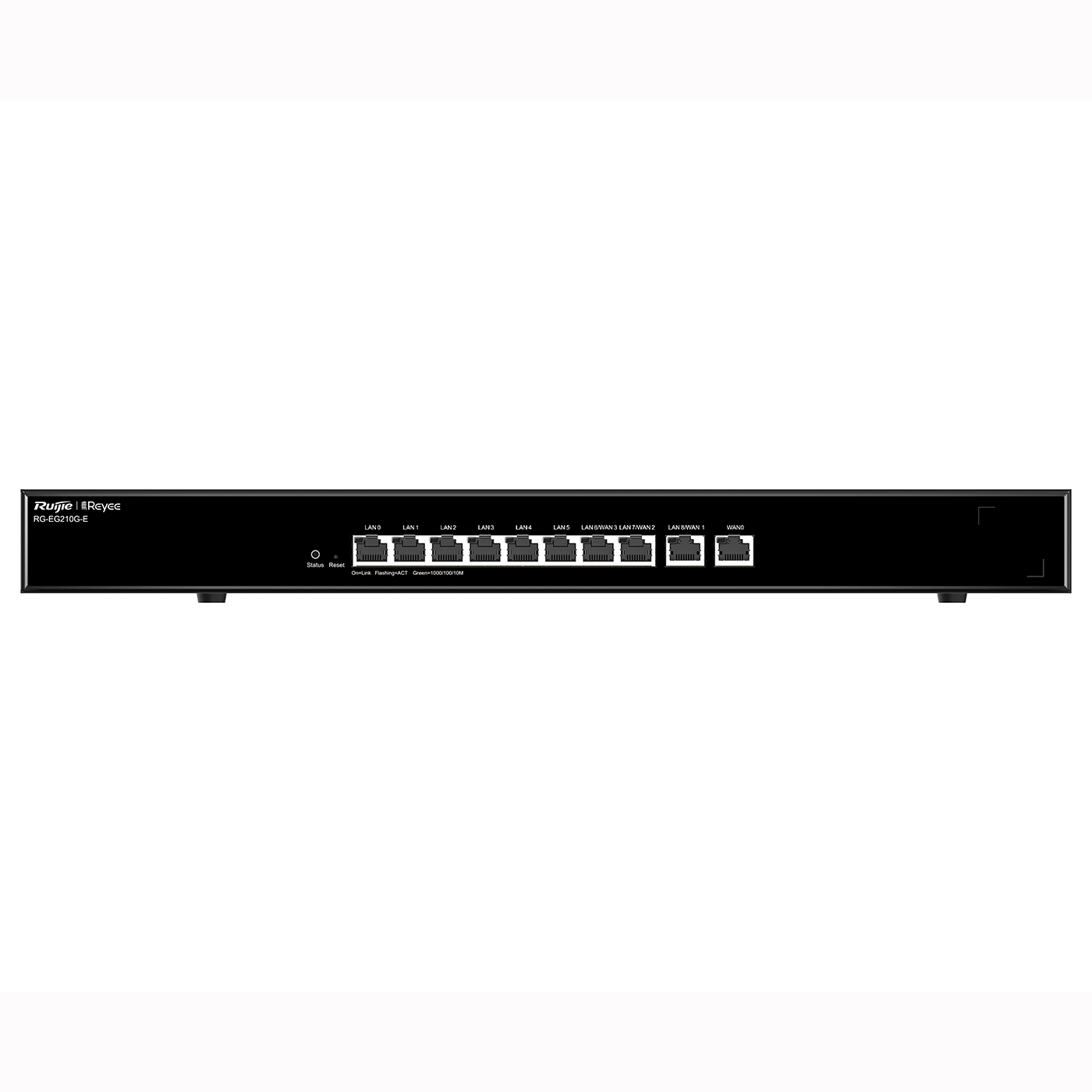

Front View
Rear View
10 Port Cloud Managed Router, 10 x Gigabit with up to 4 WAN
RG-EG210G-E
Former Part No. 57MM-MG03
Discontinued Product
Product Summary
The RG-EG210G-E is a 10 port Multi-WAN cloud-managed router with 8 x GbE Base-T ports. The router features one fixed WAN and six fixed LAN ports with three ports switchable. The RG-EG210G-E supports up to 200 concurrent client connections and supports WAN load balancing for increased input bandwidth (maximum 1 Gbps throughput) and redundancy. The RG-EG210G-E also supports Access point management for up to 150 APs.
View More Discontinued
3-Year Manufacturer’s Warranty
For full terms & conditions, please see – Ruijie Warranty T&Cs.
Features and Benefits
- 10 port WAN/LAN cloud-managed router with port load balancing for maximum throughput with built-in access point controller for up to 150 APs
- Supports up to 200 concurrent clients with behaviour management and flow control policies
- Free cloud management for monitoring and setup with simple operation and maintenance on the Ruijie Cloud App
- Throughput - 1 Gbps with smart IP-based Automatic Bandwidth Assignment
- Supports WAN load balancing and WAN port failover
- VPN Server and Client support, IPsec, L2TP, PPTP, OpenVPN
Specifications
| Basic Specifications | |
|---|---|
| Fixed WAN Port | 1 10/100/1000M Base-T ports |
| Fixed LAN Port(s) | 9 10/100/1000M Base-T ports |
| LAN/WAN Switchable Port(s) | 3 10/100/1000M Base-T ports |
| RAM | 256 MB |
| Flash | 16 MB |
| Recommended Clients | 200 |
| Recommended Bandwidth |
1000 Mbps asymmetric bandwidth (flow control disabled) 1000 Mbps asymmetric bandwidth (flow control enabled) |
| Local Power Supply | Support 220V AC local power supply |
| Power Consumption | <15 W |
| Basic Network Features | |
| Network Access | PPPoE dial-up DHCP client Static IP Automatic identification of access methods Automatic avoidance of WAN port address conflicts MAC cloning Obtaining account passwords from existing routers |
| Routing | Static routing Policy-based routing Carrier address routing Active/standby mode Load balancing based on source address Flow-based load balancing Port-based weighted load balancing of data streams |
| Hardware specifications | |
| Security | ACL IP-MAC binding MAC address filtering dynamic ARP static ARP binding NAT NAPT port mapping |
| Other Protocols | DHCP Server DHCP Client DHCP Option43 / 138 DNS Client DNS Server DNS Proxy NTP DDNS |
| Gateway | |
| Application Recognition | Built-in self-developed application signature database to identify applications Automatic upgrade. Support free upgrades |
| Flow Control | Support custom flow control policies IP-based automatic bandwidth assignment Application-based automatic bandwidth assignment. |
| Traffic Audit | Real-time traffic audit IP traffic visualization |
| Behavior Management | Time-based and IP policy-based access control website filtering App Control User Management. |
| VPN | IPsec VPN (8 tunnels) L2TP(8 tunnels) PPTP(8 tunnels) Open VPN(16 tunnels) |
| Marketing Authentication | WiFiDog (SMS authentication and one-click authentication) |
| Local Authentication | Password authentication QR code authentication voucher authentication |
| Wireless Management | |
| Management Capacity | In AC mode,the maximum management capacity is 500 In gateway mode, the maximum management capacity is 150 |
| AP Management | Support multi-SSID configuration SSID hiding channel setting power setting AP wired port setting AP online upgrade STA quantity setting STA blacklist and whitelist |
| Roaming | Support local forwarding roaming Layer 2 roaming Layer 3 roaming between APs viewing of STA roaming track |
| Switch management | |
| Management Capacity | Maximum manageable cloud managed switches: 128 |
| Port Management | Loop protection port mirroring port isolation port configuration PoE configuration port limit storm control static MAC MAC search |
| Status Display | Port statistics monitoring information cable detection VLAN configuration MAC list |
| Upgrade Management | Per-device upgrade Batch upgrade |
| Value Addeed Features | |
| Featured Solutions | Single-cable IPTV solution port service VLAN and network segment isolation solution smart fault diagnosis solution intranet penetration solution auto-networking solution |
| Management | eWeb and Ruijie Cloud |
| Physical Specifications | |
| Dimensions | 440 mm × 43.6 mm × 200 mm |
| Weight | 2.35 kg |
| Temperature | Operating temperature: 0 ~ 40°C Storage temperature: -10°C ~ 70°C |
| Humidity | Operating humidity: 10% ~ 90% (non-condensing) Storage humidity: 5% ~ 95% (noncondensing) |
Downloads
Product Image Product Image (Back) Brochure Full Product CatalogueView and download User Documents and Manuals directly from Reyee under the 'Resources' tab.
