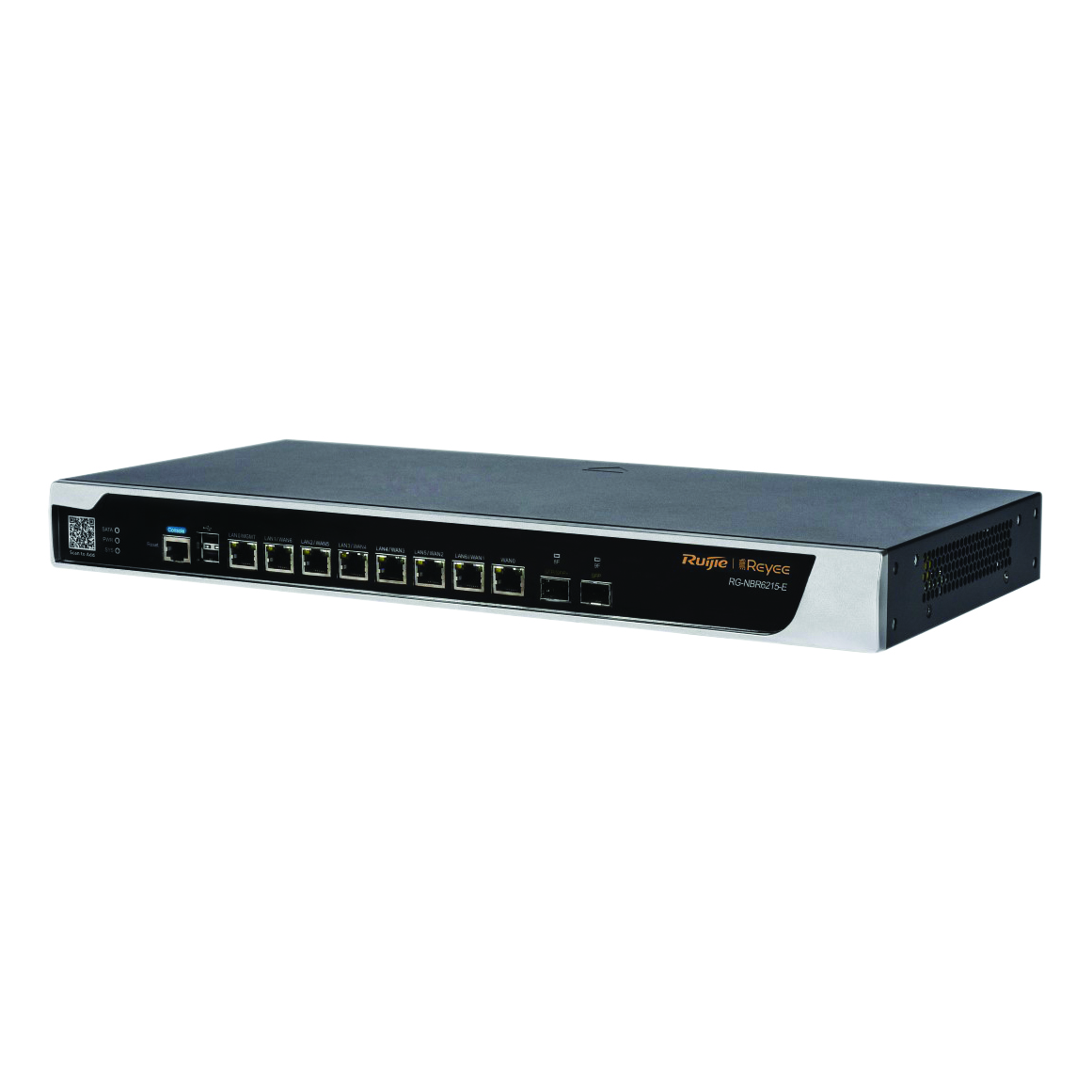

Front View

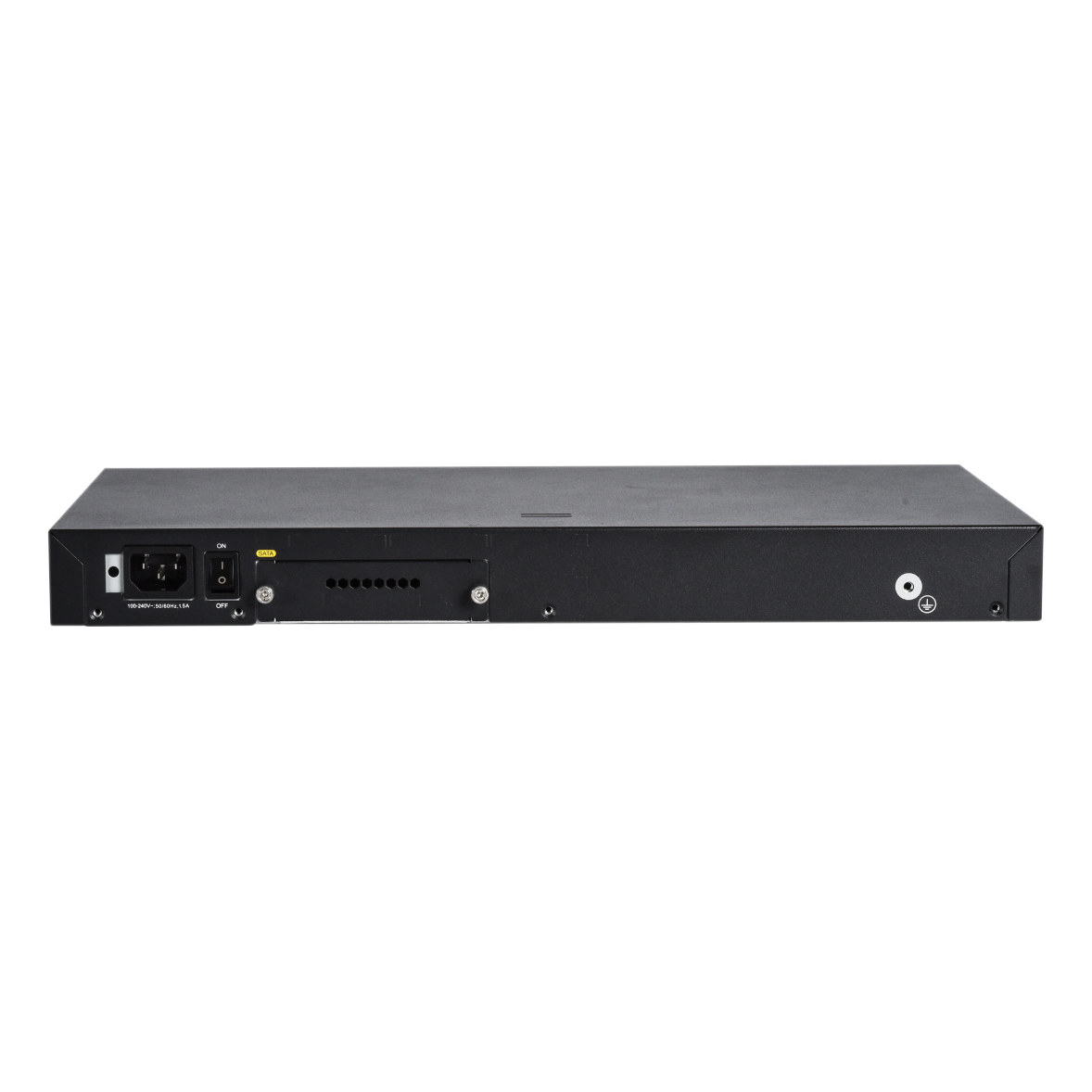

Rear View
10 Port High Performance Cloud Managed Router, 8 x Gigabit with 1 x 10Gb SFP+ and 1 x 1Gb SFP Base-X Ports
RG-NBR6215-E
Former Part No. 57MM-MG05
Discontinued Product
Product Summary
The RG-NBR6215-E is a 10 port multi-WAN high-performance cloud-managed router with 8 x GbE Base-T ports, 1 x 10Gb SFP+ and 1 x GbE SFP Base-X ports. The router features one fixed WAN and one fixed LAN port with eight ports switchable. The RG-NBR6215-E supports up to 1500 concurrent client connections and supports WAN bonding for increased input bandwidth (maximum 2.5 Gbps throughput) and redundancy.
View More Discontinued
3-Year Manufacturer’s Warranty
For full terms & conditions, please see – Ruijie Warranty T&Cs.
Features and Benefits
- 10 port WAN/LAN high-performance cloud-managed router with port load balancing for maximum throughput
- Supports up to 1500 concurrent clients with behaviour management and flow control policies
- Free cloud management for monitoring and setup with simple operation and maintenance on the Ruijie Cloud App
- Throughput - 2.5 Gbps with smart IP-based automatic bandwidth assignment
- Supports WAN load balancing and WAN port failover
- VPN server and client support, IPsec, L2TP, PPTP
Specifications
| Hardware Specifications | |
|---|---|
| Basic Specifications | |
| WAN Port | 1 10/100/1000M Base-T ports |
| LAN Port | 1 10/100/1000M Base-T ports |
| LAN/WAN Switchable Port(s) | 6 x 10/100/1000 Base-T
ports 1 x 1GBase-X SFP port 1 x 10GBase-X SFP+ port |
| Throughput | 2.5 Gbps |
| Concurrent Clients and IP Devices |
1500 |
| System Specifications | |
| CPU | 4 Cores, 1.2 GHz |
| SDRAM/RAM | 2 GB |
| Flash Memory | 8 GB EMMC + 8 MB SPIFLASH |
| Hard Disk Drive | 1 TB (Not delivered with the router, can be added) |
| Physical Specifications | |
| LED | 1 x System Status LED 1 x Power Status LED 1 x SATA LED |
| Button | 1 x Power button |
| Dimensions (W x D x H) | 440 mm x 43.6 mm x 200 mm (17.32 in. x 1.72 in. x 7.87 in., without rubber pads) |
| Mounting Method | Rack-mounted |
| Rack Size | 1U 19-inch Rackmounted |
| Fan | 2 |
| Environment | |
| Operating Temperature | 0ºC to 45ºC (32°F to 113°F) |
| Operating Humidity | 10% to 90% RH (noncondensing) |
| Performance | |
| PPPoE Server Accounts | 2000 |
| Software Specifications | |
| Basic Specifications | |
| Internet Access Mode | PPPoE Client DHCP Client Static IP |
| Access Mode Auto- Identification | Yes |
| WAN Address Collision Avoidance |
Yes |
| VLAN | Yes |
| IPv6 | Yes |
| SNMP | Yes |
| Network management | |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| LAN Port Link Aggregation |
Yes |
| Behavior Management | App Block (Time/IP-based Policy) Website Filtering Blacklist/Whitelist |
| Application Identification | Yes |
| Application Priority | Yes |
| Flow Control | User Flow Control Policies IP-based Automatic Bandwidth Assignment VPN Flow Control |
| System Log | Yes |
| Log Storage | Yes |
| Fault Diagnosis | Yes |
| Authentication | Portal Authentication Password Authentication Voucher Authentication SMS Authentication |
| VPN | |
| L2TP VPN | Yes |
| PPTP VPN | Yes |
| IPsec VPN | Yes |
| L2TP/PPTP Tunnels | 1000 |
| L2TP/IPsec VPN Performance |
1000 Mbps |
| Routing | |
| Static Routing | Yes |
| RIP/RIPng | Yes |
| OSPFv2 | Yes |
| OSPFv3 | Yes |
| Equal-Cost Multi-Path Routing | Yes |
| Policy-Based Routing | Yes |
| Active/Standby Switchover of Ports | Yes |
| WAN Load Balancing | Yes |
| Network | |
| PPPoE Client | Yes |
| PPPoE Server | Support (CLI) |
| DHCP Server | Yes |
| DHCP Snooping | Yes |
| DNS Client | Yes |
| DNS Server | Yes |
| DNS Proxy | Yes |
| FTP Client | Yes |
| FTP Server | Yes |
| TFTP Client | Yes |
| NTP Client | Yes |
| DDNS | Cloud DNS |
| NAT | Yes |
| SNMP | Yes |
| Ruijie Cloud | Yes |
| ACL | |
| ACL | Yes |
| Time-based Extended ACL | Yes |
| Security | |
| SYN Flood Attack Guard | Yes |
| UDP Flood Attack Guard | Yes |
| ICMP Flood Attack Guard | Yes |
| ICMP Redirection Attack Guard | Yes |
| ICMP Unreachable Packet Attack Guard | Yes |
| Fraggle Attack Guard | Yes |
| Overlength ICMP Packet Attack Prevention | Yes |
| IP-based Security Domain Division | Yes |
| Security Domain Division based on Physical Port (Sub Interface and Aggregation Port) and Dialup Port | Yes |
| Service and Support | |
| Cloud Management | Yes |
| App Management | Yes |
| App Upgrade | Yes |
| App Restart | Yes |
Downloads
Product Image Product Image (Back) Brochure Full Product CatalogueView and download User Documents and Manuals directly from Ruijie under the 'Resources' tab.
