09MM-FD02 - 694MHz Low Pass Filter
Front View
09MM-FD02 - 694MHz Low Pass Filter Back of Product Image
Rear View
09MM-FD02 - 694MHz Low Pass Filter Packaging Image

694MHz Low Pass Filter


Product Badge

Product Summary

The FD02 is a UHF/VHF low pass filter with a built-in 4G/5G filter. The filter is designed to pass a frequency range of 45-694MHz while rejecting out-of-band signals. The FD02 is perfect for use in all terrestrial transmission regions in Australia to ensure you only pass the required frequency and reject unwanted noise, helping result in a clearer picture and greater signal stability.
View More Filters and Diplexers

Features and Benefits

  • Wideband low pass filter for terrestrial TV
  • It helps eliminate 4G/5G cellular frequency interference
  • 45-694MHz frequency range
  • 'F' type fittings with full metal shielded housing for high-level screening
  • Through loss < 2.0dB typical
  • Weatherproof housing for external mounting

Find a Stockist Now

Pack Quantity

Inner: 1 hang sell box of 1 piece
Outer: 1 carton of 50 hang sell boxes (50 pieces)
Bulk: 1 carton of 2 cartons (100 pieces)

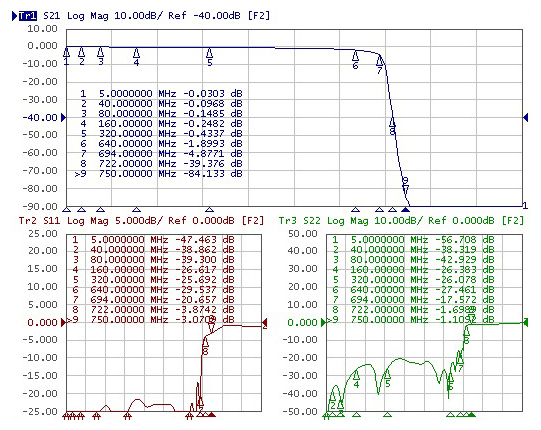

09MM-FD02 network analysis
