Band Pass Filter Channels (28-33) Block B


Product Badge

Product Summary

The FD03 is a UHF block B only low pass filter with a built-in 4G/5G filter. The filter is designed to pass a frequency range of 526-568MHz while rejecting other unwanted frequencies. The FD03 is intended for use in all block B transmission regions in Australia to ensure you only pass the required frequency and reject unwanted noise, helping result in a clearer picture and greater signal stability.
View More Filters and Diplexers

Features and Benefits

  • Only passes frequency range 526-568MHz (block B)
  • Eliminates unwanted channels at a lower frequency to allocate correct logical channel numbers
  • It helps eliminate 4G/5G cellular frequency interference.
  • 'F' type fittings with full metal shielded housing for high-level screening.
  • Through loss < 4.0dB typical
  • Weatherproof housing for external mounting

Find a Stockist Now

Pack Quantity

Inner: 1 hang sell box of 1 piece
Outer: 1 carton of 50 hang sell boxes (50 pieces)
Bulk: 1 carton of 2 cartons (100 pieces)

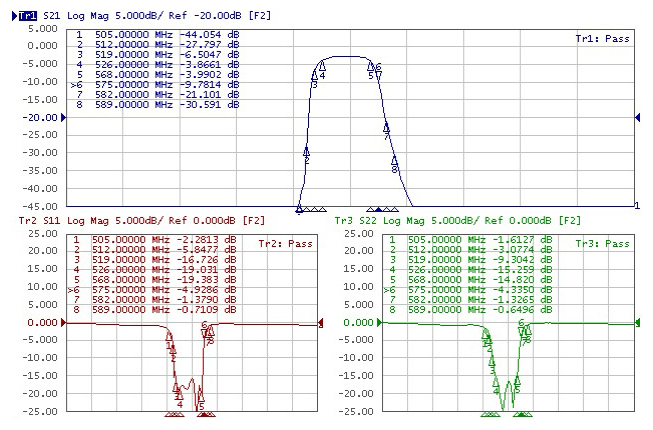

09MM-FD02 network analysis
