Band Pass Filter Channels (40-51) Block D and E

09MM-FD06

Product Badge

Product Summary

The FD06 is a combined UHF Block D and E low pass filter with a built-in 4G/5G filter. The filter is designed to pass a frequency range of 610-694MHz while rejecting other unwanted frequencies. The FD06 is intended for use in combined Block D & E transmission regions in Australia, such as the Gold Coast in QLD and Central Coast in NSW, where a combination of regional and capital channels are broadcast. The FD06 ensures you only pass the required frequency and reject unwanted noise, helping result in a clearer picture and greater signal stability.
View More Filters and Diplexers

Features and Benefits

  • Only passes frequency range 610-694MHz (block D and E - Gold Coast and Central Coast)
  • Helps eliminate unwanted frequencies to allocate correct logical channel numbers
  • Filters out 4G/5G cellular frequencies to help eliminate interference
  • 'F' type fittings with full metal shielded housing for high-level screening.
  • Through loss < 4.0dB typical
  • Weatherproof housing for external mounting

Find a Stockist Now


Pack Quantity

Inner: 1 hang sell box of 1 piece
Outer: 1 carton of 50 hang sell boxes (50 pieces)
Bulk: 1 carton of 2 cartons (100 pieces)

Specifications

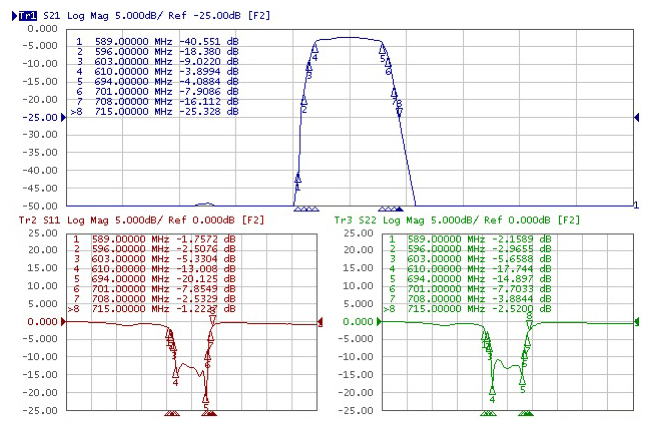

09MM-FD02 network analysis
