VHF/UHF Diplexing Filter with Input Switch

09MM-FD09

Product Badge

Product Summary

The FD09 is a UHF/VHF filter diplexer with a built-in 4G/5G filter. The filter can be used as a diplexer to combine separate UHF and VHF antennas or simply as a filter to cut unwanted frequencies. The VHF port passes the frequency range of 174-230MHz, while the UHF port passes 520-694MHz. The FD09 is perfect for use in VHF only transmission regions to ensure you only pass the required frequency and reject unwanted noise, helping result in a clearer picture and greater signal stability.
View More Filters and Diplexers

Features and Benefits

  • VHF/UHF diplexing filter
  • VHF frequency range: 174-230MHz for Block A pass
  • UHF frequency range: 520-694MHz
  • 'F' type fittings with full metal shielded housing for high-level screening.
  • Weatherproof housing for external mounting
  • It helps eliminate 4G/5G cellular frequency interference

Find a Stockist Now


Pack Quantity

Inner: 1 bag of 1 piece
Outer: 1 carton of 25 bags (25 pieces)
Bulk: 1 carton of 2 cartons (50 pieces)

Specifications

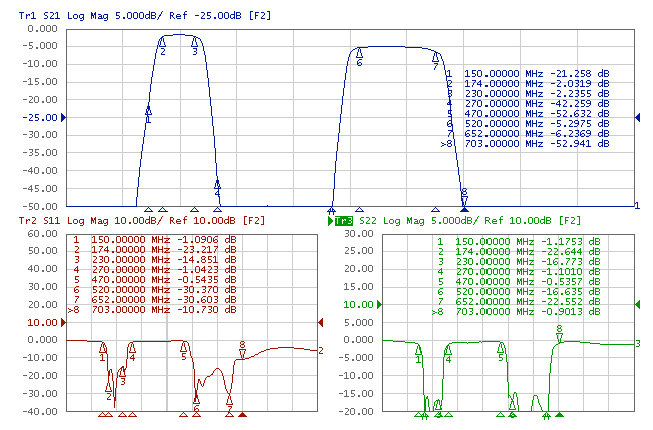

09MM-FD02 network analysis
