57MM-AP702 - Wi-Fi 7 Access Point BE3600 802.11be Dual-bands 3570 Mbps

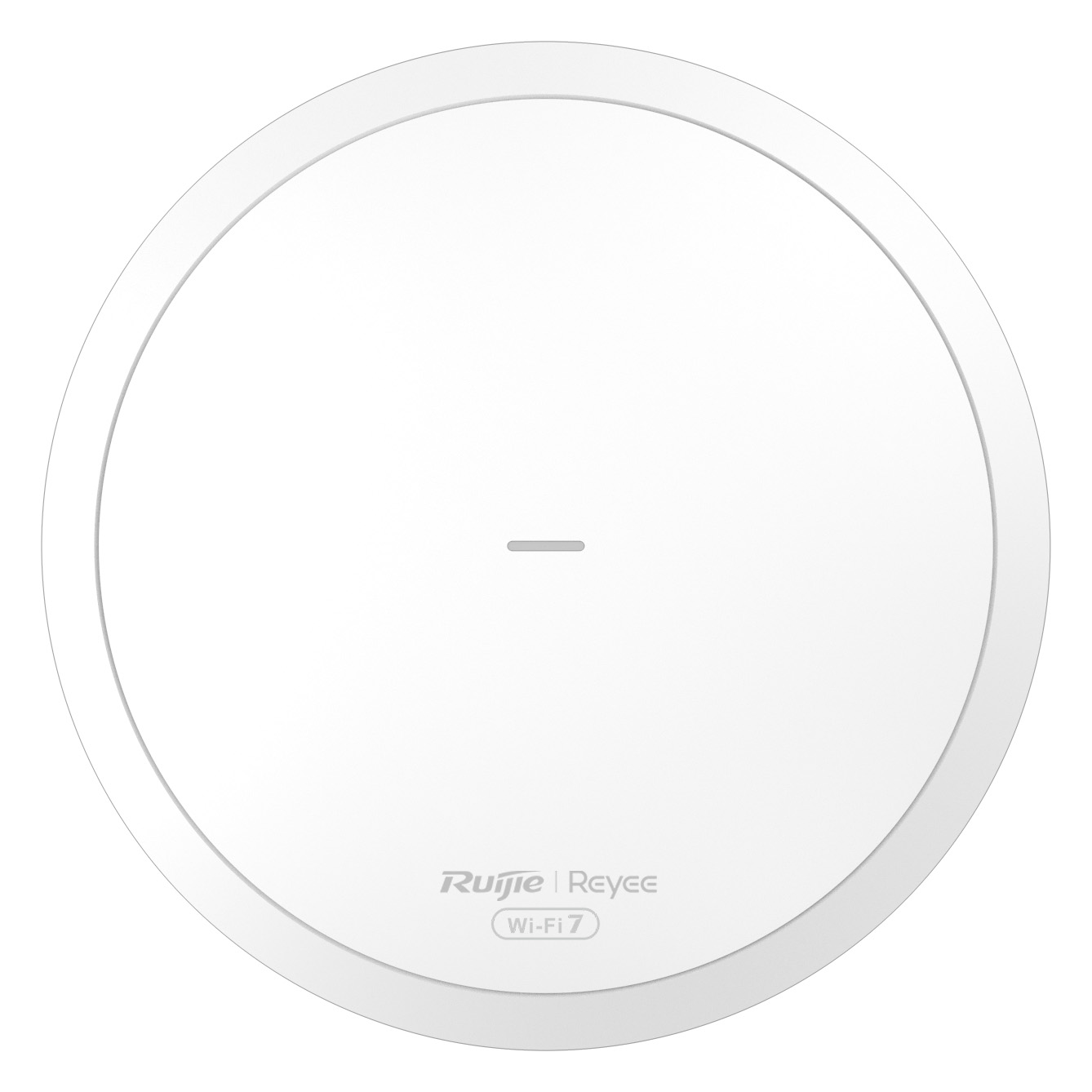

Front View

Wi-Fi 7 Access Point BE3600 802.11be Dual-bands 3570 Mbps

57MM-AP702

Reyee No. RG-RAP72

Product Summary

The 57MM-AP702 is a cost-effective, next-generation Wi-Fi 7 ceiling-mount access point designed for high-performance coverage in large indoor areas. With its compact, circular design, it blends seamlessly into modern environments, making it ideal for homes, commercial networks, hotels, and other expansive indoor settings. Delivering multi-gigabit, bidirectional Wi-Fi, the AP702 ensures fast and reliable connectivity throughout.
View More Networking and Data


3-Year Manufacturer’s Warranty

For full terms & conditions, please see – Ruijie Warranty T&Cs.

Features and Benefits

  • Wi-Fi 7 (802.11be) supporting speeds up to 3570 Mbps (Concurrent, high-speed wireless access of 688 Mbps at 2.4GHz and 2882 Mbps at 5GHz)
  • Superior streaming with Wi-Fi 7's exclusive MLO (Multi-Link Operation) feature
  • Compliant with 802.11a/b/g/n/ac/ax/be Wi-Fi protocols
  • Single LAN Ethernet port supporting multi-gigabit Ethernet (2.5GE) to break through the transmission performance bottleneck.
  • Ideal for use in commercial spaces, hotels, car parks, schools, and other public areas.
  • Lifetime free Ruijie Cloud management: Remote fault alarm, one-click optimisation and maintenance on Ruijie Cloud App

Where to Buy

Specifications

Hardware Specifications
Wi-Fi Protocols 5 GHz Wi-Fi 4: IEEE 802.11a/n
Wi-Fi 5: IEEE 802.11ac Wave2
Wi-Fi 6: IEEE 802.11ax
Wi-Fi 7: IEEE 802.11be
2.4 GHz Wi-Fi 4: IEEE 802.11b/g/n
Wi-Fi 6: IEEE 802.11ax
Wi-Fi 7: IEEE 802.11be
Operating Frequency Bands
(country-specific restrictions apply)
5 GHz 5.150 GHz to 5.350 GHz,
5.470 GHz to 5.725 GHz,
5.725 GHz to 5.850 GHz
2.4 GHz 2.400 GHz to 2.4835 GHz
Spatial Streams 5 GHz 2 spatial streams, 2x2 MIMO
2.4 GHz 2 spatial streams, 2x2 MIMO
Antenna Omni-directional Antenna Yes
5 GHz Antenna Gain 4.44 dBi
2.4 GHz Antenna Gain 3.23 dBi
Channel Width 5 GHz Auto/20/40/80/160 MHz
2.4 GHz Auto/20/40 MHz
Data Rate Max. Throughput 3570 Mbps
5 GHz 2882 Mbps
2.4 GHz 688 Mbps
Modulation Modulation OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, and 64-QAM @ 48/54 Mbps
DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps
MIMO–OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, and 4096-QAM
OFDMA
Dimensions (Ø x H) Dimensions (excluding mounting kits) φ195 mm × 41 mm (7.68 in. × 1.61 in.) (excluding the mounting bracket)
Max. Transmit Power 5 GHz (per chain) Combined power: 25.7 dBm
(single-stream power: 21 dBm)
Note: The transmit power varies according to regulations in different countries and regions.
2.4 GHz (per chain) Combined power: 25 dBm
(single-stream power: 22 dBm)
Note: The transmit power varies according to regulations in different countries and regions.
Standard Format Frequency bands and maximum Effective Isotropic Radiated Power (EIRP):
Note: Country specific restrictions apply.

European Union & United Kingdom:
2400–2483.5 MHz, EIRP ≤ 20 dBm
5150–5350 MHz, EIRP ≤ 23 dBm
5470–5725 MHz, EIRP ≤ 30 dBm

Myanmar:
2400–2483.5 MHz, EIRP ≤ 23 dBm
5725–5825 MHz, EIRP ≤ 30 dBm

Thailand:
2400–2483.5 MHz, EIRP ≤ 20 dBm
5150–5350 MHz, EIRP ≤ 23 dBm
5470–5725 MHz, EIRP ≤ 30 dBm
5725–5825 MHz, EIRP ≤ 30 dBm

Indonesia:
2400–2483.5 MHz, EIRP ≤ 27 dBm
5150–5350 MHz, EIRP ≤ 23 dBm
5725–5825 MHz, EIRP ≤ 30 dBm

Egypt:
2400–2483.5 MHz, EIRP ≤ 20 dBm
5150–5350 MHz, EIRP ≤ 23 dBm
Receiver Sensitivity Receiver Sensitivity 11b: ~91 dBm (1 Mbps), ~88 dBm (5.5 Mbps), ~85 dBm (11 Mbps)
11a/g: ~89 dBm (6 Mbps), ~80 dBm (24 Mbps), ~76 dBm (36 Mbps), ~71 dBm (54 Mbps)
11n: ~83 dBm (MCS0), ~68 dBm (MCS7), ~83 dBm (MCS8), ~65 dBm (MCS15)
11ac: 20 MHz: ~83 dBm (MCS0), ~57 dBm (MCS9)
11ac: 40 MHz: ~79 dBm (MCS0), ~57 dBm (MCS9)
11ac: 80 MHz: ~76 dBm (MCS0), ~51 dBm (MCS9)
11ac: 160 MHz: ~76 dBm (MCS0), ~51 dBm (MCS9)
11ax: 20 MHz: ~85 dBm (MCS0), ~58 dBm (MCS11)
11ax: 40 MHz: ~82 dBm (MCS0), ~54 dBm (MCS11)
11ax: 80 MHz: ~79 dBm (MCS0), ~52 dBm (MCS11)
11ax: 160 MHz: ~79 dBm (MCS0), ~50 dBm (MCS11)
11be: 20 MHz: ~85 dBm (MCS0), ~58 dBm (MCS13)
11be: 40 MHz: ~82 dBm (MCS0), ~54 dBm (MCS13)
11be: 80 MHz: ~79 dBm (MCS0), ~46 dBm (MCS13)
11be: 160 MHz: ~79 dBm (MCS0), ~44 dBm (MCS13)
Service Ports Number of 10/100/1000/2.5GBASE-T Ports 1
Power Supply DC (Local Power) Yes (12 V, 1.5 A)
DC Connector Dimensions Outer diameter: 5.5 mm (0.22 in.)
Inner diameter: 2.1 mm (0.08 in.)
Depth: 10 mm (0.39 in.)
802.3af (PoE) Yes
802.3at (PoE+) Yes
PoE Out Max. PoE Wattage by PSE No
Power Consumption Power Consumption ≤ 14 W
Power Adapter Power Adapter No
Button Button 1 × Factory reset
Status LED Status LED 1 × System LED indicator (blue)
Environment Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature −40°C to +70°C (−40°F to +158°F)
Operating Humidity 5% RH to 95% RH (non-condensing)
Storage Humidity 5% RH to 95% RH (non-condensing)
Mounting Ceiling-mount Yes
Wall-mount Yes
Pole-mount No
Regulatory Compliance Health EN IEC 62311
Spectrum EN 300 328
EN 301 893
EN 300 440
Weather Resistance IP Rating IP41
Lightning Protection/Surge ±2 kV
Weight Weight (excluding mounting kits) ≤ 0.6 kg (1.32 lbs.)
Software Specifications
Operating Mode (AP Mode and Router Mode) Router Mode Yes
AP Mode Yes
WLAN Recommended Number of Associated Clients BW160 11BE/AX: 16 (2.4 GHz) + 84 (5 GHz) = 100
BW80 11AX: 16 (2.4 GHz) + 52 (5 GHz) = 68
11AC: 12 (2.4 GHz) + 32 (5 GHz) = 44
Max. Number of SSIDs 8
Radio-based Client Limiting Yes
Layer 2 Client Isolation Yes
OFDMA Subcarrier Yes
OFDMA Yes
Wi-Fi Multimedia (WMM) Yes
802.1Q VLAN Yes
Multi-Link Operation (MLO) Yes
4K-QAM Yes
Same SSID for Different VLANs Yes
AP Load Balancing Yes
IGMP Snooping No
RF Beamforming Yes
Roaming 802.11k/v Yes
802.11r Yes
Layer 2 Roaming Yes
Layer 3 Roaming Yes
AI Roaming Yes
Security PSK Authentication Yes
Static Blocklist and Allowlist Yes
WPA (TKIP), WPA2 (AES), and WPA-PSK Yes
OWE (Enhanced Open)
WPA3-SAE
WPA2-PSK/WPA3-SAE
Yes
802.1X Yes
ARP Check No
IP Source Guard No
LLDP No
Static ARP Binding Yes
Proxy ARP No
Ping Yes
Traceroute Yes
Routing NAT Yes
Static IP Address Yes
DHCP Server Yes
PPPoE Client
PPPoE Dial-up
Yes
AP Mesh Mesh Management Yes
Reyee Mesh Yes
Standalone Portal Captive Portal Yes
Bandwidth Limiting Yes
Data Quota No
Management and Maintenance Default Access/Password Yes
Number of APs on a Self-Organizing Network 300
Unified Networking for All Network Equipment Yes
Local or Remote Management Through Ruijie Reyee App Yes
Local Management Through the Web Interface Yes
Remote Management Through Ruijie Cloud Yes
SNMP Yes
Platform Management Features Optimization of Channel, Transmit Power, and Management Frame Power Settings. Both Pre- and Pro-Optimization Settings are Displayed. Yes
Unified Configuration Through Ruijie Cloud Yes
Unified Monitoring Through Ruijie Cloud Yes
Others
Flash Flash 256 MB
Memory Memory 512 MB
Color of AP Enclosure Color of AP Enclosure Ruijie White W-1
