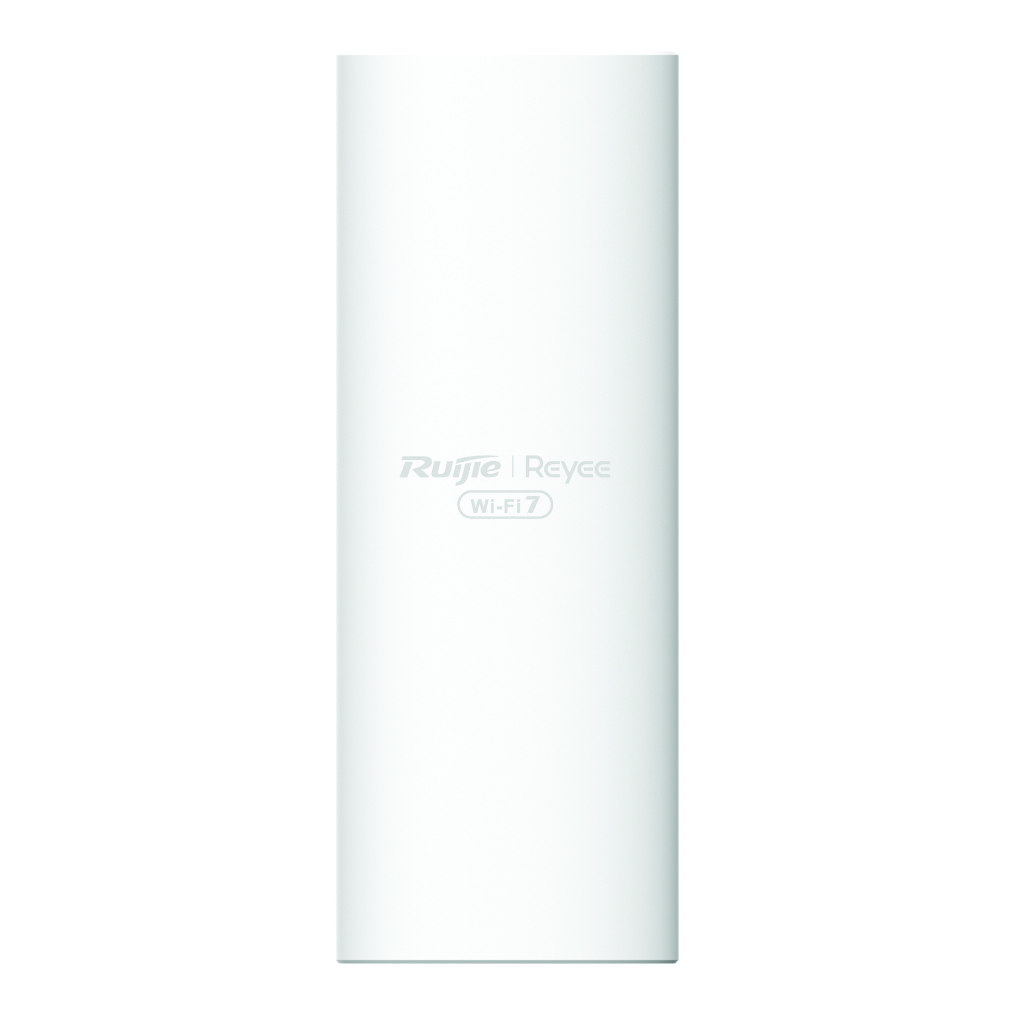

Front View

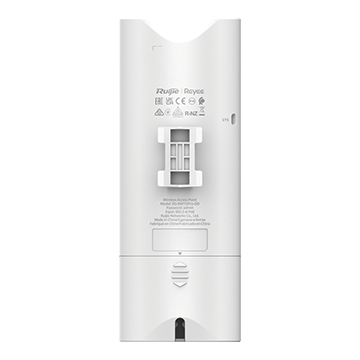

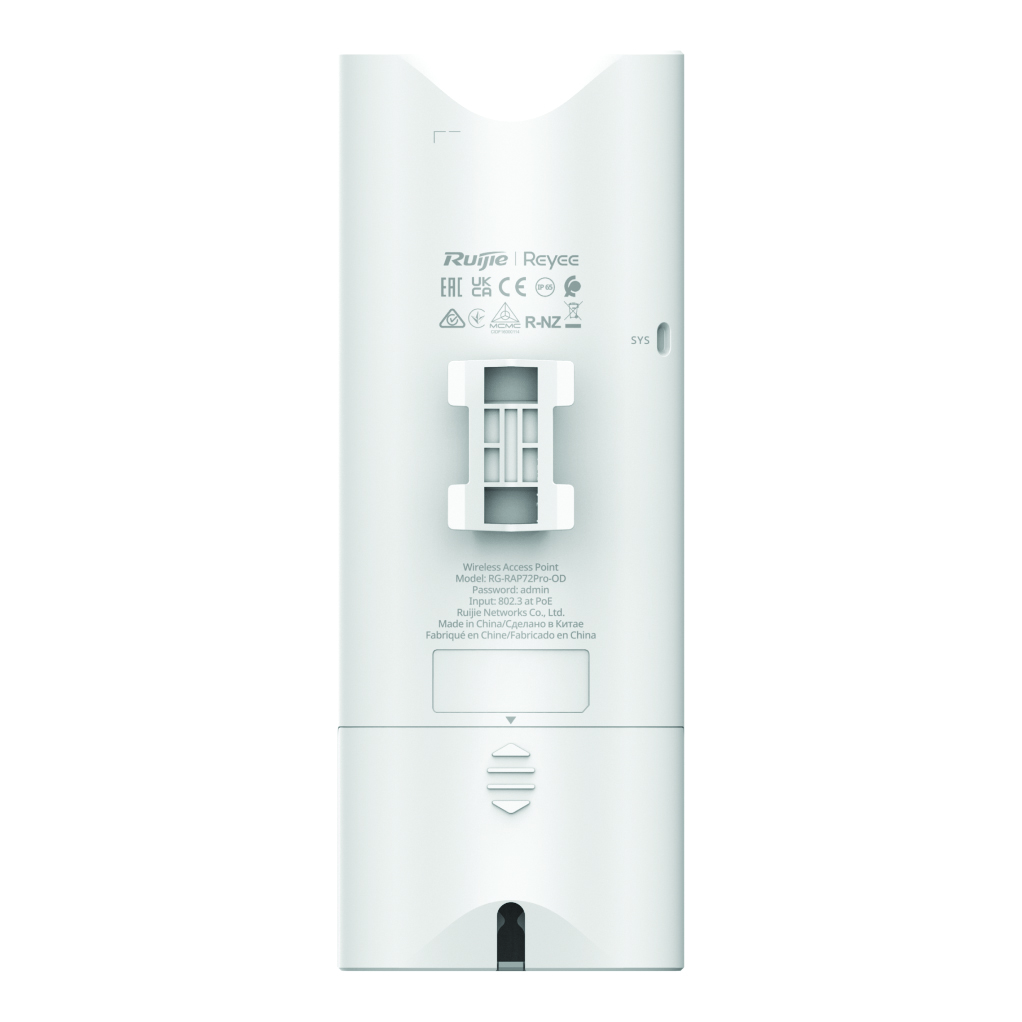

Rear View
Wi-Fi 7 Outdoor Omnidirectional Access Point BE5040 802.11be Dual-bands 5 Gbps
57MM-AP703
Reyee No. RG-RAP72Pro-OD
Product Summary
The 57MM-AP703 is a next-generation Wi-Fi 7 dual-band omnidirectional access point designed for both indoor and outdoor environments. Ideal for villas, homes, retail spaces, and various outdoor applications, it delivers high-speed connectivity to multiple users. Operating concurrently on 2.4GHz and 5GHz bands, the AP703 offers combined speeds of up to 5011 Mbps with dual-band MIMO support. It also features Reyee Mesh, a Standalone Portal, and AI Roaming for seamless network performance and simplified management.
View More Networking and Data
3-Year Manufacturer’s Warranty
For full terms & conditions, please see – Ruijie Warranty T&Cs.
Features and Benefits
- Wi-Fi 7 BE5040 mesh AP: A high-performance indoor/outdoor access point ideal for villas, retail stores, and commercial applications.
- Flexible installation: Supports wall or pole mounting and features an IP65-rated weatherproof design for reliable operation in any environment.
- Full protocol compatibility: Compliant with 802.11a/b/g/n/ac/ax/be standards for broad device support and future-ready connectivity.
- 2.5GE high-speed port: Equipped with a multi-gigabit 2.5GbE LAN port to eliminate transmission bottlenecks and maximise throughput.
- Versatile usage: Perfect for deployment in commercial buildings, hotels, car parks, schools, and more.
- Lifetime free cloud management: Includes Ruijie cloud access with remote fault alerts, one-click optimisation, and simple maintenance via the Ruijie cloud app.
Specifications
| Hardware Specifications | ||
|---|---|---|
| Wi-Fi Protocols | 5 GHz | Wi-Fi 4: IEEE 802.11a/n Wi-Fi 5: IEEE 802.11ac Wave2 Wi-Fi 6: IEEE 802.11ax Wi-Fi 7: IEEE 802.11be |
| 2.4 GHz | Wi-Fi 4: IEEE 802.11b/g/n Wi-Fi 6: IEEE 802.11ax Wi-Fi 7: IEEE 802.11be |
|
| Operating Frequency Bands (country-specific restrictions apply) |
5 GHz | 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz |
| 2.4 GHz | 2.400 GHz to 2.4835 GHz | |
| Spatial Streams | 5 GHz | 3 spatial streams, 3x3 MIMO |
| 2.4 GHz | 2 spatial streams, 2x2 MIMO | |
| Antenna | Omni-directional Antenna | Yes |
| 5 GHz Antenna Gain | 6.28 dBi | |
| 2.4 GHz Antenna Gain | 3.62 dBi | |
| Channel Width | 5 GHz | Auto/20 MHz/40 MHz/80 MHz/160 MHz |
| 2.4 GHz | Auto/20 MHz/40 MHz | |
| Data Rate | Max. Throughput | 5011 Mbps |
| 5 GHz | 4323 Mbps | |
| 2.4 GHz | 688 Mbps | |
| Max. Transmit Power | 5 GHz | ≤200 mW (23 dBm) |
| 2.4 GHz | ≤200 mW (23 dBm) | |
| Modulation | Modulation |
OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, and 64-QAM @ 48/54 Mbps DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, and 4096-QAM OFDMA |
| Max. Transmit Power | Standard format |
Frequency bands using and the max. EIRP: Note: Country-specific restrictions apply. European Union & United Kingdom: 2400–2483.5 MHz, EIRP ≤ 20 dBm 5470–5725 MHz, EIRP ≤ 30 dBm United States: 2400–2483.5 MHz, max. output power ≤ 30 dBm & EIRP ≤ 36 dBm 5150–5250 MHz, max. output power ≤ 30 dBm & EIRP ≤ 36 dBm 5250–5350 MHz, max. output power ≤ 24 dBm & EIRP ≤ 30 dBm 5470–5725 MHz, max. output power ≤ 24 dBm & EIRP ≤ 30 dBm 5725–5850 MHz, max. output power ≤ 30 dBm & EIRP ≤ 36 dBm Myanmar: 2400–2483.5 MHz, EIRP ≤ 23 dBm 5725–5825 MHz, EIRP ≤ 30 dBm Thailand: 2400–2483.5 MHz, EIRP ≤ 20 dBm 5470–5725 MHz, EIRP ≤ 30 dBm 5725–5825 MHz, EIRP ≤ 30 dBm Indonesia: 2400–2483.5 MHz, EIRP ≤ 36 dBm 5725–5825 MHz, EIRP ≤ 36 dBm Egypt: 2400–2483.5 MHz, EIRP ≤ 20 dBm 5150–5350 MHz, EIRP ≤ 23 dBm |
| Receiver Sensitivity | Receiver Sensitivity |
11b: -91 dBm (1Mbps), -88 dBm (5.5Mbps), -85 dBm (11Mbps) 11a/g: -89 dBm (6Mbps), -90 dBm (24Mbps), -76 dBm (36Mbps), -71 dBm (54Mbps) 11n: -83 dBm (MCS0), -65 dBm (MCS7), -83 dBm (MCS8), -65 dBm (MCS15) 11ac: 20 MHz: -83 dBm (MCS0), -57 dBm (MCS9) 11ac: 40 MHz: -80 dBm (MCS0), -54 dBm (MCS9) 11ac: 80 MHz: -76 dBm (MCS0), -51 dBm (MCS9) 11ac: 160 MHz: -76 dBm (MCS0), -50 dBm (MCS9) 11ax: 20 MHz: -85 dBm (MCS0), -60 dBm (MCS11) 11ax: 40 MHz: -82 dBm (MCS0), -58 dBm (MCS11) 11ax: 80 MHz: -79 dBm (MCS0), -56 dBm (MCS11) 11ax: 160 MHz: -79 dBm (MCS0), -55 dBm (MCS11) 11be: 20 MHz: -85 dBm (MCS0), -60 dBm (MCS13) 11be: 40 MHz: -82 dBm (MCS0), -58 dBm (MCS13) 11be: 80 MHz: -79 dBm (MCS0), -56 dBm (MCS13) 11be: 160 MHz: -79 dBm (MCS0), -54 dBm (MCS13) |
| Dimensions (W x D x H) | Dimensions (excluding mounting kits) | 90 mm x 46 mm x 239 mm (3.54 in. x 1.81 in. x 9.41 in.) |
| Weight | Weight (excluding mounting kits) | ≤ 0.7 kg (1.54 lbs.) |
| Service Ports | Number of 10/100/1000BASE-T Ports | 1 |
| Number of 10/100/1000/2500BASE-T Ports | 0 | |
| Number of 100/1000/2.5G/5G/10GBASE-T Ports | 0 | |
| Number of 1GE SFP Ports | 0 | |
| Power Supply | DC (Local Power) | No |
| DC Connector Dimensions | No | |
| 802.3af (PoE) | Yes (2.4 GHz: 1T1R; 5 GHz: 2T2R) | |
| 802.3at (PoE+) | Yes | |
| 802.3bt (PoE++) | N/A | |
| 48 V Passive PoE | N/A | |
| PoE Out | Max. PoE Wattage by PSE | No |
| Power Consumption | Power Consumption | < 21 W |
| Power Adapter | Power Adapter | No |
| Button | Button | 1 × Reset button |
| Status LED | Status LED | 1 × system status LED (blue) |
| Environment | Operating Temperature | −30°C to +65°C (−22°F to +149°F) |
| Storage Temperature | −40°C to +85°C (−40°F to +185°F) | |
| Operating Humidity | 0% RH to 100% RH (non-condensing) | |
| Storage Humidity | 0% RH to 100% RH (non-condensing) | |
| Mounting | Ceiling-mount | No |
| Wall-mount | Yes | |
| Pole-mount | Yes | |
| Compliance Standards | Health | EN IEC 62311:2020 |
| Spectrum |
EN 300 328 V2.2.2.2.2 EN 301 893 V2.1.1 EN 300 440 V2.2.1 Draft EN 303 687 V1.0.0 |
|
| Weatherproof | IP Rating | IP65 |
| Lightning Protection/Surge | ±4 kV | |
| Software Specifications | ||
| Operating Mode (AP Mode and Router Mode) | Router Mode | Yes |
| AP Mode | Yes | |
| WLAN | Recommended Number of Clients |
BW160 11be/ax: 16 (2.4 GHz) + 94 (5 GHz) = 110 BW80 11ax: 16 (2.4 GHz) + 64 (5 GHz) = 80 11ac: 8 (2.4 GHz) + 32 (5 GHz) = 40 |
| Max. Number of SSIDs | 8 | |
| Radio-based STA Limit | Yes | |
| Layer 2 Client Isolation | Yes | |
| OFDMA Subcarrier | Yes | |
| OFDMA | Yes | |
| Target Wake Time (TWT) | No | |
| Wi-Fi Multimedia (WMM) | Yes | |
| 802.1Q VLAN | Yes | |
| Multi-Link Operation (MLO) | Yes | |
| 4K-QAM | Yes | |
| Same SSID for Different VLANs | Yes | |
| Roaming | 802.11k/v | Yes |
| 802.11r | Yes | |
| Layer 2 Roaming | Yes | |
| Layer 3 Roaming | Yes | |
| AI Roaming | Yes | |
| Security | PSK Authentication | Yes |
| Static Blocklist and Allowlist | Yes | |
| WPA (TKIP), WPA2 (AES), and WPA-PSK | Yes | |
| OWE (Enhanced Open) WPA3-SAE WPA2-PSK/WPA3-SAE |
Yes | |
| 802.1X | Yes | |
| ARP Check | No | |
| IP Source Guard | No | |
| LLDP | No | |
| Static ARP Binding | Yes | |
| Proxy ARP | No | |
| Ping | Yes | |
| Traceroute | Yes | |
| Routing | NAT | Yes |
| Static IP Address | Yes | |
| PPPoE Client / PPPoE Dial-up | Yes | |
| DHCP Server | Yes | |
| AP Mesh | Mesh Management | Yes |
| Reyee Mesh | Yes | |
| Standalone Portal | Captive Portal | Yes |
| Bandwidth Limit | Yes | |
| Data Quota | No | |
| Management and Maintenance | Default Access / Password | Yes |
| No. of APs on a Self-Organizing Network | 300 | |
| Unified Networking for All Network Equipment | Yes | |
| Local or Remote Management via Ruijie Reyee App | Yes | |
| Local Management via the Web Interface | Yes | |
| Remote Management via Ruijie Cloud | Yes | |
| SNMP | Yes | |
| Platform Management Features | Optimization of Channel, Transmit Power, and Management Frame Power Settings. Both Pre- and Pro-Optimization Settings are Displayed. | Yes |
| Unified Configuration via Ruijie Cloud | Yes | |
| Unified Monitoring via Ruijie Cloud | Yes | |
| Others | ||
| Flash | Flash | 256 MB |
| Memory | Memory | 512 MB |
| Color of AP Enclosure | Color of AP Enclosure | Warm White |
