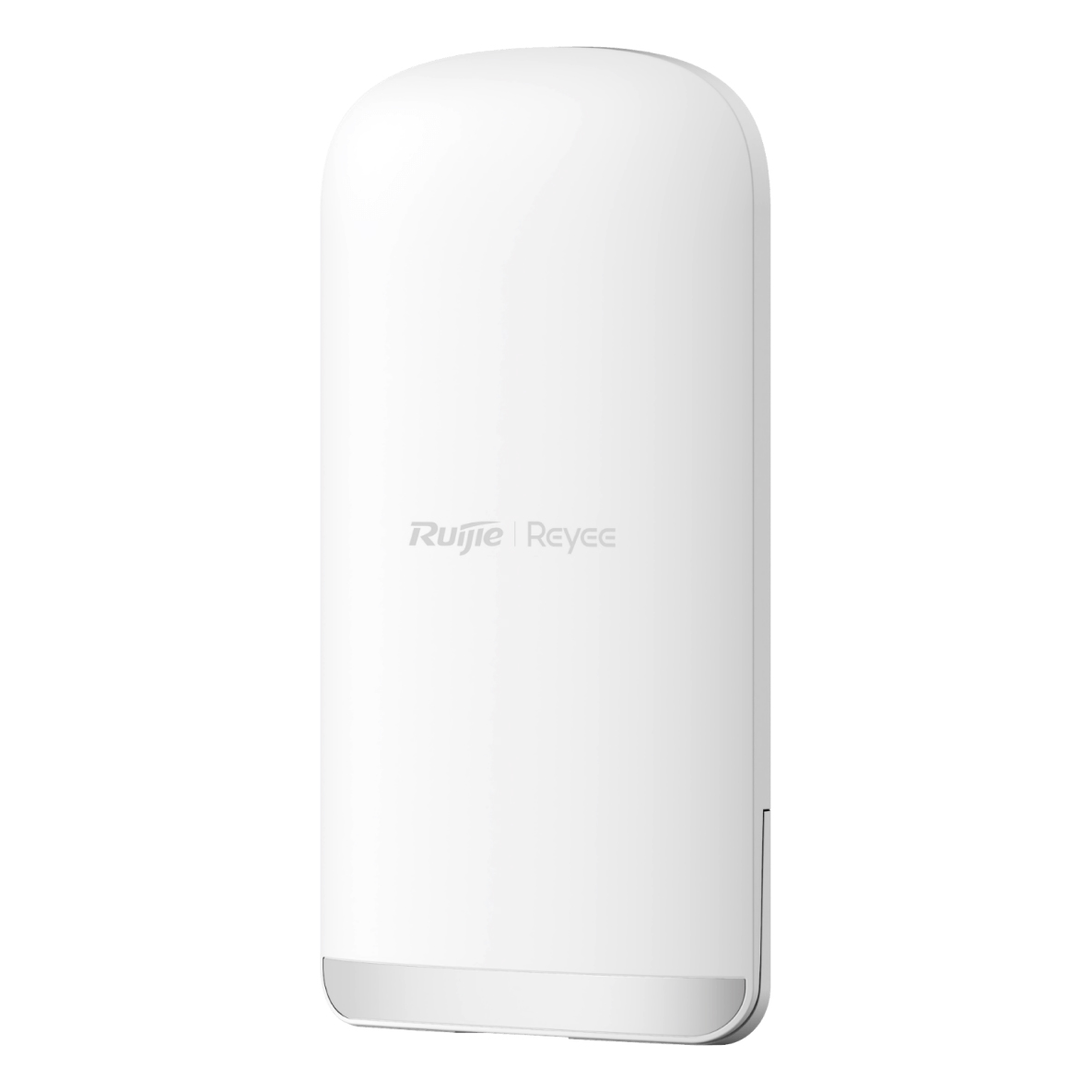

Front View

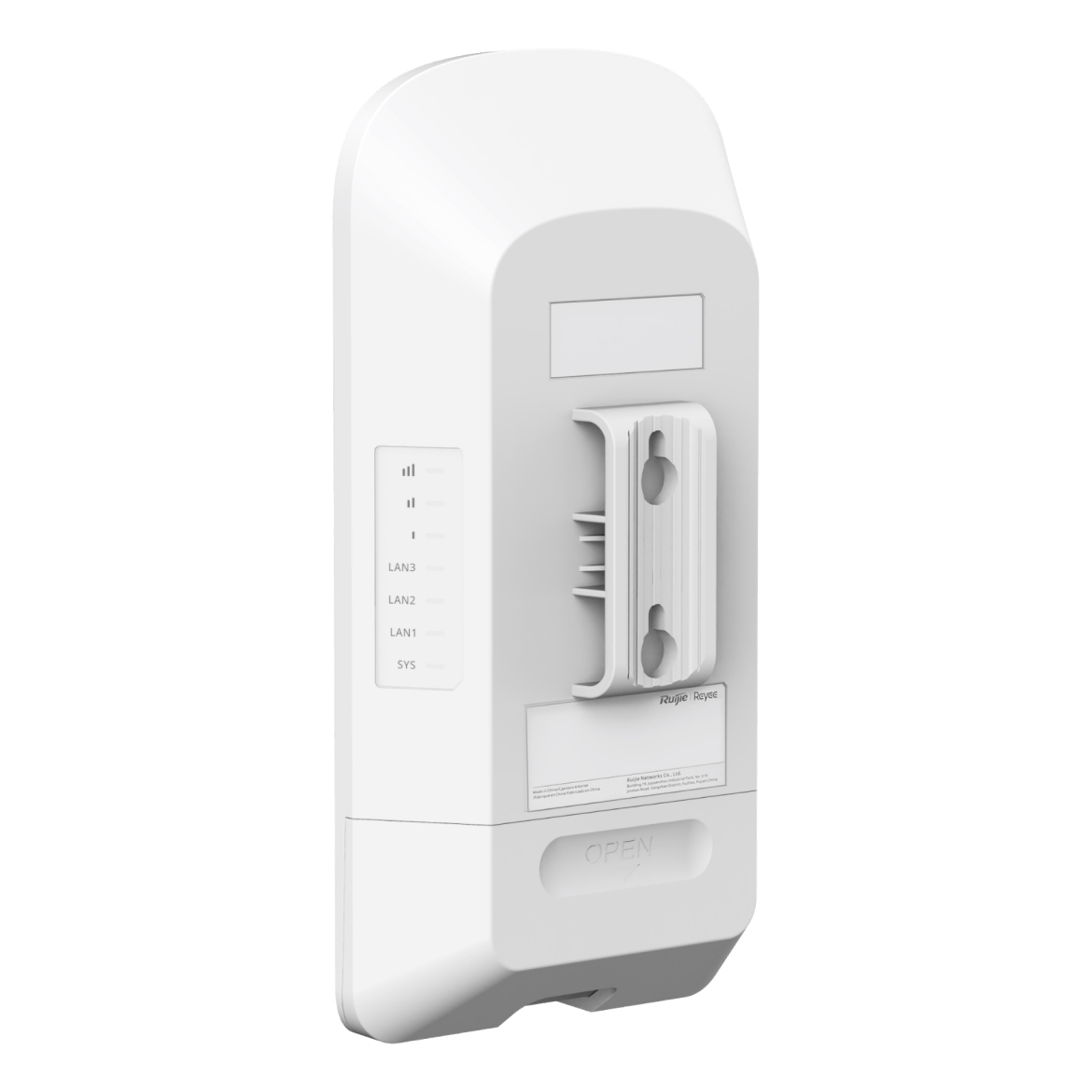

Rear View
13dBi 3km Wireless Network Bridge for PTP & PTMP (Single Unit)
57MM-WB06
Ruijie No. RG-EST330F-P
Product Summary
The WB06 is a 5 GHz, 13 dBi wireless network bridge with a range of up to 3 km. Supporting PoE 802.3af/at, 24V passive PoE, or 12V DC input, it offers flexible power options to suit various deployment scenarios. Equipped with 3 10/100 Fast Ethernet ports, with 2 ports supporting PoE 802.3af output, allowing you to power other devices like cameras, the WB06 simplifies connectivity. With a maximum wireless data rate of 867 Mbps, the WB06 ensures fast and stable connectivity for multiple clients simultaneously. It supports both PTP (Point-to-Point) and PTMP (Point-to-Multipoint) configurations, accommodating up to 5 clients. Perfect for connecting buildings, towns, farms, and mining sites, the WB06 enables both short- and medium-range wireless links without the need for costly backhaul infrastructure.
View More Networking and Data
Features and Benefits
- Wireless Network Bridge, 13 dBi, Horizontal 30°, Vertical 30° with up to 3 km range when used for PTP and PTMP links
- Flexible Powering Options: Supports 802.3af/at PoE, 24V passive PoE, or 12V DC input for versatile deployment. When powered via 802.3at or 24V passive PoE, the device offers two PoE output ports—ideal for directly powering CCTV cameras or other PoE devices.*
- It can be used with multiple CPE antennas when in PTMP solutions, WB06 (RG-EST330F-P) and WB05 (RG-AirMetro460G) can also be paired to BSA01 (RG-EST450G) as a CPE antenna.
- It supports Ruijie Reyee's self-organising network and is TDMA enabled for more consistent coverage and reduced link interference, with free cloud management for setup and remote monitoring.
- 3 Gigabit Ethernet ports for flexible connectivity and IP55 housing for ingress protection
- There is no need for expensive fibre backhauls with Ruijie's modern, reliable wireless technologies.
* Note: 1. PoE Out supported, with 24 V passive PoE or 802.3at power input. 2. PoE Out is not supported with 12 V DC or 802.3af power input. Maximum 15.4 W (PoE budget for two ports)
Specifications
| Hardware Specifications | |
|---|---|
| Radio Design | 5 GHz dual-stream 2.4 GHz single-stream |
| 2.4 GHz Band | Yes |
| 5 GHz Band | Yes |
| Protocol and Standard | 5 GHz: 802.11ac/n/a 2.4 GHz: 802.11b/g/n |
| Wi-Fi Standard | Wi-Fi 5 |
| Spatial Streams | 5 GHz dual-stream, 2x2 MIMO 2.4 GHz single-stream |
| 2.4 GHz Channel Width | Auto/20/40 MHz |
| 5 GHz Channel Width | Auto/20/40/80 MHz |
| Receiver Sensitivity |
11a: -89 dBm (6 Mbps), -80 dBm (24 Mbps), -76 dBm (36 Mbps), -71 dBm (54 Mbps); 11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65 dBm@MCS15; 11ac: -86 dBm (MCS0), -63 dBm (MCS9) |
| Nominal Receive Sensitivity @20 MHz Channel | -91 dBm (MCS0) to -57 dBm (MCS9) |
| Nominal Receive Sensitivity @40 MHz Channel | -83 dBm (MCS0) to -57 dBm (MCS9) |
| Nominal Receive Sensitivity @80 MHz Channel | -76 dBm (MCS0) to -51 dBm (MCS9) |
| Modulation Levels (Adaptive) | MCS0 (BPSK) to MCS9 (256QAM) |
| Wi-Fi Protocols (2.4 GHz) | Wi-Fi 4 |
| Wi-Fi Protocols (5 GHz) | Wi-Fi 5 (IEEE 802.11ac) |
| Wireless Data Rate | 1017 Mbps |
| Wireless Data Rate (2.4 GHz) | 150 Mbps |
| Wireless Data Rate (5 GHz) | 867 Mbps |
| Frequency Bands |
2.4 GHz: 802.11b/g/n: 2.4000 GHz to 2.483 GHz 5 GHz: 802.11a/n/ac: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz Note: Country-specific restrictions apply. |
| 2.4 GHz Max. Transmit Power | 20 dBm |
| 5 GHz Max. Transmit Power | 26 dBm |
| Surge Protection | Common mode: ±4 kV Differential mode: ±2 kV |
| Dimensions (W x D x H) | 198.8 mm × 102 mm × 53.4 mm (7.827 in. × 4.016 in. × 2.102 in.) (without bracket) |
| Weight | 0.37 kg (0.82 lbs.) |
| Number of Fixed LAN Ports | 3 |
| Max. LAN Port Rate | 100 Mbps |
| Number of 10/100BASE-T Ports | 3 |
| Reset | Yes |
| Status LED | Yes |
| Power Supply | 12V DC or 24 V passive PoE or 802.3af/at |
| Local Power Supply | Yes |
| PoE Out |
Yes Note: 1. PoE Out supported, with 24 V passive PoE or 802.3at power input; 2. PoE Out not supported, with 12 V DC or 802.3af power input. |
| PoE Power Budget | 15.4 W (PoE budget for two ports) |
| Antenna Type | Built-in antenna, horizontal 30°/vertical 30° |
| Hardware Button | 1 × reset button |
| DC Power Connector Size |
Inner Diameter: 2.10 mm ± 0.1 mm (0.083 in. ± 0.004 in.) Outer Diameter: 5.50 mm ± 0.1 mm (0.217 in. ± 0.004 in.) Depth: 10.0 mm ± 0.5 mm (0.394 in. ± 0.020 in.) |
| DC Voltage/Current | 12 V/1 A, 24 V/1.5 A |
| LEDs | 1 x system LED 3 x port LEDs 3 x signal strength LEDs |
| 2.4 GHz Antenna Gain | 2 dBi |
| 5 GHz Antenna Gain | 13 dBi |
| Power Consumption | < 9 W (Without PoE Out) <24.4W (With PoE Out) |
| IP Rating | IP55 |
| Color | Elegant white |
| Operating Temperature | -30°C to +55°C (-22°F to +149°F) (-40°C to +80°C [-40°F to +176°F] in publicity materials) |
| Storage Temperature | -40°C to +85°C (-22°F to +185°F) |
| Operating Humidity | 5% RH to 95% RH (non-condensing) |
| Storage Humidity | 5% RH to 95% RH (non-condensing) |
| MTBF | > 400000 hours |
| Working Distance | 3 km |
| Bridging Performance |
90 Mbps/0.5 km 80 Mbps/1 km (HT40) 60 Mbps/2 km (HT40) 40 Mbps/3 km (HT40) |
| RSSI (dBm) |
-54 dBm/0.5 km -64 dBm/1 km -71 dBm/2 km -75 dBm/3 km |
| Throughput & Camera Limits: 3 MP |
18/0.5 km 16/1 km 12/2 km 8/3 km |
| Throughput & Camera Limits: 4 to 5 MP |
12/0.5 km 10/1 km 8/2 km 5/3 km |
| Throughput & Camera Limits: 6 to 7 MP |
8/0.5 km 7/1 km 5/2 km 3/3 km |
| Throughput & Camera Limits: 7 to 8 MP |
5/0.5 km 5/1 km 2/2 km 1/3 km |
| Management Radio | 2.412 GHz ~ 2.472 GHz |
| Number of PtMP Links | 5 |
| ESD Protection | ESD tolerance: contact discharge=8 kV, air discharge=15 kV |
| Certification | CE |
| Software Features | |
| Operating Mode | BaseStation/CPE |
| TDMA | Fixed Mode/Flexible Mode |
| WLAN Security | WPA2-PSK |
| Management SSID | @Ruijie-bxxxx |
| Management SSID for Internet Access | Yes |
| SSID Hiding | Yes |
| Spectrum Scan | Yes |
| Antenna Alignment | Yes |
| One-Touch Pairing | Yes |
| WMM | Yes |
| Storm Control | Yes |
| VLAN Packet Transmit | Yes |
| DHCP Server | Yes |
| DHCP Client | Yes |
| Network Diagnosis | Ping/Traceroute/DNS Lookup |
| Time & Date | Yes |
| Firmware Upgrade | Yes |
| Backup/Restore | Yes |
| Cloud Management | Yes |
| Power Configuration | Yes |
| Country/Region Code | Yes |
| Remote Restart | Yes |
| SON (Self-organizing Networking with all Reyee Devices) | Yes |
| SNMP | No |
| Link Aggregation | No |
| Bridge Speed Test | Yes |
| Max. Number of Devices on a SON | 200 |
| Ping | Yes |
| Traceroute | Yes |
| AI Heatmap | Yes |
