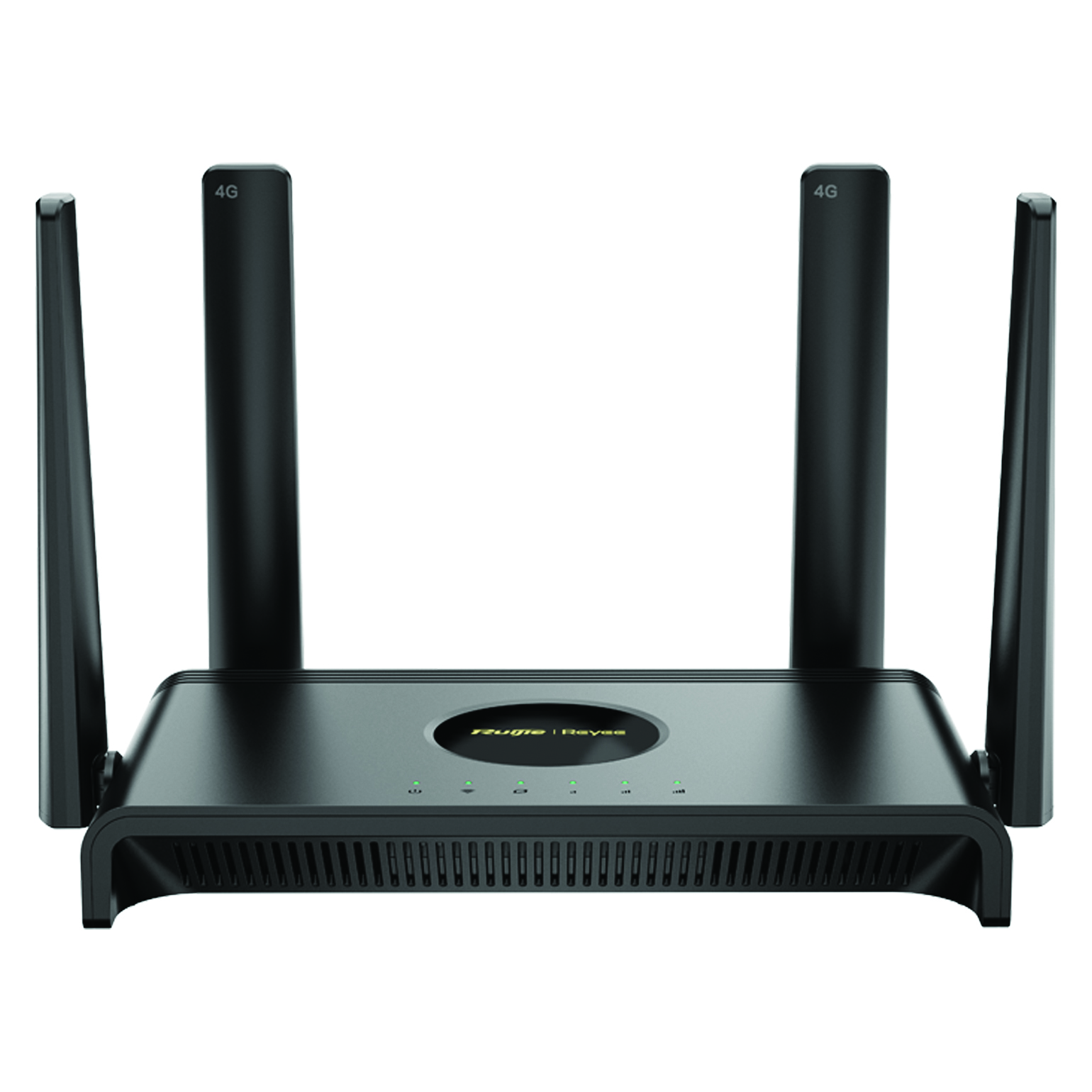

Front View

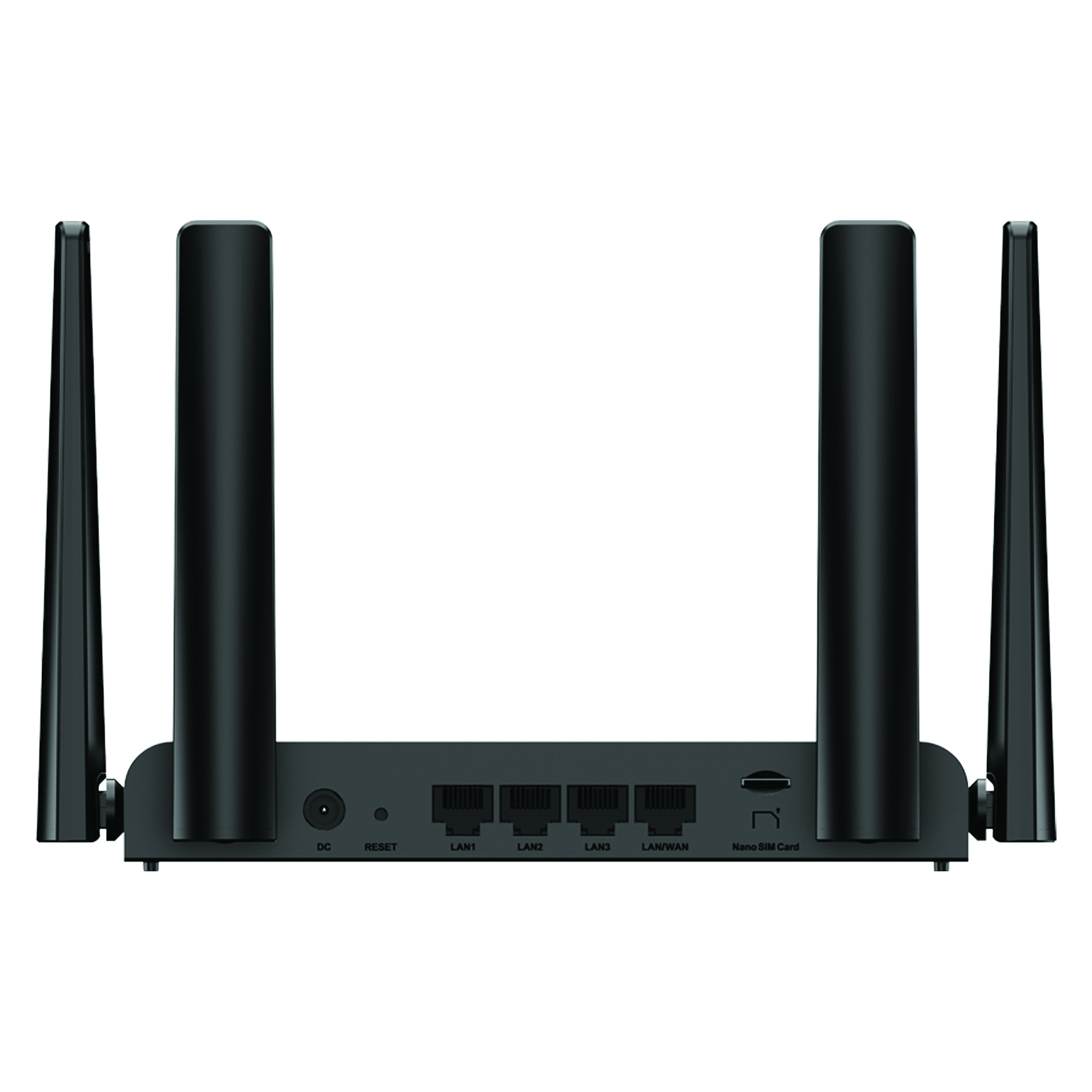

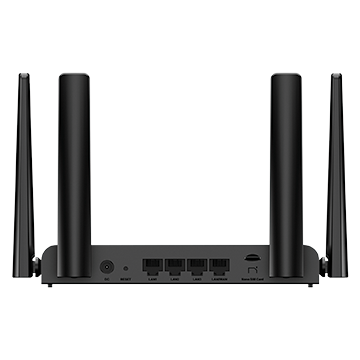

Rear View
300 Mbps 4G LTE Wireless Router CAT-4
57MM-WR09-4G
Reyee No. RG-EW300T
Product Summary
The WR09-4G delivers fast, reliable 4G LTE connectivity with N300 wireless speeds, making it perfect for small homes, offices, and remote locations. Designed for simplicity and stability, it supports up to 32 simultaneous connections and offers multiple Wi-Fi security options to keep your network protected. With its compact form factor and quick plug-and-play setup, the WR09-4G is the ideal solution for dependable internet access without the need for a fixed broadband connection.
View More Networking and Data
3-Year Manufacturer’s Warranty
For full terms & conditions, please see – Ruijie Warranty T&Cs.
Features and Benefits
- Fast 4G LTE Connectivity – Enjoy reliable internet access in remote or mobile environments.
- N300 Wireless Speeds – 300 Mbps Wi-Fi performance for smooth browsing and streaming.
- Quad External Antennas – Boosted signal strength and wider coverage for up to 32 devices.
- Plug-and-Play Setup – Quick installation with multiple internet access modes.
- Cloud Managed – Monitor and configure easily via Ruijie Cloud.
- Compact & Durable Design with a 3-year warranty for long-term reliability.
Specifications
| Wi-Fi Radio | |
|---|---|
| Operating band | IEEE 802.11b/g/n, 2.400GHz~2.4835GHz |
| FEM | iPA |
| Max. Wi-Fi Speed |
2.4 GHz, 300 Mbps LTE-FDD: TX 150Mbps RX50Mbps LTE-TDD: TX130Mbps RX 30Mbps |
| Maximum transmit power |
2.4GHz: 802.11b: 1 Mbps 18 dBm 802.11g: 6 Mbps 18 dBm; 54 Mbps 16.5 dBm 802.11n: HT20: MCS0 18 dBm; MCS7 16.5 dBm HT40: MCS0 17 dBm; MCS7 16 dBm 4G-LTE: WCDMA: (23 dBm +/-3 dB) LTE-FDD: (23 dBm ± 2 dB) LTE-TDD: (23 dBm ± 2 dB) Note: The transmit power varies according to regulations in different countries and regions. |
| MIMO | 2.4 GHz, 2 x 2 |
| Wi-Fi standard |
Wi-Fi 4 (IEEE 802.11 n) 4G-LTE: WCDMA: B1/B5/B8 LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 |
| Antenna | |
| Antenna | 4 x external antennas |
| Antenna gain (2.4 GHz) | 4 dBi |
| Antenna gain (5 GHz) | 4G-LTE: 3 dBi |
| Certification and Regulatory Compliance | |
| Certification | CE, CB |
| Dimensions and Weight | |
| Product dimensions (W x D x H) | 175mm × 100mm × 25mm (6.89in × 4.72in × 1.06in) |
| Weight | 0.25 kg (0.55 lbs) (without packaging materials) 0.31 kg (0.68 lbs) (with packaging materials) |
| Environment and Reliability | |
| Operating humidity | 5% RH to 95% RH (non-condensing) |
| Operating temperature | 0°C to +40°C (32°F to 104°F) |
| Storage humidity | 5% RH to 95% RH (non-condensing) |
| Storage temperature | -40°C to +70°C (-40°F to 158°F) |
| Port Specifications | |
| LEDs |
1 × power LED 1 × Wi-Fi LED 1 × Internet LED 3 × RSSI LEDs |
| LAN ports | 3 × 10/100BASE-T ports |
| Number of LAN/WAN ports | 1 × 10/100BASE-T port |
| WAN ports | 1 × 10/100BASE-T port |
| Power Supply and Consumption | |
| Power supply | DC 12 V 1 A |
| Product Information | |
| Warranty | 3 years |
| System Specifications | |
| RAM | 64 MB |
| Basic Configurations | |
| LED management | Yes |
| Internet access mode | PPPoE, DHCP, Static IP, WISP |
| Preconfiguration | Yes |
| Reset and keep configurations | Yes |
| Restoring factory defaults | Yes |
| Configuration backup | Yes |
| Local upgrade | Yes |
| Online upgrade | Yes |
| Scheduled upgrade | No |
| AP mode | Yes |
| Ethernet Switching | |
| WAN port aggregation | No |
| LAN port aggregation | No |
| Specifying the VLAN tag | Yes |
| IP Service | |
| Port mapping | Yes |
| ARP binding | Yes |
| Number of ARP binding entries | 64 |
| DDNS | Yes |
| No-IP DNS | Yes |
| Ruijie DDNS | No |
| NAT-DMZ | Yes |
| Number of port mapping entries | 50 |
| UPnP | Yes |
| Behavior Management | |
| Parental control | Yes |
| Client access control (based on MAC addresses) | Yes |
| Client access control (based on time) | Yes |
| Maximum number of controlled clients | 32 |
| Maximum number of parental control policies | No |
| Selecting clients from the client list to block their access to the Internet | Yes |
| Specifying MAC addresses of controlled clients | Yes |
| Ethernet Interface | |
| MAC address cloning | Yes |
| VLAN-based IPTV | Yes |
| Flow Control | |
| Flow control based on number of users | Yes |
| Standalone/Shared mode | Yes |
| Interface flow control | Yes |
| IPTV/VLAN | |
| Multiple IPTV ports | Yes |
| Multicast | |
| IGMP proxy | Yes |
| IGMP snooping | No |
| Network Management and Monitoring | |
| Line detection | Yes |
| Language Support | |
| Arabic | Yes |
| Chinese (Hong Kong Traditional) | Yes |
| Chinese (Simplified) | Yes |
| English | Yes |
| Indonesian | Yes |
| Italian | Yes |
| Russian | Yes |
| Spanish (Latin America) | Yes |
| Thai | Yes |
| Turkish | Yes |
| Vietnamese | Yes |
| Management and Operation | |
| Ruijie Cloud management | Yes |
| Scheduled device restart | Yes |
| eWeb login password length | 8 to 63 characters |
| Wired repeater mode | Yes |
| Wireless repeater mode | Yes |
| WISP mode | Yes |
| Rate Limiting | |
| Client-based rate limiting | Yes |
| Reyee Mesh 3.0 | |
| Reyee Mesh 3.0 | No |
| Automatic switching between wired and wireless repeater mode | No |
| Recommended hop count | 2 |
| Maximum number of clients | 192 |
| Maximum number of devices | 32 |
| Security | |
| Encryption mode | Yes |
| System Performance Capacity | |
| Maximum number of concurrent clients | 16 (2.4 GHz) |
| Recommended number of concurrent clients | 8 (2.4 GHz) |
| IPTV/IGMP client capacity | 5 |
| IPTV/IGMP multicast capacity | 5 |
| IPTV/IGMP wired forwarding performance | 25 Mbps |
| Recommended camera limit | 4 (2.4 GHz) |
| VPN | |
| Number of concurrent tunnels supported by the OpenVPN server | No |
| Certificate authentication | No |
| OpenVPN bandwidth | No |
| OpenVPN client | No |
| OpenVPN server | No |
| Server domain name configuration | No |
| Username and password authentication | No |
| Number of concurrent tunnels supported by the PPTP VPN server | No |
| PPTP VPN client | No |
| PPTP VPN server | No |
| Wireless Configuration | |
| Guest Wi-Fi | Yes |
| WLAN | |
| 1024-QAM | No |
| MLO | No |
| DFS | No |
| 802.11k/v roaming | No |
| Wi-Fi blocklist capacity | 30 |
| SSID hiding | Yes |
