Front View

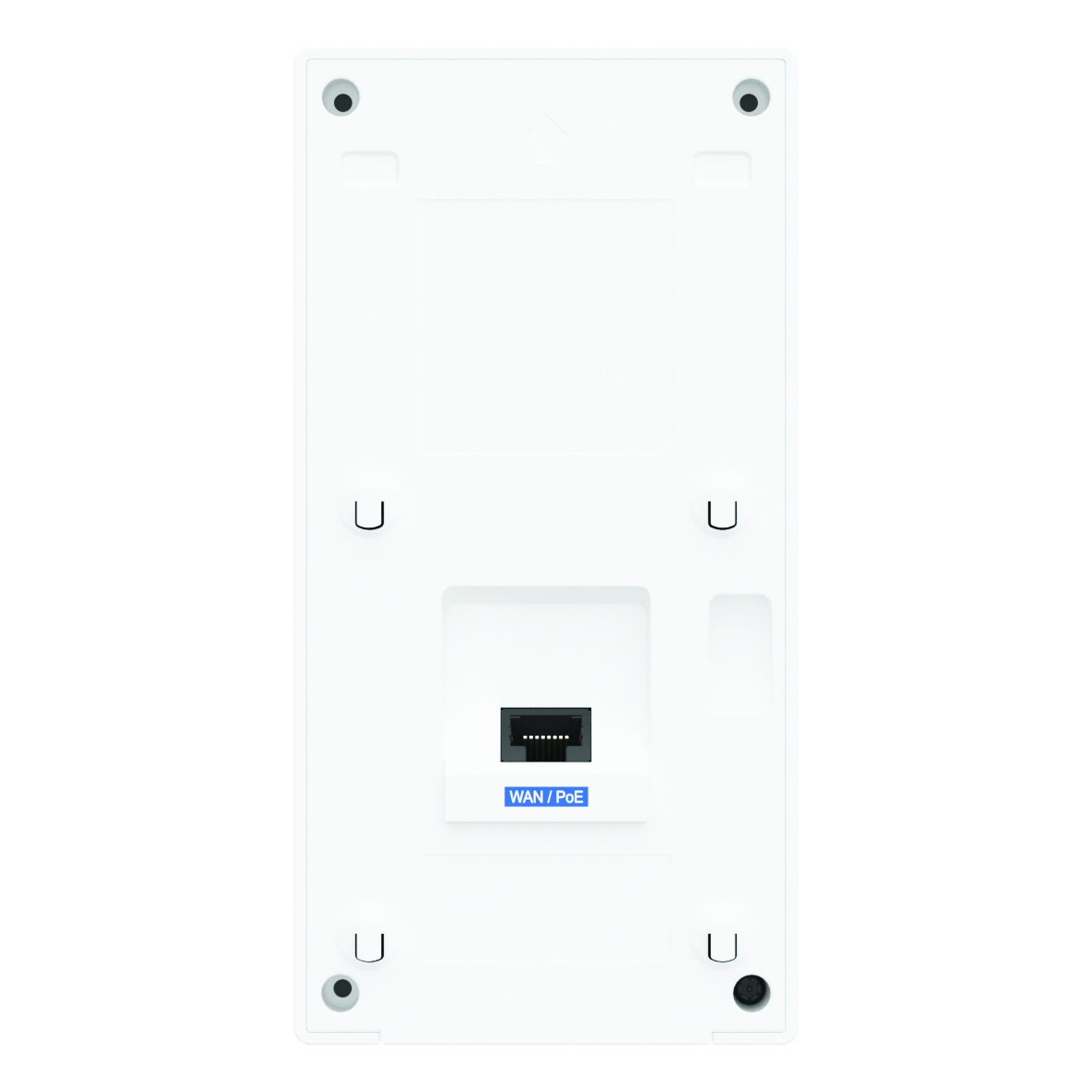

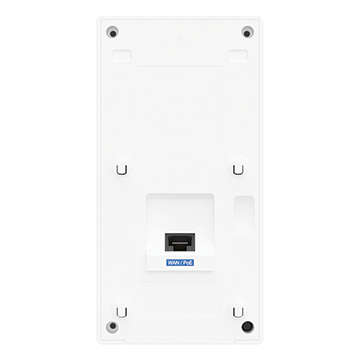

Rear View
Wi-Fi 6 Access Point AX3000 802.11ax Dual Bands 2.976 Gbps, 1 x 2.5G uplink with 4 x Gb LAN with LAN 1 POE Out, Wall Mount
RG-AP180P-L
Former Part No. 57MM-AP04
Product Summary
The Ruijie RG-AP180P-L delivers fast, reliable Wi-Fi 6 connectivity for hotels, apartments, offices, healthcare and education environments. It offers dual-band speeds up to 2.976 Gbps, a 2.5 Gbps uplink and four Gigabit LAN ports. The LAN1 PoE output can power devices such as IP phones and IoT modules, while OFDMA and MU-MIMO improve multi-user performance. Seamless roaming, WPA3 security and flexible Fat, Fit or Cloud management provide secure, streamlined deployment.
View More Networking and Data
3-Year Manufacturer’s Warranty
For full terms & conditions, please see – Ruijie Warranty T&Cs.
Features and Benefits
- Wi-Fi 6 dual-band performance delivers combined wireless speeds up to 2.976 Gbps for fast, reliable connectivity.
- OFDMA and MU-MIMO improve network efficiency, reduce congestion and support up to 128 simultaneous users.
- Supports 802.11a/b/g/n/ac/ax standards, providing broad compatibility with older and newer wireless devices.
- Lifetime-free Ruijie Cloud management enables remote monitoring, fault alerts, optimisation and maintenance through the Ruijie Cloud App.

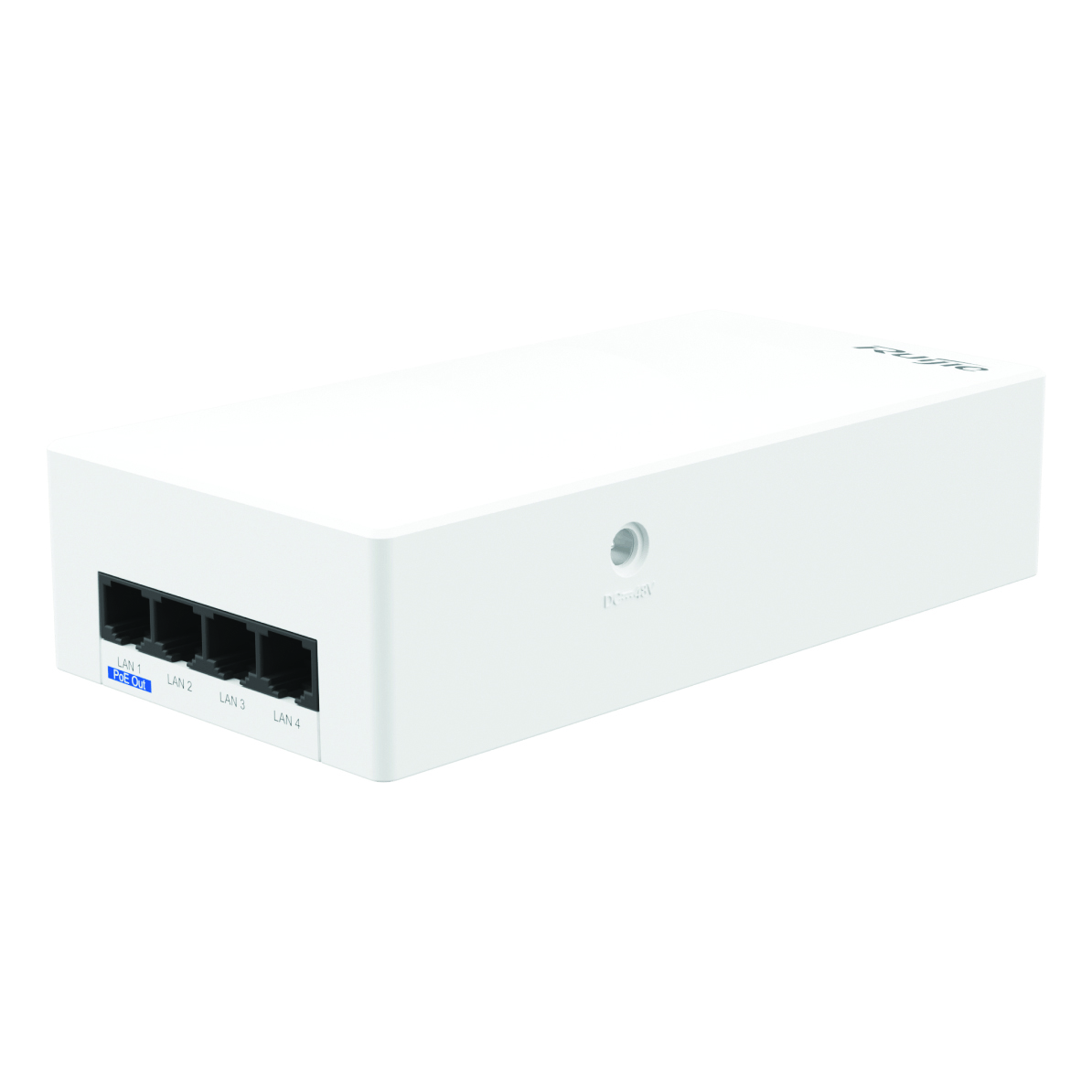

- Features one 2.5 Gbps uplink and four Gigabit downlink ports, combining high-speed wired and wireless networking in one wall-mounted unit.
- LAN1 PoE output can power compatible IP phones, IoT modules and other devices, simplifying installation in hotels, offices, schools and commercial spaces.
Specifications
| Dimensions and Weight | ||||
|---|---|---|---|---|
| Unit dimensions (W x H x D) | 86 mm x 170 mm x 43 mm (3.39 in. x 6.69 in. x 1.69 in.) | |||
| Shipping dimensions (W x H x D) | 367 mm x 399 mm x 245 mm (14.45 in. x 15.71 in. x 9.65 in.) | |||
| Unit weight | Main unit: 0.3 kg (0.66 lbs) Mounting bracket: 0.1 kg (0.22 lbs) | |||
| Shipping weight | 11.53 kg (25.42 lbs) | |||
| Mounting | Wall-mount (a mounting bracket is delivered with the main unit) Junction box-mount (86 mm/European-standard/American-standard junction box) | |||
| Color | Elegant white | |||
| Lock option | Kensington lock | |||
| Wi-Fi Radio | ||||
| Radio design | Dual-radio and up to four spatial streams: Radio 1: 2.4 GHz, two spatial streams, 2x2 MU-MIMO Radio 2: 5 GHz, two spatial streams, 2x2 MU-MIMO | |||
| Operating frequencies | Radio 1, 802.11b/g/n/ax: 2.400 GHz to 2.4835 GHz (HE20/HE40), ISM, channels 1 to 13 Radio 2, 802.11a/n/ac/ax: 5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48 5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64 5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140 5.725 GHz to 5.850 GHz (HE80), U-NII-3/ISM, channels 149, 153, 157, 161, and 165 Note: Available frequency bands may vary with countries or regions. | |||
| Data rates | Combined peak data rate: 2.976 Gbps Radio 1: 2.4 GHz, 574 Mbps Two spatial stream SU-MIMO for up to 574 Mbps to individual 2SS HE40 802.11ax client devices (maximum) Two spatial stream SU-MIMO for up to 287 Mbps to individual 2SS HE20 802.11ax client devices (typical) Radio 2: 5 GHz, 2.402 Gbps Two spatial stream SU-MIMO for up to 2.402 Gbps to individual 2SS HE160 802.11ax client devices (maximum) Two spatial stream SU-MIMO for up to 1.201 Gbps to individual 2SS HE80 802.11ax client devices (typical) | |||
| Data rate set | 2.4 GHz radio: 802.11b: 1, 2, 5.5, 11 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) 5 GHz radio: 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) 802.11ac: 6.5 to 1,732 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT160) 802.11ax: 8.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160) | |||
| Packet aggregation | 802.11n/ac/ax: A-MPDU and A-MSDU | |||
| Antenna type | Built-in omnidirectional antennas (two 2.4 GHz antennas and two 5 GHz antennas) | |||
| Antenna gain | 2.4 GHz: 5 dBi 5 GHz: 5 dBi | |||
| Maximum transmit power | 2.4 GHz radio: 20 dBm (17 dBm per chain) 5 GHz radio: 20 dBm (17 dBm per chain) Note: The transmit power is limited by local regulatory requirements. Thailand 2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm 5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm 5.470 GHz to 5.725 GHz, EIRP ≤ 30 dBm 5.725 GHz to 5.825 GHz, EIRP ≤ 30 dBm Vietnam 2.400 GHz to 2.4835 GHz, EIRP ≤ 23 dBm 5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm 5.470 GHz to 5.725 GHz, EIRP ≤ 30 dBm 5.725 GHz to 5.850 GHz, EIRP ≤ 30 dBm | |||
| Power increment | Configurable in increments of 1 dBm | |||
| Radio technologies | 802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM) 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA) | |||
| Modulation types | 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM | |||
| Wi-Fi Radio Frequency Performance | ||||
| Frequency Band and Protocol | Data Rate | Maximum Transmit Power per Transmit Chain | Maximum Receive Sensitivity per Receive Chain | |
| 2.4 GHz, 802.11b | 1 Mbps | 20 dBm | -96 dBm | |
| 2 Mbps | -10 dBm | -94 dBm | ||
| 5.5 Mbps | -10 dBm | -93 dBm | ||
| 11 Mbps | -10 dBm | -89 dBm | ||
| 2.4 GHz, 802.11g | 6 Mbps | 19 dBm | -91 dBm | |
| 24 Mbps | 17 dBm | -85 dBm | ||
| 36 Mbps | 17 dBm | -80 dBm | ||
| 54 Mbps | 16 dBm | -74 dBm | ||
| 2.4 GHz, 802.11n (HT20) | MCS0 | 19 dBm | -85 dBm | |
| MCS7 | 16 dBm | -67 dBm | ||
| 2.4 GHz, 802.11n (HT40) | MCS0 | 19 dBm | -82 dBm | |
| MCS7 | 16 dBm | -64 dBm | ||
| 2.4 GHz, 802.11ax (HE20) | MCS0 | 18 dBm | -85 dBm | |
| MCS11 | 12 dBm | -58 dBm | ||
| 2.4 GHz, 802.11ax (HE40) | MCS0 | 17 dBm | -82 dBm | |
| MCS11 | 12 dBm | -54 dBm | ||
| 5 GHz, 802.11a | 6 Mbps | 18 dBm | -89 dBm | |
| 24 Mbps | 17 dBm | -82 dBm | ||
| 36 Mbps | 17 dBm | -78 dBm | ||
| 54 Mbps | 15 dBm | -72 dBm | ||
| 5 GHz, 802.11n (HT20) | MCS0 | 18 dBm | -85 dBm | |
| MCS7 | 14 dBm | -67 dBm | ||
| 5 GHz, 802.11n (HT40) | MCS0 | 17 dBm | -82 dBm | |
| MCS7 | 14 dBm | -64 dBm | ||
| 5 GHz, 802.11ac (VHT20) | MCS0 | 18 dBm | -85 dBm | |
| MCS9 | 13 dBm | -60 dBm | ||
| 5 GHz, 802.11ac (VHT40) | MCS0 | 17 dBm | -82 dBm | |
| MCS9 | 13 dBm | -57 dBm | ||
| 5 GHz, 802.11ac (VHT80) | MCS0 | 16 dBm | -82 dBm | |
| MCS9 | 13 dBm | -56 dBm | ||
| 5 GHz, 802.11ax (HE20) | MCS0 | 18 dBm | -85 dBm | |
| MCS11 | 12 dBm | -58 dBm | ||
| 5 GHz, 802.11ax (HE40) | MCS0 | 17 dBm | -82 dBm | |
| MCS11 | 12 dBm | -54 dBm | ||
| 5 GHz, 802.11ax (HE80) | MCS0 | 16 dBm | -82 dBm | |
| MCS11 | 12 dBm | -52 dBm | ||
| 5 GHz, 802.11ax (HE160) | MCS0 | 15 dBm | -79 dBm | |
| MCS11 | 12 dBm | -50 dBm | ||
| Bluetooth Radio | ||||
| Bluetooth | Bluetooth 5.1 | |||
| Antenna type | Onboard omnidirectional antenna | |||
| Maximum antenna gain | 2.4 dBi, with a downtilt angle of roughly 30 degrees | |||
| Maximum transmit power | 10 dBm | |||
| Receive sensitivity | -88 dBm (@BLE) | |||
| Ports Specifications | ||||
| Fixed service port | Uplink: 1 x 100/1000/2.5GBASE-T port, in compliance with IEEE 802.3af/802.3at standard (PoE/PoE+). When powered by 802.3af PoE, LAN 1 cannot supply power to an attached device. Downlink: 4 x 10/100/1000BASE-T ports. LAN 1 supports 48 V/10 W power supply to an attached device. | |||
| Fixed management port | 1 x Micro USB console port | |||
| Status LED | 1 x multi-color system status LED | |||
| Button | 1 x Reset button Press the button for shorter than 2 seconds. Then the device restarts. Press the button for longer than 5 seconds. Then the device restores to factory settings. | |||
| Power Supply and Consumption | ||||
| Input power supply | The AP supports the following two power supply modes: 48 V DC/0.6 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased separately. PoE input over PoE-in port: The power source equipment (PSE) complies with IEEE 802.3af/at standard (PoE/PoE+). Note: When powered by 802.3at (PoE+), the AP operates with the optimal performance. If both DC power and PoE are available, DC power is preferred. | |||
| PoE port | LAN 1 supports 48 V/10 W PoE output to an attached device. | |||
| Overall power consumption | Maximum power consumption: 25 W DC powered: 25 W PoE powered (802.3af): 15 W PoE+ powered (802.3at): 25 W Idle mode: 8 W | |||
| Environment and Reliability | ||||
| Temperature | Operating temperature: 0°C to 40°C (32°F to +104°F) Storage temperature: -40°C to 70°C (-40°F to +158°F) Note: At an altitude in the range of 3,000-5,000 m (9,842.52-16,404.20 ft.), every time the altitude increases by 220 m (722 ft.), the maximum temperature decreases by 1°C (1.8°F). | |||
| Humidity | Operating humidity: 5% RH to 95% RH (non-condensing) Storage humidity: 5% RH to 95% RH (non-condensing) | |||
| Mean Time Between Failure (MTBF) | 200,000 hours (22 years) at the operating temperature of 25°C (77°F) | |||
| Regulatory Compliance | ||||
| Security standards | IEC 62368-1 EN 62368-1 | |||
| Cyber security standards | EN 18031-1 EN 18031-2 | |||
| EMC standards | EN 55032 EN 55035 EN IEC 61000-3-2 EN 61000-3-3 EN 301 489-1 EN 301 489-3 EN 301 489-17 | |||
| Radio frequency standards | EN 300 328 EN 301 893 EN 300 440 EN 62311 EN IEC 62311 EN 50665 FCC Part 15 | |||
| Software Version | ||||
| Applicable software version | RGOS11.9(6)W3B3 or higher | |||
| WLAN | ||||
| Recommended maximum number of active devices per AP | 120 | |||
| Maximum number of associated clients | 256 Note: The number of associated clients varies according to the environment. | |||
| Maximum number of BSSIDs | 32 (up to 16 BSSIDs per radio) | |||
| STA management | SSID hiding Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently. Remote intelligent perception technology (RIPT) Intelligent load balancing based on the STA quantity or traffic | |||
| STA limiting | SSID-based STA limiting Radio-based STA limiting | |||
| Bandwidth limiting | STA/SSID/AP-based rate limiting | |||
| Wireless roaming | Layer 2 and Layer 3 roaming | |||
| Security and Authentication | ||||
| Authentication and encryption | Remote Authentication Dial-In User Service (RADIUS) PSK, web, 802.1X, WPA, WPA2, and WPA3 authentication SMS authentication (used with the RG-WS series wireless access controller) MAB authentication (used with the RG-WS series wireless access controller) WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA3-Personal (WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP), WPA3-OWE | |||
| Data frame filtering | Allowlist, static blocklist, and dynamic blocklist | |||
| ACL | Dynamic ACL assignment ACL assignment based on time spans ACL assignment (complete entry) based on MAC addresses Execution of pre-configured ACLs (entry index) based on MAC addresses | |||
| CPP | Supported | |||
| NFPP | Supported | |||
| Routing and Switching | ||||
| IP service | Static IPv4 address and DHCP-assigned IPv4 address | |||
| Multicast | Multicast-to-unicast conversion | |||
| IPv6 basics | IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping IPv6 DHCP Client | |||
| IP routing | IPv4/IPv6 static routing | |||
| VPN | PPPoE client IPsec VPN | |||
| Management | ||||
| Network management | Fault inspection and alarm Information statistics and logging SNMPv1/v2c/v3 NTP Server and NTP Client | |||
| Network management platform | Ruijie Cloud Web-based management (Eweb) | |||
| User access management | Console, Telnet, SSH, SNMP and TFTP-based management | |||
| Fat/Fit/Cloud mode switchover | When the AP works in Fit mode, it can be switched to Fat mode through an AC. When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet. When the AP works in Cloud mode, it can be managed through Ruijie Cloud. | |||
