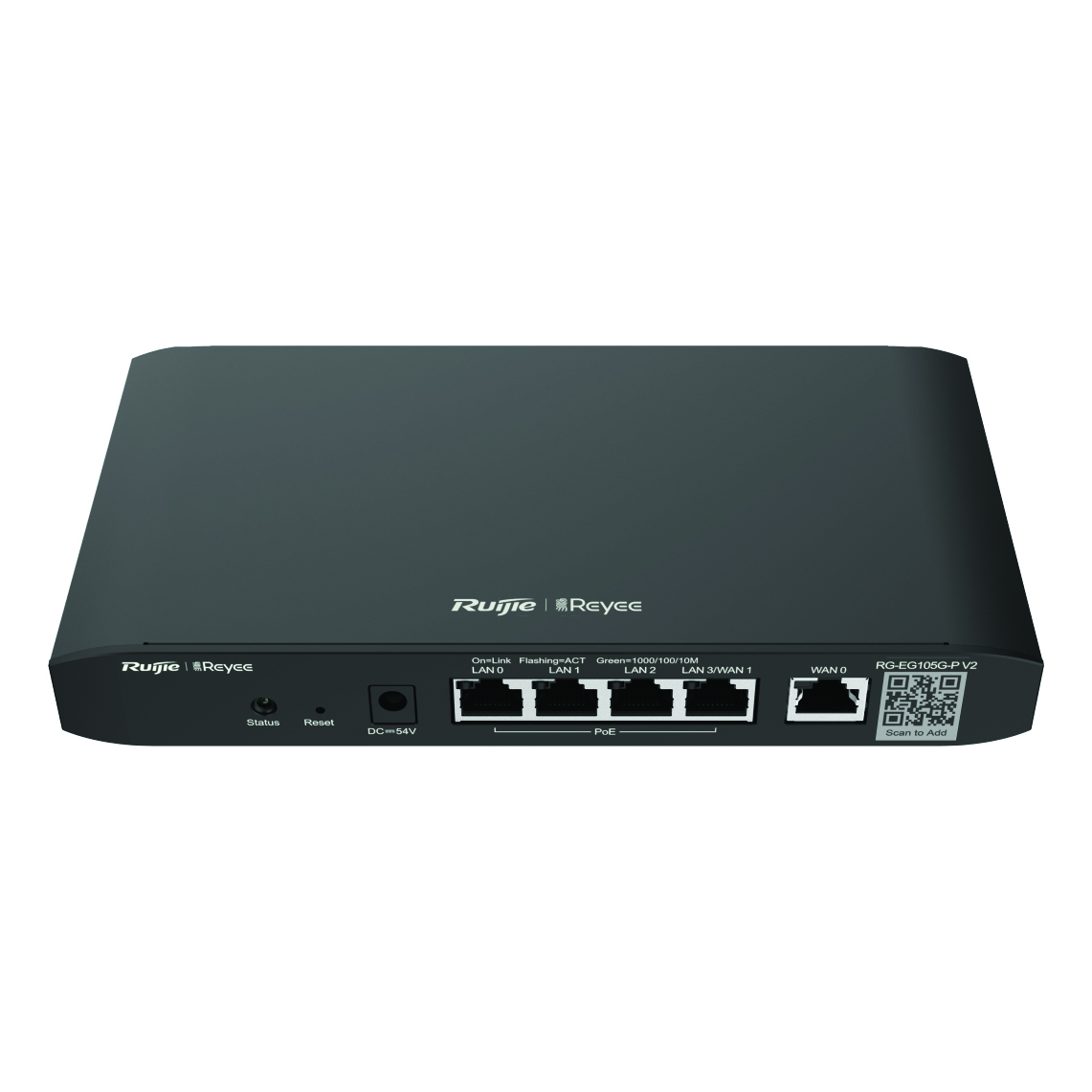

Front View

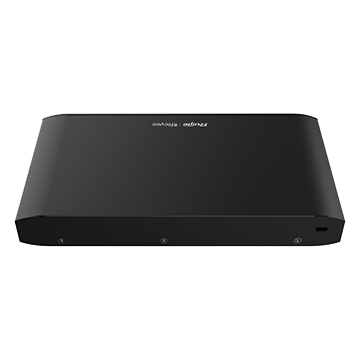

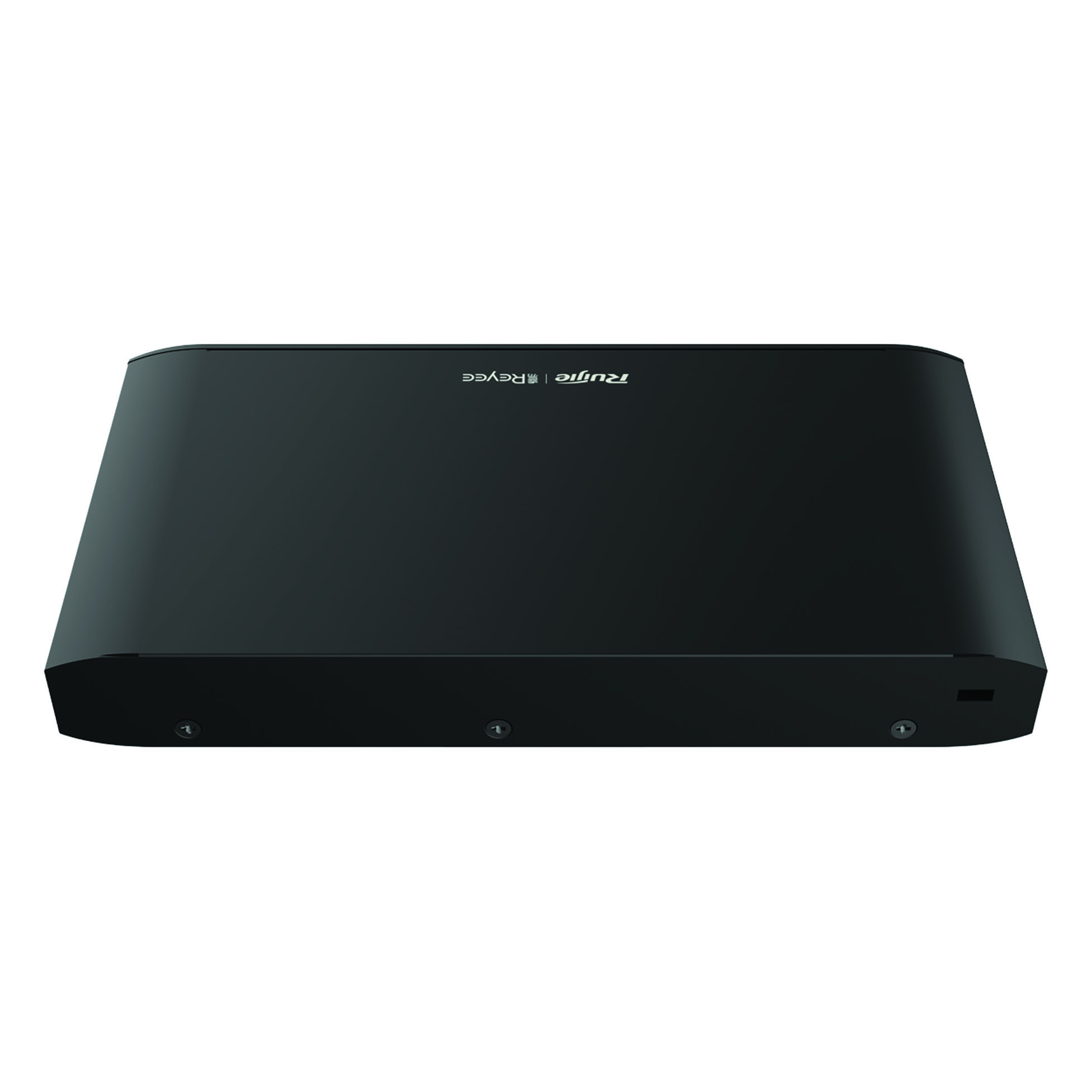

Rear View
5 Port Managed PoE Router, 4x Gigabit PoE+, Up to 2 WAN Load Balanced, 54 W
RG-EG105G-P-V2
Product Summary
The RG-EG105G-P-V2 is a compact five-port Gigabit cloud-managed PoE router designed for small businesses, offices and hospitality networks. It features four PoE/PoE+ ports with a 54 W power budget and supports up to two WAN connections with load balancing and automatic failover. Delivering throughput up to 600 Mbps for 100 recommended concurrent clients, it also offers application control, custom captive portals, VPN connectivity and advanced security. Lifetime-free Ruijie Cloud management enables simple remote configuration, monitoring and maintenance.
View More Networking and Data
3-Year Manufacturer’s Warranty
For full terms & conditions, please see – Ruijie Warranty T&Cs.
Features and Benefits
- Five Gigabit Ethernet ports, including four PoE/PoE+ outputs with a 54 W power budget, connect and power access points, cameras and other PoE devices.
- Supports up to two WAN connections with load balancing and automatic failover, improving bandwidth use and internet reliability.
- Delivers throughput up to 600 Mbps and supports 100 recommended concurrent clients for dependable business connectivity.
- Application recognition, traffic control and website filtering help prioritise critical services and manage network usage.
- Custom captive portals with voucher, SMS, password, and QR code authentication provide flexible, professional guest Wi-Fi access.
- Lifetime-free Ruijie Cloud management, remote diagnostics and multiple VPN options simplify administration and secure remote connectivity.
Specifications
Hardware Specifications
Port Specifications
| Total number of RJ45 ports | 5 |
| Number of 10/100/1000BASE-T ports | 5 |
| Maximum number of LAN ports | 4 |
| Maximum number of WAN ports | 2 |
| Number of fixed LAN ports | 3 |
| Number of fixed WAN ports | 1 |
| Number of LAN/WAN ports | 1 |
| LEDs | 1 x system status LED 5 x Ethernet port LEDs |
| Reset button | 1 |
System Specifications
| CPU | Dual-core processor, 880 MHz clock frequency per core |
| Flash memory | 16 MB |
| RAM | 128 MB |
Power Supply and Consumption
| Power supply | DC power adapter |
| Dimensions of the DC connector | Outer diameter: 5.5 mm (0.22 in.) Inner diameter: 2.1 mm (0.08 in.) Depth: 10.0 mm (0.39 in.) |
| Maximum power consumption | 5 W (with no PoE load) 59 W (with full PoE load) |
| PoE budget | 54 W |
| Number of PoE Out ports | 4 |
| PoE budget per port | 30 W |
| PoE power pins | 1–2 (+), 3–6 (-) |
| PoE Out standard | IEEE 802.3af/at （PoE/PoE+） |
Dimensions and Weight
| Package dimensions (W x D x H) | 540 mm x 340 mm x 285 mm (21.26 in. x 13.39 in. x 11.22 in.) |
| Product dimensions (W x D x H) | 206.5 mm x 108.5 mm x 28 mm (8.13 in. x 4.27 in. x 1.1 in.) |
| Shipping weight | 1.30 kg (2.87 lbs) |
| Weight | 0.84 kg (1.85 lbs) |
Environment and Reliability
| Cooling | Natural cooling |
| Fan | Fanless |
| Mounting options | Desk |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Storage humidity | 5% RH to 95% RH (non-condensing) |
| Storage temperature | −40°C to +70°C (−40°F to +158°F) |
| Surge protection | Service port：±4 kV for common mode Power connector：±2 kV for common mode and±1 kV for differential mode |
Software Specifications
System Performance Capacity
| Maximum number of concurrent sessions | 20000 |
| Recommended number of concurrent clients | 100 |
| Throughput | 600 Mbps |
Basic Configurations
| AC mode | Yes |
| Automatically identifying the Internet access mode and obtaining IP addresses | Yes |
| Automatically learning the PPPoE username and password of other routers | Yes |
| Configuration backup | Yes |
| Internet access mode | PPPoE DHCP Static IP |
| Local upgrade | Yes |
| Log upload | No |
| Online upgrade | Yes |
| Restoring factory defaults | Yes |
| System language | Turkish, Arabic, Vietnamese, Thai, Indonesian, Latin American Spanish, Brazilian Portuguese, Russian, French, German, European Spanish, Italian, and Polish. |
Authentication
| Portal authentication | Yes |
| One-click authentication | Yes |
| Password authentication | Yes |
| SMS-based authentication | Yes |
| Voucher authentication supported by Ruijie Cloud portal page | Yes |
| Cloud portal authentication | Yes |
| Local portal authentication | Yes |
| QR code authentication | Yes |
| Custom portal page | Yes |
| Account-based authentication supported by Ruijie Cloud portal page | Yes |
| CHAP, MS-CHAPv1, MS-CHAPv2 | No |
| Delivery through Ruijie Cloud portal page | Yes |
| 802.1X authentication | No |
| MAC address-based authentication | No |
| PPPoE server | Yes |
| Number of accounts supported by the PPPoE server | 50 |
| Number of concurrent clients supported by the PPPoE server | 35 |
| PAP | No |
| RADIUS authentication | No |
| RADIUS client | No |
| RADIUS accounting based on time or traffic | No |
| RADIUS flow control authorization | No |
| RADIUS proxy server | No |
| RADIUS traffic quota authorization | No |
| RADIUS user group authorization | No |
| Third-party authentication | No |
Ethernet Interface
| Avoiding IP address conflicts on WAN interfaces | Yes |
| Load balancing | Yes |
| MAC address cloning | Yes |
| Multiple WAN interfaces on the same network segment | Yes |
| PPPoE clients | Yes |
| Scheduled PPPoE reconnection | No |
Ethernet Switching
| Configuring multiple VLANs upon configuration delivery | No |
| Link aggregation | No |
| LLDP | No |
| VLAN | Yes |
| VLAN configuration supported on LAN ports | Yes |
| Super-VLAN | No |
| Configuring the same VLAN tag for multiple WAN ports | No |
| VLAN priority | Yes |
Gateway Features
| WAN failover | Yes |
| Application priority | Yes |
| Application recognition | Yes |
| Behavior management | Yes |
| Flow control | Yes |
| Time-based blocking policy IP address-based blocking policy | Yes |
| Website filtering: custom URL | Yes |
| Traffic audit | Yes |
| URL audit log | Yes |
| Audit log server | Yes |
| Audit log storage | No |
| Uploading audit logs to a server | Yes |
IP Routing
| Application-based routing | No |
| Bandwidth aggregation | Yes |
| BGP | No |
| BGP4 | No |
| BGP4+ | No |
| ECMP | No |
| IPv4 static route | Yes |
| IPv6 PBR | Yes |
| IPv6 static route | Yes |
| IS-ISv4 | No |
| IS-ISv6 | No |
| Load balancing based on flows | Yes |
| Load balancing based on source IP addresses | Yes |
| Load balancing based on the interface weight | Yes |
| OSPFv2 | No |
| OSPFv3 | No |
| RIP | Yes |
| RIPng | Yes |
IP Service
| 3322.org | Yes |
| ALG | Yes |
| ARP binding | Yes |
| Maximum number of ARP entries | 1024 |
| Proxy ARP | No |
| Cloudflare | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| DHCP relay | No |
| Option 43 | Yes |
| Option 138 | Yes |
| Static/Dynamic NAT | Yes |
| NAT-PT | No |
| NAT loopback | Yes |
| DNS client | Yes |
| DNS proxy | Yes |
| DNS server | Yes |
| No-IP DNS | Yes |
| GRE tunnel | No |
| IPTV | Yes |
| IPv4 ping | Yes |
| IPv6 | Yes |
| IPv6 ping | Yes |
| Number of port mapping entries | 256 |
| Port mapping | Yes |
| DDNS | Yes |
| Ruijie DDNS | Yes |
| Alibaba Cloud DDNS | Yes |
| UPnP | Yes |
Network Management and Monitoring
| Web management | Yes |
| Ruijie Cloud management | Yes |
| Management on Ruijie Reyee App | Yes |
| Remotely monitoring devices through Ruijie Reyee App | Yes |
| Restarting devices through Ruijie Reyee App | Yes |
| Upgrading device software version through Ruijie Reyee App | Yes |
| Fault diagnosis | Yes |
| FTP client (IPv4 address) | No |
| FTP server (IPv4 address) | No |
| TFTP client (IPv4 address) | Yes |
| TFTP server (IPv4 address) | No |
| HTTPS login | Yes |
| NTP client | Yes |
| NTP server | No |
| Scheduled device restart | Yes |
| SNMPv1, v2c, and v3 | No |
| SON | Yes |
| SSH | No |
| Telnet | No |
| Web login information | Default IP Address: 192.168.110.1 Default Password: admin |
| Maximum number of managed devices (router mode) | AP and NBS series: 32 ES series: 128 Note: The maximum number of managed devices varies with each device series. |
| Maximum number of managed devices (AC mode) | AP and NBS series: 300 ES series: 128 Note: The maximum number of managed devices varies with each device series. |
Reliability
| Stacking | No |
| VRRP | No |
SD-WAN
| SD-WAN | No |
| Active/Standby mode (automatically switching to the standby interface when the active interface fails) | No |
Security
| ACL | Yes |
| DHCP snooping | No |
| Malformed packet attack defense | Yes |
| Fragmentation attack defense | No |
| Teardrop attack defense | Yes |
| LAND attack defense | Yes |
| SYN flood attack defense | Yes |
| Smurf attack defense | Yes |
| IP attack defense | Yes |
| Disabling ping | Yes |
| Stateful firewall | Yes |
| IP-MAC binding | Yes |
| Network sharing prevention | Yes |
| Security log | Yes |
| Security zone | Yes |
| User group-based connection limiting | Yes |
VPN
| IPsec VPN | Yes |
| IPsec VPN bandwidth | 28 Mbps |
| Maximum number of branches in IPsec VPN networking | 8 |
| L2TP VPN | Yes |
| L2TP VPN bandwidth | 190 Mbps |
| Maximum number of branches in L2TP VPN networking | 8 |
| OpenVPN | Yes |
| OpenVPN bandwidth | 20 Mbps |
| Maximum number of branches in OpenVPN networking | 16 |
| PPTP VPN | Yes |
| PPTP VPN bandwidth | 190 Mbps |
| Maximum number of branches in PPTP VPN networking | 8 |
| SSL VPN | No |
| Easy VPN 1.0 | No |
| Number of VPN accounts for L2TP, PPTP, and OpenVPN | 50 |
| WireGuard server | No |
| WireGuard client | No |
WLAN
| Maximum number of APs (AC mode) | 300 |
| Maximum number of devices that can be managed | 128 |
| Wireless Intelligent Optimization (WIO) | Yes |
Package Contents
Accessories
| Power adapter | 1 |
| Power cord | 70.86 in. x 1 pieces |
| Rubber pad | 4 |
Manual
| User Manual | 1 |
| Warranty Card | 1 |
