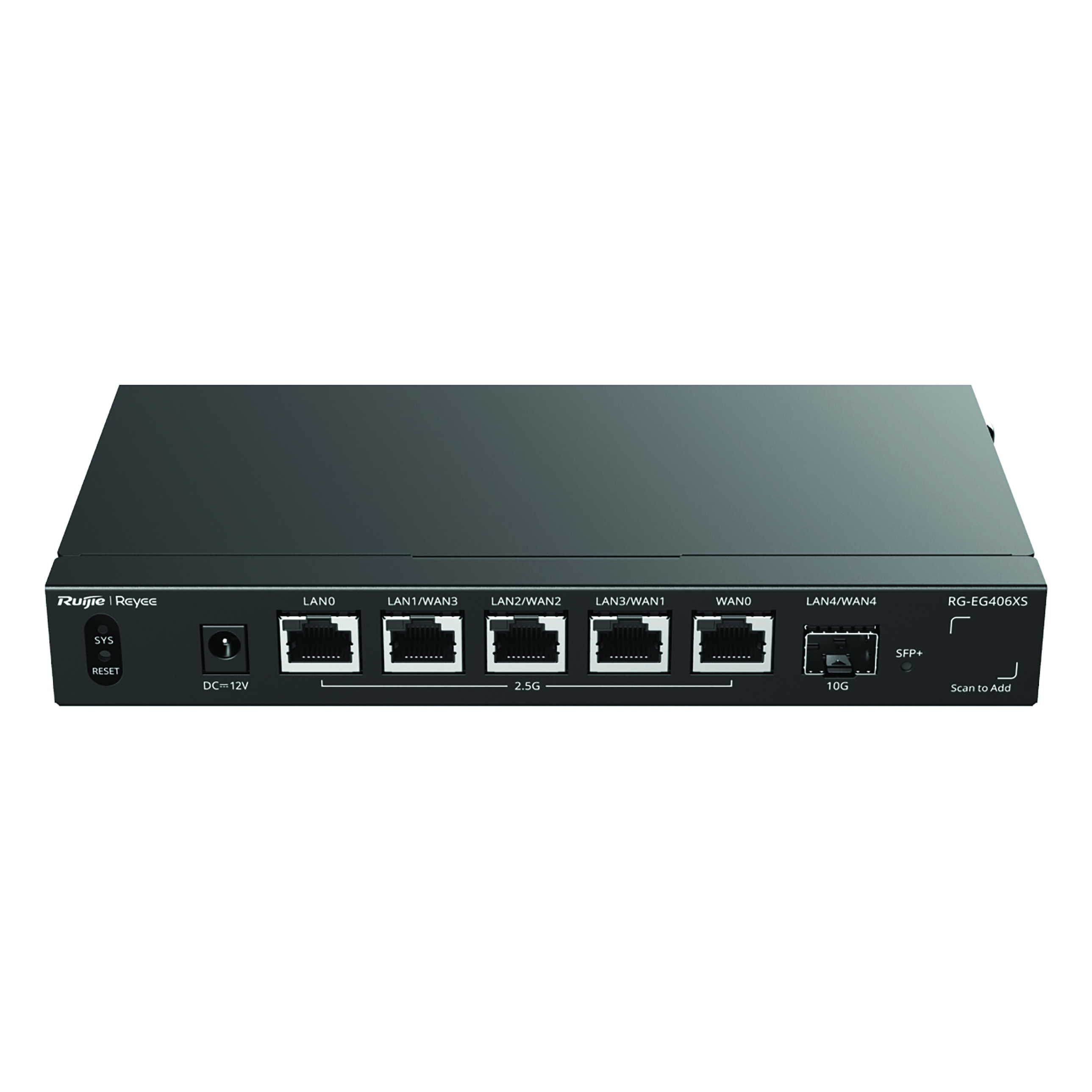

Front View

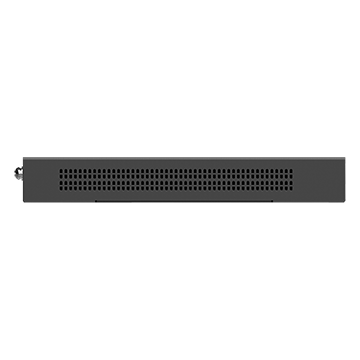

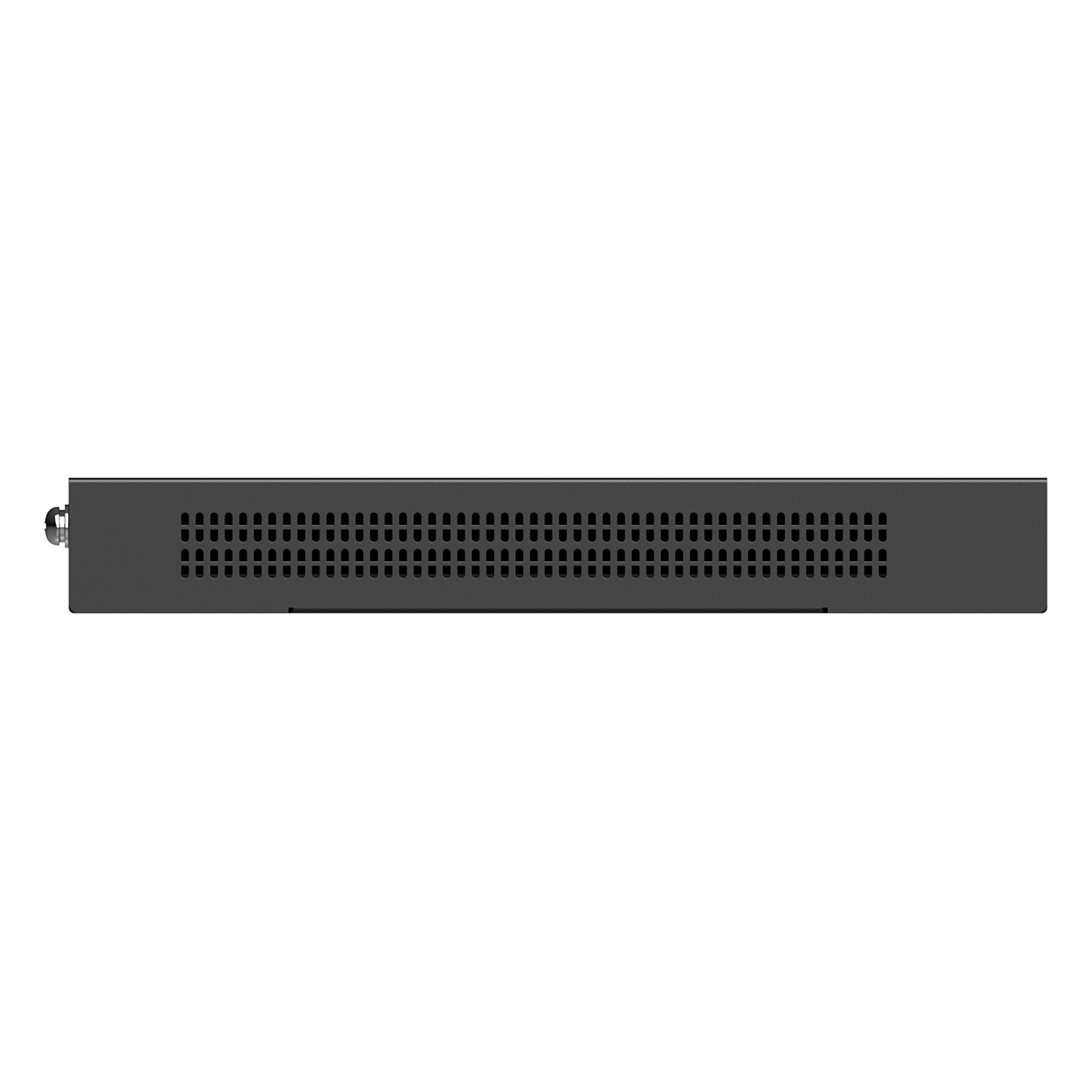

Rear View
5 Port Multi-Gigabit Cloud Managed Router, 5x 2.5GbE 1x 10G SFP+, Up to 5 WAN Load Balanced
RG-EG406XS
Product Summary
The RG-EG406XS is a high-performance cloud-managed router designed for growing commercial and enterprise networks. It features five 2.5 Gigabit Ethernet ports, one 10 Gigabit SFP+ port and up to 2.5 Gbps throughput, supporting 400 recommended concurrent clients. Multi-WAN load balancing, advanced bandwidth management, SD-WAN and comprehensive VPN support deliver fast and dependable connectivity, while lifetime-free Ruijie Cloud management simplifies remote administration.
View More Networking and Data
3-Year Manufacturer’s Warranty
For full terms & conditions, please see – Ruijie Warranty T&Cs.
Features and Benefits
- Five 2.5 Gigabit Ethernet ports and one 10 Gigabit SFP+ port deliver high-speed copper and fibre connectivity for demanding networks.
- Up to 2.5 Gbps throughput and support for 400 recommended concurrent clients provide reliable performance for busy commercial environments.
- Up to five configurable WAN ports support intelligent load balancing and automatic failover, improving bandwidth use and internet reliability.
- Application recognition, QoS, traffic auditing and website filtering help prioritise essential services and manage network usage.
- SD-WAN and comprehensive IPsec, L2TP, OpenVPN, PPTP and WireGuard support enable secure, scalable connectivity between remote sites.
- Lifetime-free Ruijie Cloud management enables remote configuration, monitoring, fault diagnosis and maintenance through the Ruijie Reyee App.
Specifications
Hardware Specifications
Port Specifications
| Total number of optical ports | 1 |
| Total number of RJ45 ports | 5 |
| Number of 10/100/1000/2500BASE-T ports | 5 |
| Number of 10GE SFP+ ports | 1 |
| Maximum number of LAN ports | 5 |
| Maximum number of WAN ports | 5 |
| Number of fixed LAN ports | 1 |
| Number of fixed WAN ports | 1 |
| Number of LAN/WAN ports | 4 |
| LEDs | 1 x system status LED 6 x Ethernet port LEDs |
| Reset button | 1 |
System Specifications
| CPU | Quad-core processor, 2.0 GHz clock frequency per core |
| Flash memory | 256 MB |
| RAM | 1 GB |
Power Supply and Consumption
| Power supply | DC power adapter |
| Dimensions of the DC connector | Outer diameter: 5.5 mm (0.22 in.) Inner diameter: 2.1 mm (0.08 in.) Depth: 10.0 mm (0.39 in.) |
| Maximum power consumption | 9 W |
Dimensions and Weight
| Package dimensions (W x D x H) | 278 mm x 229 mm x 77 mm (10.94 in. x 9.02 in. x 3.03 in.) |
| Product dimensions (W x D x H) | 202 mm x 108 mm x 28 mm (7.95 in. x 4.25 in. x 1.1 in.) |
| Shipping weight | 1.28 kg (2.82 lbs) |
| Weight | 0.61 kg (1.34 lbs) |
Environment and Reliability
| Cooling | Natural cooling |
| Fan | Fanless design |
| Mounting options | Desk/Rack Note: The device occupies 1 U of the rack space. |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Storage humidity | 5% RH to 95% RH (non-condensing) |
| Storage temperature | −40°C to +70°C (−40°F to +158°F) |
| Surge protection | Service port: ±4 kV for common mode Power connector: ±4 kV for common mode and ±2 kV for differential mode |
Software Specifications
System Performance Capacity
| Maximum number of concurrent sessions | 120000 |
| Recommended number of concurrent clients | 400 |
| Throughput | 2500 Mbps |
Basic Configurations
| AC mode | Yes |
| Automatically identifying the Internet access mode and obtaining IP addresses | Yes |
| Automatically learning the PPPoE username and password of other routers | Yes |
| Configuration backup | Yes |
| Internet access mode | Static IP address Static IPv6 address Dynamic IP address Dynamic IPv6 address PPPoE |
| Local upgrade | Yes |
| Log upload | Yes |
| Online upgrade | Yes |
| Restoring factory defaults | Yes |
| System language | English, Chinese, Turkish, Arabic, Vietnamese, Thai, Indonesian, Latin American Spanish, Brazilian Portuguese, Russian, French, German, European Spanish, Italian, and Polish |
Authentication
| Portal authentication | Yes |
| One-click authentication | Yes |
| Password authentication | Yes |
| SMS-based authentication | Yes |
| Voucher authentication supported by Ruijie Cloud portal page | Yes |
| Cloud portal authentication | Yes |
| Local portal authentication | Yes |
| QR code authentication | Yes |
| Custom portal page | Yes |
| Account-based authentication supported by Ruijie Cloud portal page | Yes |
| CHAP, MS-CHAPv1, MS-CHAPv2 | Yes |
| Delivery through Ruijie Cloud portal page | Yes |
| 802.1X authentication | Yes |
| MAC address-based authentication | Yes |
| PPPoE server | Yes |
| Number of accounts supported by the PPPoE server | 400 |
| Number of concurrent clients supported by the PPPoE server | 200 |
| RADIUS flow control authorization | Yes |
| PAP | Yes |
| RADIUS authentication | Yes |
| RADIUS client | Yes |
| RADIUS accounting based on time or traffic | Yes |
| RADIUS flow control authorization | Yes |
| RADIUS proxy server | Yes |
| RADIUS traffic quota authorization | Yes |
| RADIUS user group authorization | Yes |
| Third-party authentication | Yes |
Ethernet Interface
| Avoiding IP address conflicts on WAN interfaces | Yes |
| Multiple IP addresses on a WAN port | Yes |
| Load balancing | Yes |
| MAC address cloning | Yes |
| Multiple WAN interfaces on the same network segment | Yes |
| PPPoE clients | Yes |
| Scheduled PPPoE reconnection | No |
Ethernet Switching
| Configuring multiple VLANs upon configuration delivery | No |
| Link aggregation | No |
| LLDP | No |
| VLAN | Yes |
| Maximum number of VLANs | 128 |
| VLAN configuration supported on LAN ports | Yes |
| Super-VLAN | No |
| Configuring the same VLAN tag for multiple WAN ports | No |
| VLAN priority | Yes |
| Number of MAC address entries to be filtered | 512 |
Gateway Features
| WAN failover | Yes |
| Application priority | Yes |
| Application recognition | Yes |
| Behavior management | Yes |
| QoS | Yes |
| Time-based blocking policy IP address-based blocking policy | Yes |
| Website filtering: custom URL | Yes |
| Traffic audit | Yes |
| URL audit log | Yes |
| Audit log server | Yes |
| Audit log storage | No |
| Uploading audit logs to a server | Yes |
IP Routing
| Application-based routing | Yes |
| Bandwidth aggregation | Yes |
| BGP | Yes |
| BGP4 | Yes |
| BGP4+ | Yes |
| ECMP | No |
| IPv4 static route | Yes |
| IPv6 PBR | Yes |
| Route selection based on national address database | Yes |
| IPv6 static route | Yes |
| IS-ISv4 | No |
| IS-ISv6 | No |
| Load balancing based on flows | Yes |
| Load balancing based on source IP addresses | Yes |
| Load balancing based on the interface weight | Yes |
| Route selection by link quality | Yes |
| OSPFv2 | Yes |
| OSPFv3 | Yes |
| RIP | Yes |
| RIPng | Yes |
IP Service
| 3322.org | Yes |
| ALG | Yes |
| ARP binding | Yes |
| Maximum number of ARP entries | 1024 |
| Proxy ARP | No |
| Cloudflare | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| DHCP relay | No |
| Option 43 | Yes |
| Option 138 | Yes |
| Static/Dynamic NAT | Yes |
| NAT-PT | No |
| NAT loopback | Yes |
| DNS client | Yes |
| DNS proxy | Yes |
| DNS server | Yes |
| No-IP DNS | Yes |
| GRE tunnel | No |
| IPTV | Yes |
| IPv4 ping | Yes |
| IPv6 | Yes |
| IPv6 ping | Yes |
| Number of port mapping entries | 512 |
| Port mapping | Yes |
| DDNS | Yes |
| Ruijie DDNS | Yes |
| Alibaba Cloud DDNS | Yes |
| UPnP | Yes |
MPLS
| MPLS L2VPN | No |
Network Management and Monitoring
| Web management | Yes |
| Ruijie Cloud management | Yes |
| Management on Ruijie Reyee App | Yes |
| Remotely monitoring devices through Ruijie Reyee App | Yes |
| Restarting devices through Ruijie Reyee App | Yes |
| Upgrading device software version through Ruijie Reyee App | Yes |
| Fault diagnosis | Yes |
| FTP client (IPv4 address) | No |
| FTP server (IPv4 address) | No |
| TFTP client (IPv4 address) | Yes |
| TFTP server (IPv4 address) | No |
| HTTPS login | Yes |
| NTP client | Yes |
| NTP server | No |
| Scheduled device restart | Yes |
| SNMPv1, v2c, and v3 | Yes |
| SON | Yes |
| SSH | No |
| Telnet | No |
| Web login information | Default IP Address: 192.168.110.1 Default Password: admin |
| Maximum number of managed devices (router mode) | AP and NBS series: 200 ES series: 128 Note: The maximum number of managed devices varies with each device series. |
| Maximum number of managed devices (AC mode) | AP and NBS series: 750 ES series: 128 Note: The maximum number of managed devices varies with each device series. |
Reliability
| Stacking | No |
| VRRP | No |
SD-WAN
| SD-WAN | Yes |
| SD-WAN performance | 750 Mbps |
| Number of tunnels supported by SD-WAN | 300 |
| Maximum number of SD-WAN branches | 100 |
| Active/Standby mode (automatically switching to the standby interface when the active interface fails) | Yes |
| Bypass networking for a device in AP mode | No |
| Centralized traffic forwarding policy | Yes |
| Multi-WAN link bundling efficiency (lab data) | ≥ 80% |
Security
| ACL | Yes |
| IPv6 ACL | Yes |
| DHCP snooping | No |
| Malformed packet attack defense | Yes |
| Fragmentation attack defense | Yes |
| Teardrop attack defense | Yes |
| LAND attack defense | Yes |
| SYN flood attack defense | Yes |
| Smurf attack defense | Yes |
| IP attack defense | Yes |
| Disabling ping | Yes |
| Stateful ACL | Yes |
| IP-MAC binding | Yes |
| Network sharing prevention | Yes |
| Security log | Yes |
| Security zone | Yes |
| User group-based connection limiting | Yes |
VPN
| IPsec VPN | Yes |
| IPsec VPN bandwidth | 700 Mbps |
| Maximum number of branches in IPsec VPN networking | 100 |
| L2TP VPN | Yes |
| L2TP VPN bandwidth | 850 Mbps |
| Maximum number of branches in L2TP VPN networking | 100 |
| OpenVPN | Yes |
| OpenVPN bandwidth | 200 Mbps |
| Maximum number of branches in OpenVPN networking | 100 |
| PPTP VPN | Yes |
| PPTP VPN bandwidth | 850 Mbps |
| Maximum number of branches in PPTP VPN networking | 100 |
| SSL VPN | No |
| Easy VPN 1.0 | No |
| Number of VPN accounts for L2TP, PPTP, and OpenVPN | 400 |
| WireGuard server | Yes |
| WireGuard client | Yes |
| WireGuard performance | 750 Mbps |
| Number of concurrent tunnels supported by the WireGuard server | 100 |
WLAN
| Maximum number of APs (AC mode) | 750 |
| Maximum number of devices that can be managed | 128 |
| Wireless Intelligent Optimization (WIO) | Yes |
Package Contents
Accessories
| Rack-mount bracket | 2 |
| Power adapter | 1 |
| Rubber pad | 4 |
| Screw | 6 x M3 x 6 mm cross recessed countersunk head screws |
Manual
| User Manual | 1 |
| Warranty Card | 1 |
