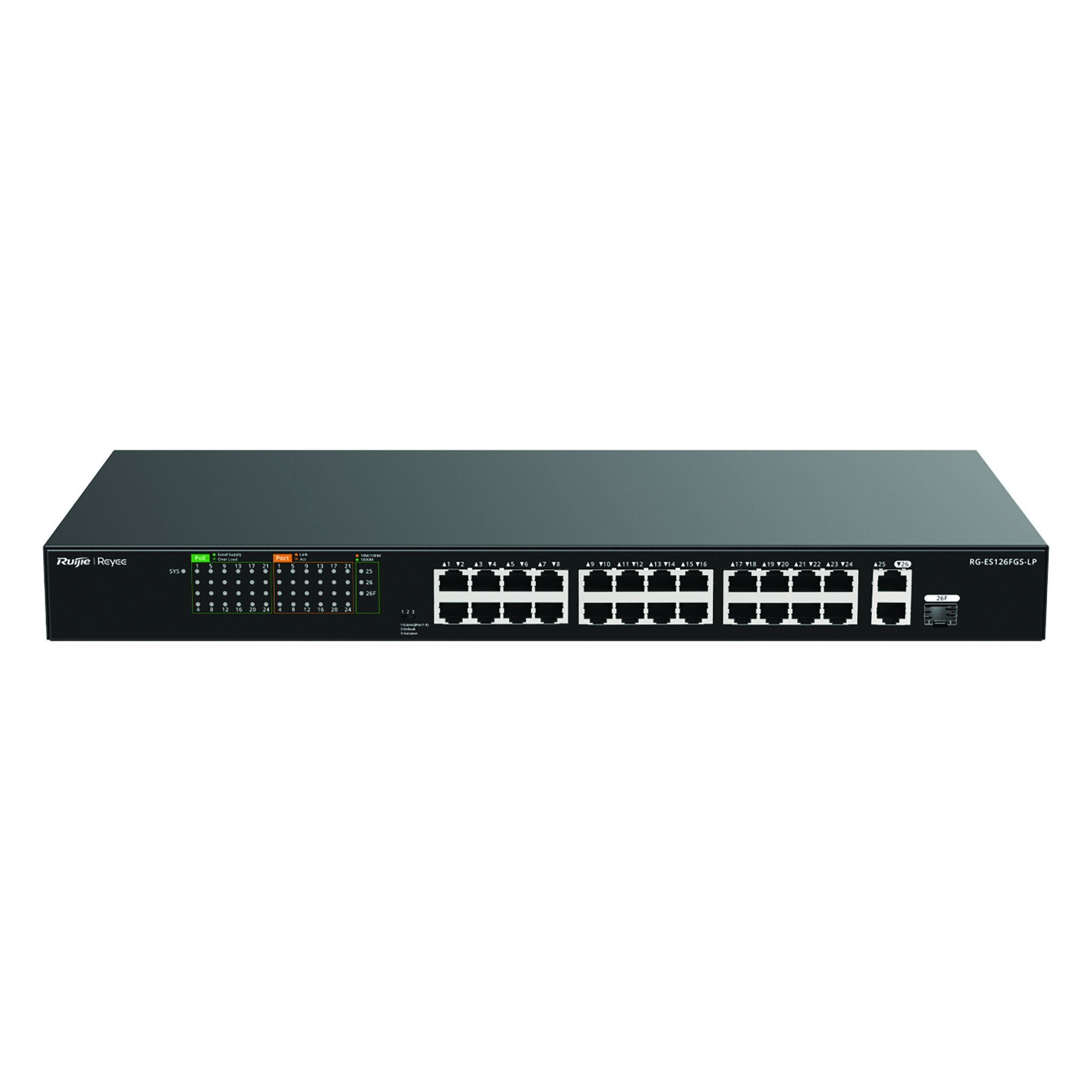

Front View

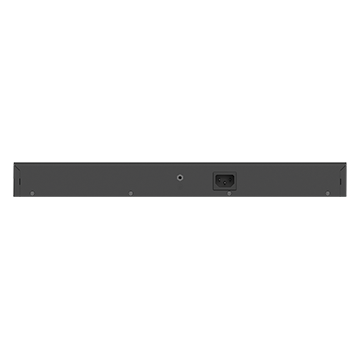

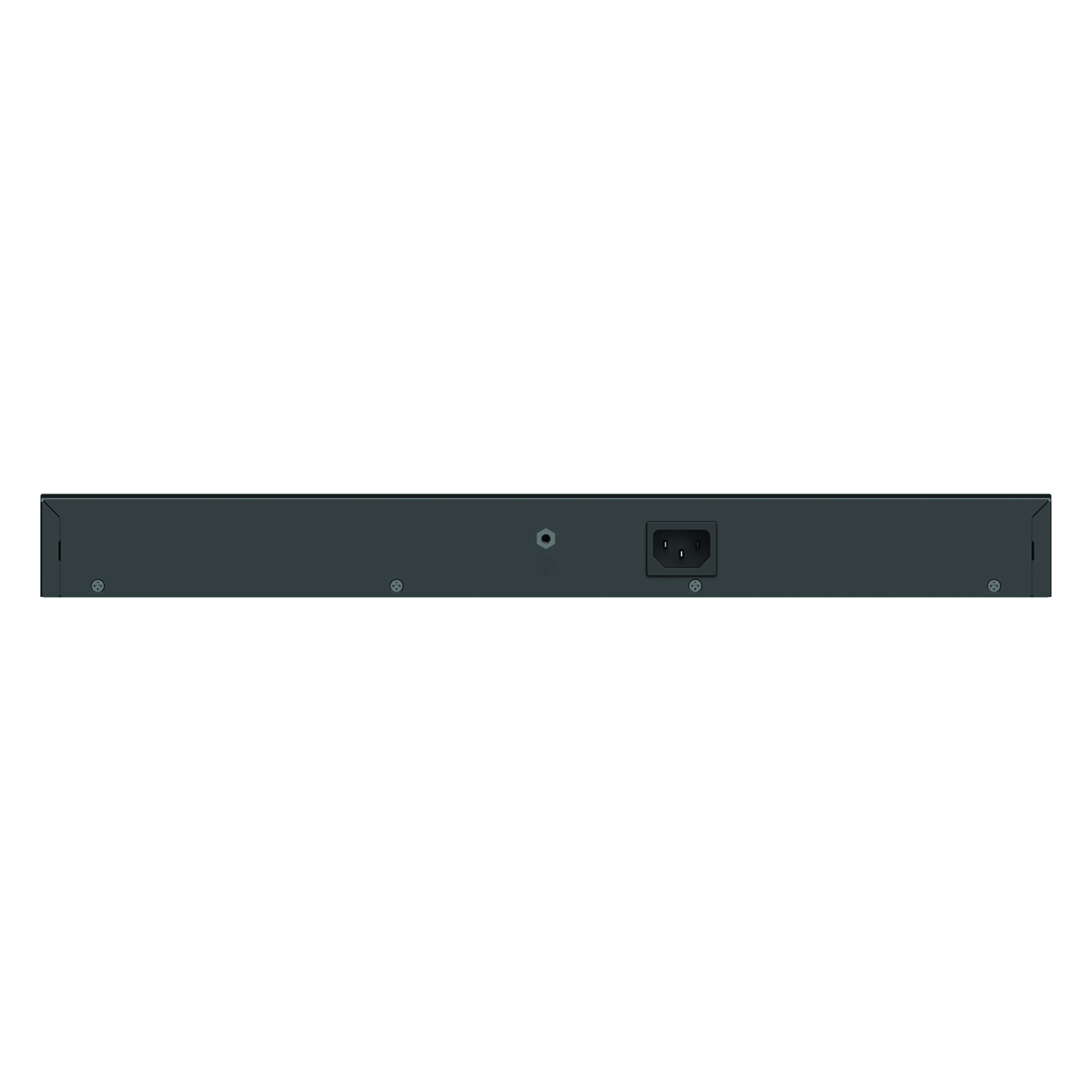

Rear View
26 Port Network Switch with 24 x 10/100 Mbps & 2 Combo GbE/SFP Ports - Unmanaged PoE
RG-ES126FGS-LP
Product Summary
The RG-ES126FGS-LP is a 26-port unmanaged PoE switch built for larger CCTV and security networks. It features 24 Fast Ethernet PoE/PoE+ ports, two Gigabit RJ45 uplinks and one Gigabit combo SFP port, supported by a 180 W PoE budget. Intelligent PoE watchdog automatically restarts unresponsive cameras, while Extend Mode supports connections up to 200 metres. Port isolation, Ruijie Cloud visibility and a durable rack-mount metal design provide secure, reliable and easy-to-monitor operation.
View More Networking and Data
3-Year Manufacturer’s Warranty
For full terms & conditions, please see – Ruijie Warranty T&Cs.
Features and Benefits
- 24 PoE/PoE+ ports with an 180 W power budget simplify the connection and power supply for IP cameras and other PoE devices.
- Two Gigabit RJ45 uplinks and one Gigabit combo SFP port provide flexible copper or fibre network connectivity.
- Extend Mode supports transmission distances up to 200 metres on ports 1–8, ideal for remotely installed security cameras.
- Intelligent PoE watchdog automatically detects and restarts unresponsive cameras, helping maintain continuous surveillance.
- Port Isolation Mode separates connected devices while retaining uplink access, improving CCTV network security.
- Durable metal rack-mount construction, Ruijie Cloud visibility and a three-year warranty provide reliable performance and easier monitoring.
Specifications
Hardware Specifications
Port Specifications
| Total number of RJ45 ports | 26 |
| Total number of optical ports | 1 |
| Number of 1GE combo ports | 1 |
| Number of 1GE SFP ports | 1 |
| Number of 10/100BASE-T ports | 24 |
| Number of 10/100/1000BASE-T ports | 2 |
| Ultra-long-haul transmission | Yes |
| DIP switch | Extend mode: The rate of Ports 1 to 8 is reduced to 10 Mbps, but the maximum transmission distance can be up to 200 meters (Cate5e cables required). Flow control on. Default mode: All ports can communicate with each other. Flow control on. Isolation mode: Ports 1 to 24 cannot communicate with each other, but they can communicate with ports 25 and 26. Flow control on. |
Power Supply and Consumption
| PoE Out standard | PoE/PoE+ (IEEE 802.3af/at) |
| Number of PoE Out ports | 24 |
| Number of PoE/PoE+ Out ports | 24 |
| PoE budget | 180 W |
| PoE power pins | 1–2 (+), 3–6 (-) |
| Power input | 220 V AC power supply: • Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz • Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz • Rated input current: 3.5 A |
| Maximum power consumption | 20 W (with no PoE load) 200 W (with PoE full load) |
| Power supply | Fixed power supply |
System Specifications
| Flash memory | 4 MB |
| Forwarding rate | 6.5 Mpps |
| Switching capacity | 8.8 Gbps(bit/s) |
Dimensions and Weight
| Casing | Metal |
| Product dimensions (W x D x H) | 440 mm x 214.9 mm x 44 mm (17.32 in. x 8.46 in. x 1.73 in.) |
| Weight | 2.64 kg (5.82 lbs) (without packaging materials) 3.20 kg (7.05 lbs) (with packaging materials) |
| Shipping weight | 3.20 kg (7.05 lbs) |
Environment and Reliability
| Fan | 1 x fixed fan |
| Cooling | Air cooling, front-to-rear airflow |
| Acoustic noise | < 40 dB: 25℃ (77°F) |
| Mounting options | Rack |
| Hot swapping of cables | Hot swapping supported by the service port and power connector |
| MTBF | 200,000 hours |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Storage humidity | 5% RH to 95% RH (non-condensing) |
| Altitude | –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) |
| ESD protection | Air discharge: 8 kV Contact discharge: 6 kV |
| Surge protection | Service port: ±4 kV for common mode Power connector: ±6 kV for common mode and ±6 kV for differential mode |
Certification and Regulatory Compliance
| EMC | EN 55032 EN IEC 61000-3-2 EN 61000-3-3 EN 55035 EN 300 386 |
| Safety compliance | EN 62368-1 IEC 62368-1 |
| Certification | CE, CB |
Software Specifications
Basic Configurations
| PoE watchdog | Yes |
Ethernet Switching
| Maximum number of MAC address entries | 8000 |
| Interface flow control | Yes |
| LLDP | No |
| LLDP-MED | No |
Interface
| Jumbo frame length (MTU) | 2048 bytes |
IP Service
| IPv4 ping | No |
| IPv4 traceroute | No |
| ICMPv6 | No |
| IPv6 ping | No |
| IPv6 traceroute | No |
Multicast
| IGMPv1 snooping | No |
| IGMPv2 snooping | No |
| Basic IGMPv3 snooping | No |
| Full IGMPv3 snooping | No |
| IGMP filtering | No |
Security
| Port isolation | Yes |
System Performance Capacity
| Recommended camera limit | 200W H265: 40 400W H265: 20 |
Package Contents
Device
| Device | 1 |
Accessories
| Power cord retention clip | 0 |
| Screw | 6 X M4 x 8 mm cross recessed countersunk head screws |
| Power cord | 1 x 1.8 m |
| Rack-mount bracket | 2 |
Manual
| User Manual | 1 |
| Warranty Card | 1 |
