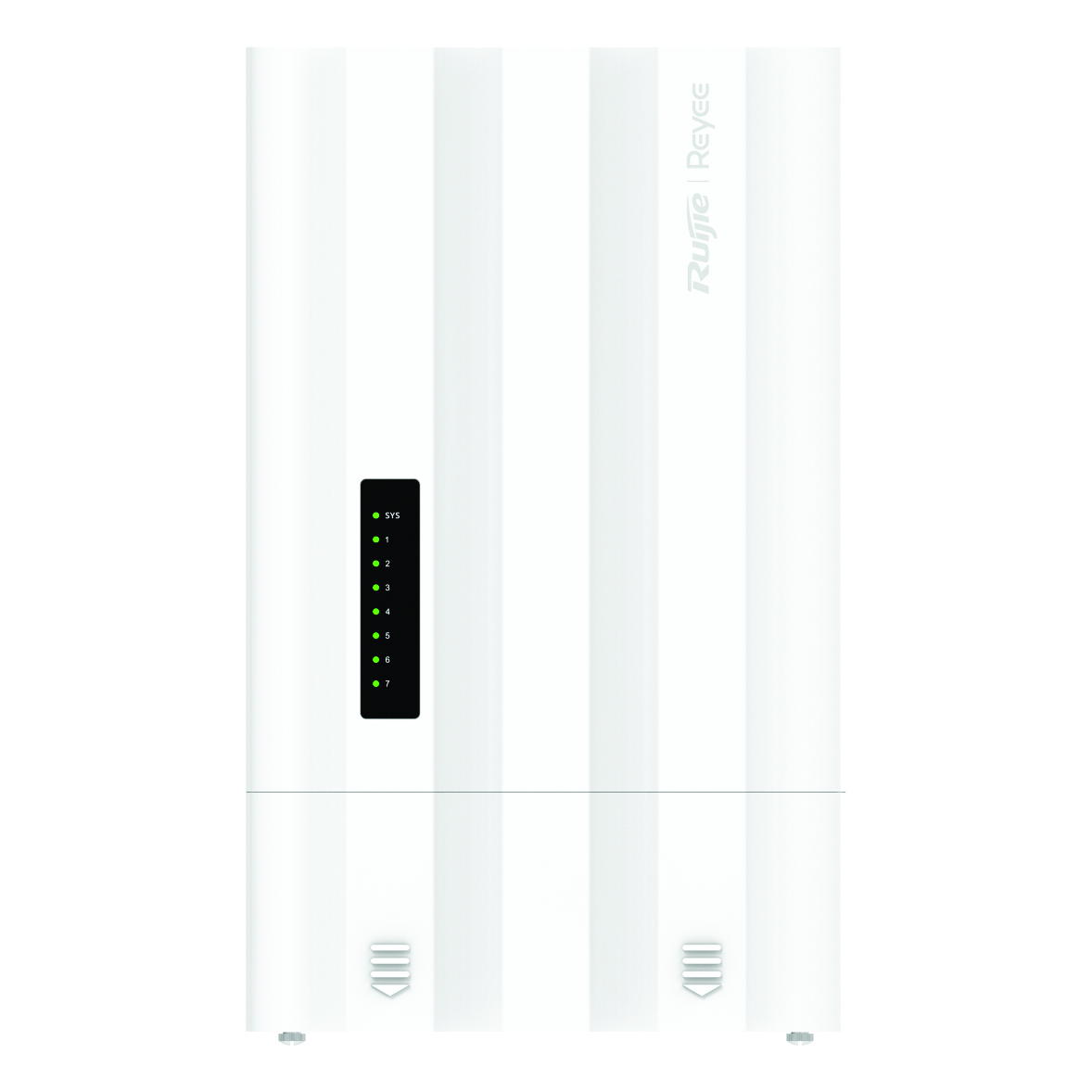

Front View
7-Port Gigabit Outdoor Switch with AC Input - 60 W
RG-ES207GS-AC-OD
Product Summary
The RG-ES207GS-AC-OD is a seven-port Gigabit Layer 2 smart cloud-managed outdoor PoE switch designed for CCTV, wireless and remote network installations. Its IP65 weatherproof enclosure integrates the switch, AC power supply, and outdoor protection into a single installation-ready unit. It features four Gigabit PoE/PoE+ ports with a 60 W budget, one additional Gigabit Ethernet port and two Gigabit SFP ports. ERPS, PoE watchdog, camera recognition and Ruijie Cloud management help maintain a reliable, easily managed outdoor network.
View More Networking and Data
3-Year Manufacturer’s Warranty
For full terms & conditions, please see – Ruijie Warranty T&Cs.
Features and Benefits
- Four Gigabit PoE/PoE+ ports with a 60 W power budget connect and power outdoor cameras, access points and other PoE devices.
- One additional Gigabit Ethernet port and two Gigabit SFP ports provide flexible copper and fibre network connections.
- IP65 weatherproof construction and a -30°C to +65°C operating range enable reliable performance in demanding outdoor environments.
- Integrated AC power and an all-in-one outdoor enclosure simplify installation, eliminating the need for a separate weatherproof switch cabinet.
- ERPS redundancy, PoE watchdog and uninterrupted PoE during warm restarts help minimise network and surveillance downtime.
- 8 kV port surge protection, camera recognition and lifetime-free Ruijie Cloud management provide protected, easily monitored operation.
Specifications
Hardware Specifications
Power Supply and Consumption
| PoE Out standard | PoE/PoE+ (IEEE 802.3af/at) |
| Number of PoE Out ports | 4 |
| Number of PoE/PoE+ Out ports | 4 |
| PoE budget | 60 W |
| PoE power pins | 1–2 (+), 3–6 (-) |
| Power input | 220 V AC power supply: • Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz • Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz • Maximum input current: 1.5 A |
| Maximum power consumption | 4.8 W (with no PoE load) 70 W (with full PoE load) |
| Power supply | Fixed power supply |
System Specifications
| Flash memory | 8 MB |
| Forwarding rate | 10.42 Mpps |
| Switching capacity | 14 Gbps(bit/s) |
Environment and Reliability
| Fan | Fanless design |
| Cooling | Natural cooling |
| Mounting options | Wall/Pole |
| Hot swapping of cables | Hot swapping supported by the service port and power connector |
| MTBF | 200,000 hours |
| Operating temperature | –30°C to +65°C (–22°F to 149°F) |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Storage humidity | 5% RH to 95% RH (non-condensing) |
| Altitude | –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) |
| ESD protection | Air discharge: 8 kV Contact discharge: 6 kV |
| Surge protection | Service port: ±8 kV for common mode Power connector: ±6 kV for common mode and ±6 kV for differential mode |
Certification and Regulatory Compliance
| EMC | EN 55032 EN IEC 61000-3-2 EN 61000-3-3 EN 55035 EN 300 386 |
| Safety compliance | EN 62368-1 IEC 62368-1 |
| Certification | CE, CB |
Port Specifications
| Total number of RJ45 ports | 5 |
| Total number of optical ports | 2 |
| Number of 1GE SFP ports | 2 |
| Number of 10/100/1000BASE-T ports | 5 |
| Reset button | 1 |
Product Information
| Warranty | 3 years |
Dimensions and Weight
| Casing | Plastic |
| Product dimensions (W x D x H) | 328 mm x 200 mm x 62.8 mm (12.91 in. x 7.87 in. x 2.47 in.) |
| Weight | 1.38 kg (3.04 lbs) (without packaging materials) |
| Shipping weight | 2.17 kg (4.78 lbs) |
Software Specifications
Multicast
| IGMPv1 snooping | No |
| IGMPv2 snooping | No |
| Basic IGMPv3 snooping | No |
| Full IGMPv3 snooping | No |
| IGMP filtering | No |
| IGMPv1, v2, and v3 | No |
Interface
| Jumbo frame length (MTU) | 9216 bytes |
| EEE | Yes |
| Cable test | Yes |
Authentication
| RADIUS | No |
| 802.1X authentication | No |
IP Service
| ARP | No |
| IPv4 ping | Yes |
| IPv4 traceroute | No |
| ICMPv6 | No |
| IPv6 ping | No |
| IPv6 traceroute | No |
| DNS client | Yes |
| DHCP client | Yes |
Ethernet Switching
| Maximum number of VLANs | 32 |
| Maximum number of MAC address entries | 2000 |
| Interface flow control | Yes |
| IEEE 802.1Q VLAN | Yes |
| LLDP | No |
| LLDP-MED | No |
| Static MAC address | Yes |
| Static aggregation | Yes |
| LACP | No |
| Inbound or outbound rate limiting based on interface traffic | Yes |
Basic Configurations
| PoE watchdog | Yes |
| Uninterruptible power supply upon warm start | Yes |
| Online upgrade | Yes |
Network Management and Monitoring
| Mirroring | Yes |
| HTTP login | Yes |
| HTTPS login | Yes |
| SON | Yes |
| Syslog | No |
| Camera detection | Yes |
| eWeb management | Yes |
| Ruijie Cloud management | Yes |
| Ruijie Reyee App management | Yes |
| SNMPv1, v2c, and v3 | No |
Reliability
| Load balancing | No |
| ERPS | Yes |
System Performance Capacity
| Recommended camera limit | 200W H265: 40 400W H265: 20 |
Security
| Port isolation | Yes |
| Broadcast storm control | Yes |
| Multicast storm control | Yes |
| Unknown unicast storm control | Yes |
| DHCP snooping | Yes |
| Standard ACL | No |
| Extended MAC ACL | No |
| Extended IP ACL | No |
| IPv6 ACL | No |
| ARP anti-spoofing | No |
| CPU Protection Policy | Yes |
Gateway Features
| 802.1p priority-based traffic classification | No |
| DSCP priority-based traffic classification | No |
IP Routing
| IPv4 static route | No |
| IPv6 static route | No |
| OSPFv2 | No |
| OSPFv3 | No |
Package Contents
Manual
| User Manual | 1 |
| Warranty Card | 1 |
Device
| Device | 1 |
Accessories
| Screw | 4 x ST4.2 x 19 mm screws |
| Mounting bracket | 1 |
| Hose clamp | 2 |
| Expansion anchor | 4 |
| Terminal block | 1 |
