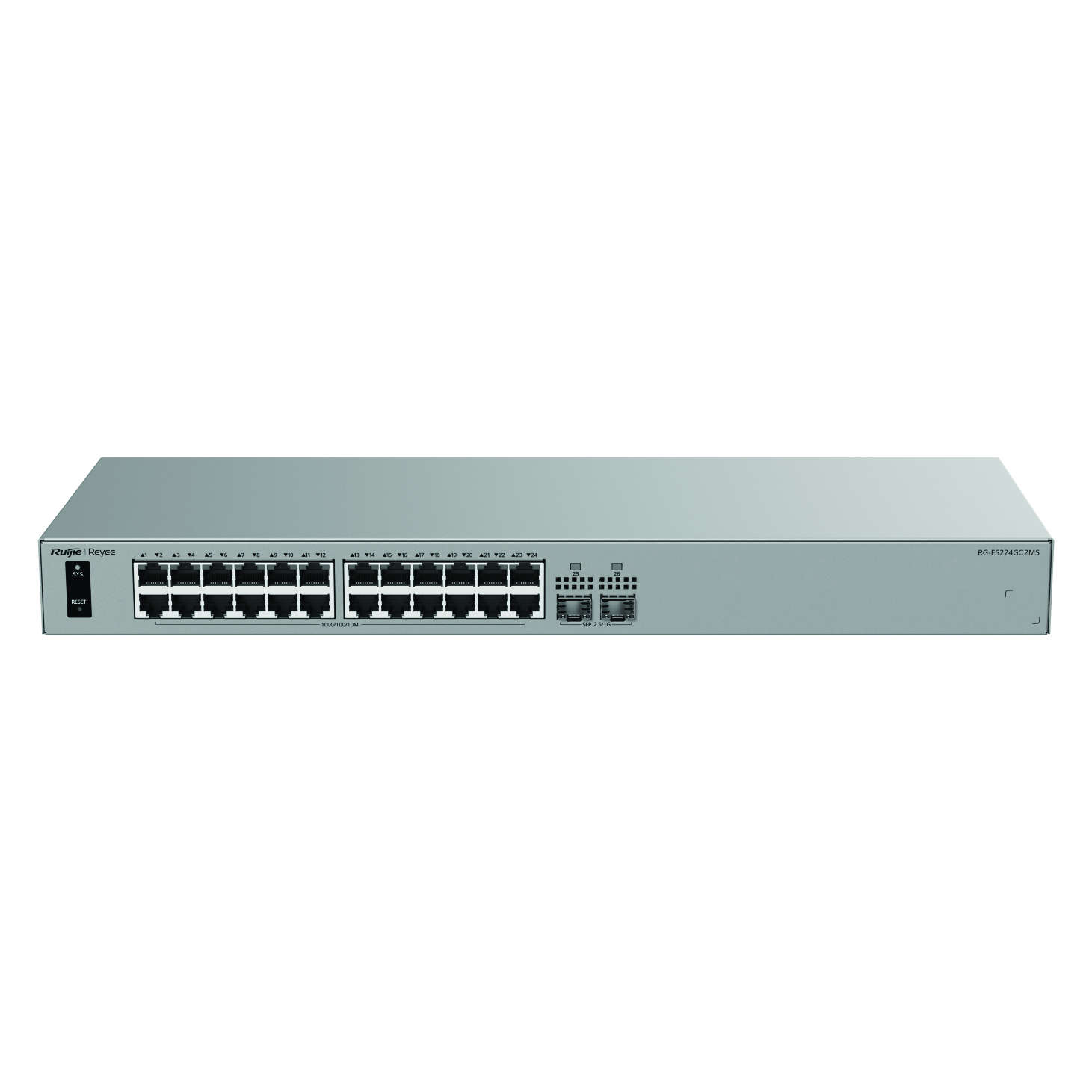

Front View

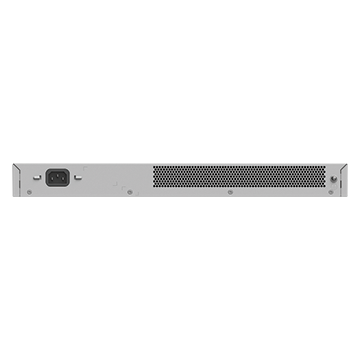

Rear View
24 Port Gigabit Layer 2 Smart Cloud-Managed Non-PoE Network Switch (24x RJ45 GbE, 2x 2.5GE SFP)
RG-ES224GC2MS
Product Summary
The RG-ES224GC2MS is an 26-port Layer 2 smart cloud-managed switch designed for business and CCTV networks. It features 24 Gigabit Ethernet ports and two 2.5 Gigabit SFP ports for high-speed fibre uplinks and ERPS network redundancy. Static link aggregation, VLAN support, AI-powered failover and comprehensive traffic controls help improve network performance and reliability. Lifetime-free Ruijie Cloud management enables convenient remote configuration, monitoring and maintenance.
View More Networking and Data
3-Year Manufacturer’s Warranty
For full terms & conditions, please see – Ruijie Warranty T&Cs.
Features and Benefits
- 24 Gigabit Ethernet ports provide fast, reliable connectivity for computers, cameras, access points and other network devices.
- Two 2.5 Gigabit SFP ports deliver high-speed fibre uplinks, helping reduce bottlenecks and expand network connectivity.
- ERPS network redundancy helps maintain service continuity by providing rapid recovery if a network link fails.
- Static link aggregation combines multiple connections to increase bandwidth and improve uplink reliability.
- Lifetime-free Ruijie Cloud and Reyee App management enable remote configuration, monitoring and maintenance.
- VLANs, port isolation, cable testing and traffic controls improve network organisation, security and troubleshooting.
Specifications
Hardware Specifications
Product Information
| Warranty | 3 years |
Port Specifications
| Total number of RJ45 ports | 24 |
| Total number of optical ports | 2 |
| Number of 2.5GE SFP ports | 2 |
| Number of 10/100/1000BASE-T ports | 24 |
| Reset button | 1 |
Power Supply and Consumption
| Power input | 220 V AC power supply: • Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz • Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz • Rated input current: 0.6 A |
| Maximum power consumption | 18 W |
| Power supply | Fixed power supply |
System Specifications
| Flash memory | 8 MB |
| Forwarding rate | 43.15 Mpps |
| Switching capacity | 58 Gbps(bit/s) |
Dimensions and Weight
| Casing | Metal |
| Product dimensions (W x D x H) | 440 mm x 165 mm x 44 mm (17.32 in. x 6.50 in. x 1.73 in.) |
| Weight | 1.74 kg (3.84 lbs) (without packaging materials) |
| Shipping weight | 2.59 kg (5.71 lbs) |
Environment and Reliability
| Fan | Fanless design |
| Cooling | Natural cooling |
| Mounting options | Rack/Desk |
| Hot swapping of cables | Hot swapping supported by the service port and power connector |
| MTBF | 200,000 hours |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Storage humidity | 5% RH to 95% RH (non-condensing) |
| Altitude | –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) |
| ESD protection | Air discharge: 8 kV Contact discharge: 6 kV |
| Surge protection | Service port: ±6 kV for common mode Power connector: ±6 kV for common mode and ±6 kV for differential mode |
Certification and Regulatory Compliance
| EMC | EN 55032 EN IEC 61000-3-2 EN 61000-3-3 EN 55035 EN 300 386 |
| Safety compliance | EN 62368-1 IEC 62368-1 |
| Certification | CE, CB |
Software Specifications
Authentication
| RADIUS | No |
| 802.1X authentication | No |
Basic Configurations
| Online upgrade | Yes |
Ethernet Switching
| Maximum number of VLANs | 32 |
| Maximum number of MAC address entries | 16000 |
| Interface flow control | Yes |
| IEEE 802.1Q VLAN | Yes |
| LLDP | No |
| LLDP-MED | No |
| Static MAC address | Yes |
| Static aggregation | Yes |
| LACP | No |
| Inbound or outbound rate limiting based on interface traffic | Yes |
Gateway Features
| 802.1p priority-based traffic classification | No |
| DSCP priority-based traffic classification | No |
Interface
| Jumbo frame length (MTU) | 12000 bytes |
| EEE | Yes |
| Cable test | Yes |
IP Routing
| IPv4 static route | No |
| IPv6 static route | No |
| OSPFv2 | No |
| OSPFv3 | No |
IP Service
| ARP | No |
| IPv4 ping | Yes |
| IPv4 traceroute | No |
| ICMPv6 | No |
| IPv6 ping | No |
| IPv6 traceroute | No |
| DNS client | Yes |
| DHCP client | Yes |
Multicast
| IGMPv1 snooping | No |
| IGMPv2 snooping | No |
| Basic IGMPv3 snooping | No |
| Full IGMPv3 snooping | No |
| IGMP filtering | No |
| IGMPv1, v2, and v3 | No |
Network Management and Monitoring
| Mirroring | Yes |
| HTTP login | Yes |
| HTTPS login | Yes |
| SON | Yes |
| Syslog | No |
| Camera detection | Yes |
| eWeb management | Yes |
| Ruijie Cloud management | Yes |
| Ruijie Reyee App management | Yes |
| SNMPv1, v2c, and v3 | No |
Reliability
| Load balancing | No |
| ERPS | Yes |
Security
| Port isolation | Yes |
| Broadcast storm control | Yes |
| Multicast storm control | Yes |
| Unknown unicast storm control | Yes |
| DHCP snooping | Yes |
| Standard ACL | No |
| Extended MAC ACL | No |
| Extended IP ACL | No |
| IPv6 ACL | No |
| ARP anti-spoofing | No |
| CPU Protection Policy | Yes |
System Performance Capacity
| Recommended camera limit | 200W H265: 100 400W H265: 50 |
Package Contents
Device
| Device | 1 |
Accessories
| Rubber pad | 4 |
| Power cord retention clip | 1 |
| Screw | 6 x M4 x 8 mm cross recessed countersunk head screws |
| Power cord | 1 x 1.8 m (5.91 ft.) |
| Rack-mount bracket | 2 |
Manual
| User Manual | 1 |
| Warranty Card | 1 |
