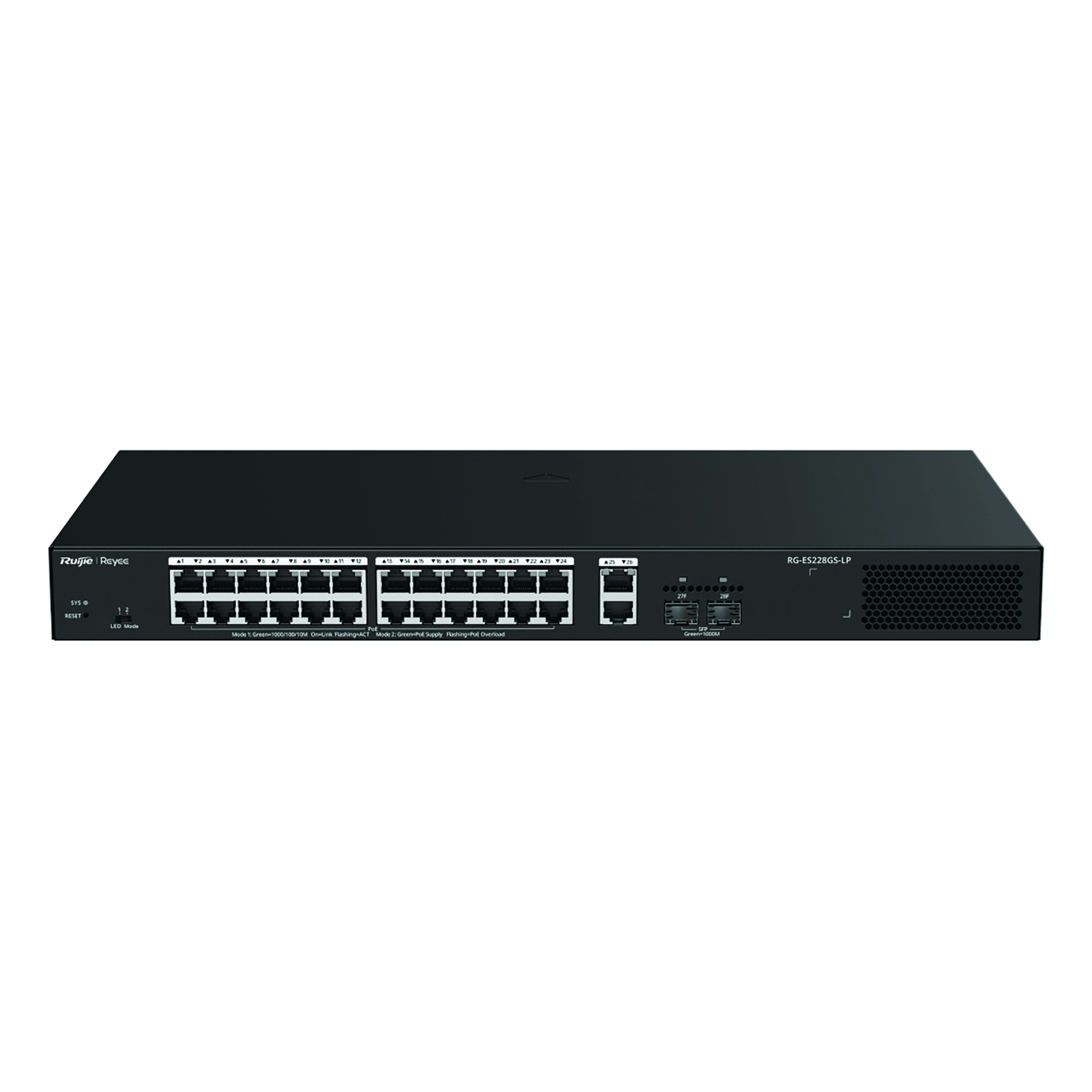

Front View

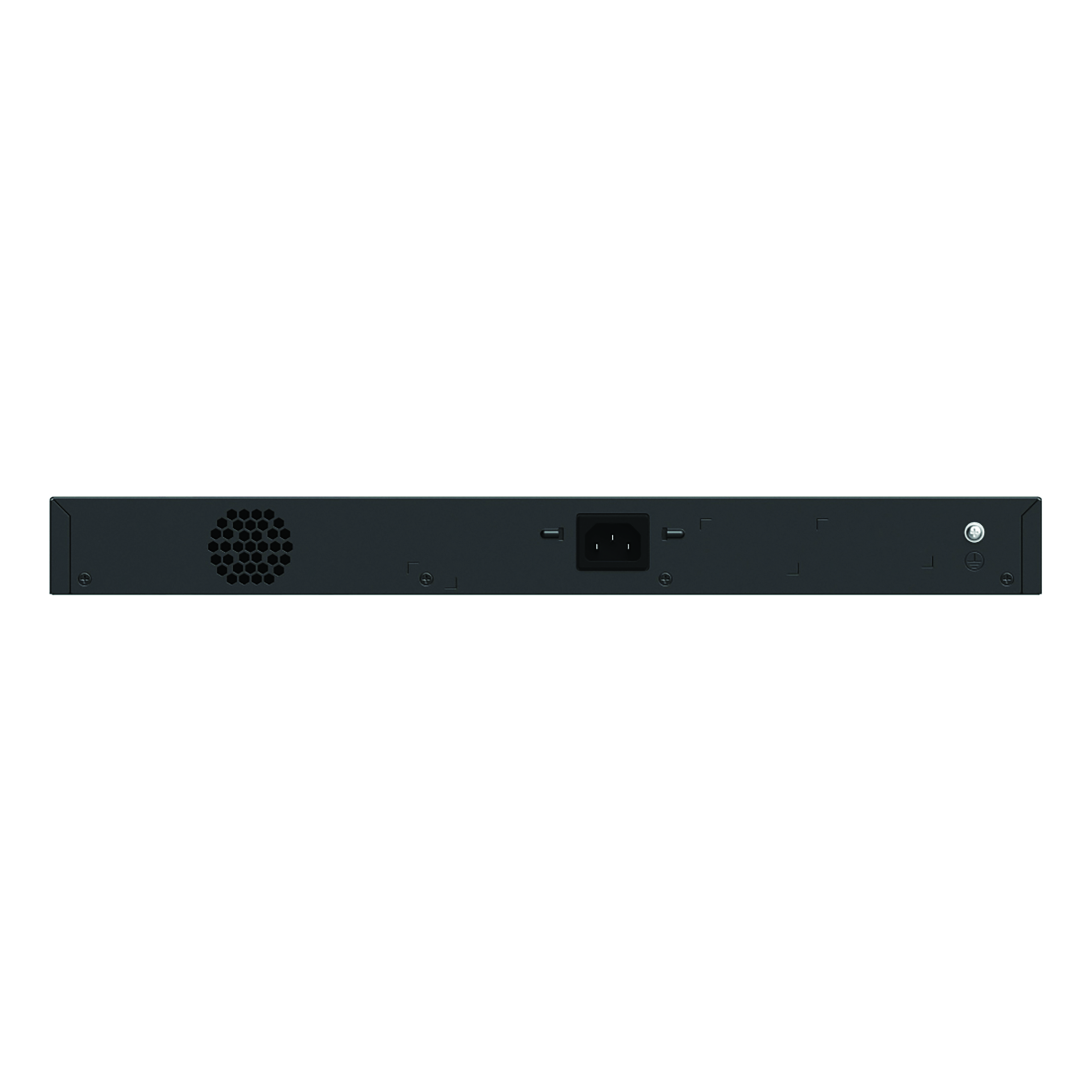

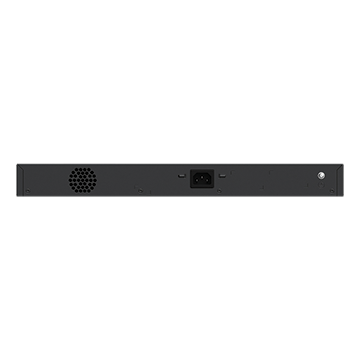

Rear View
28 Port Gigabit Managed Network Switch (24 PoE+ Ports, 2 RJ45 GbE Ports plus 2 SFP) 250 W
RG-ES228GS-LP
Product Summary
The RG-ES228GS-LP is a 28-port Gigabit smart cloud-managed PoE switch designed for reliable business and CCTV networks. It features 26 Gigabit Ethernet ports, including 24 PoE/PoE+ ports with a 250 W power budget, plus two Gigabit SFP ports for fibre uplinks. Ruijie Cloud management enables remote monitoring and configuration, while camera recognition, PoE watchdog, automatic loop prevention and VLAN support simplify management and improve network reliability. Its fanless metal design supports quiet desktop or rack-mount installation.
View More Networking and Data
3-Year Manufacturer’s Warranty
For full terms & conditions, please see – Ruijie Warranty T&Cs.
Features and Benefits
- 24 Gigabit PoE/PoE+ ports with a 250 W power budget simplify connecting and powering IP cameras, access points, and other PoE devices.
- Two additional Gigabit Ethernet ports and two Gigabit SFP ports provide flexible high-speed copper and fibre uplink options.
- Lifetime-free Ruijie Cloud and Reyee App management enable convenient remote configuration, monitoring and maintenance.
- IP camera recognition and PoE watchdog simplify CCTV management and automatically restart unresponsive connected cameras.
- Automatic loop prevention helps avoid network disruptions and maintain reliable service continuity.
- Supports VLANs, port isolation, traffic control and storm control, improving network performance, organisation and security.
Specifications
Hardware Specifications
Power Supply and Consumption
| PoE Out standard | PoE/PoE+ (IEEE 802.3af/at) |
| Number of PoE Out ports | 24 |
| Number of PoE/PoE+ Out ports | 24 |
| PoE budget | 250W |
| PoE power pins | 1-2 (+), 3-6 (-) |
| Power input | 220 V AC power supply: • Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz • Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz • Rated input current: 6 A |
| Maximum power consumption | Less than 21W with no PoE load（110V） Less than 20W with no PoE load（220V） Less than 302W with PoE full load（110V） Less than 294W with PoE full load（220V） |
| Power supply | Fixed power supply |
System Specifications
| Flash memory | 8 MB |
| Forwarding rate | 41.664 Mpps |
| Switching capacity | 56 Gbps(bit/s) |
Environment and Reliability
| Fan | 1 x fixed fan |
| Cooling | Air cooling, front-to-rear airflow |
| Acoustic noise | < 40 dB: 25°C (77°F) |
| Mounting options | Desk/Rack |
| Hot swapping of cables | Hot swapping supported by the service port and power connector |
| MTBF | 200,000 hours |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Storage humidity | 5% RH to 95% RH (non-condensing) |
| Altitude | -500 m to +5,000 m (-1,640.42 ft. to +16,404.20 ft.) |
| ESD protection | Air discharge: 8 kV Contact discharge: 6 kV |
| Surge protection | Service port: ±6 kV for common mode Power connector: ±6 kV for common mode and ±6 kV for differential mode |
Dimensions and Weight
| Casing | Metal |
| Product dimensions (W x D x H) | 440 mm x 214.9 mm x 43.2 mm (17.32 in. x 8.46 in. x 1.70 in.) |
| Weight | 2.80 kg (4.63 lbs) (without packaging materials) 3.85 kg (6.83 lbs) (with packaging materials) |
| Shipping weight | 3.85kg (8.12 lbs) |
Port Specifications
| Total number of RJ45 ports | 26 |
| Total number of optical ports | 2 |
| Number of 1GE SFP ports | 2 |
| Number of 10/100/1000BASE-T ports | 26 |
| Reset button | 1 |
Product Information
| Warranty | 3 years |
Certification and Regulatory Compliance
| EMC | EN 55032 EN 61000-3-2 EN 61000-3-3 EN 55035 EN 300 386 |
| Safety compliance | EN 62638-1 |
| Certification | CE, CB |
Software Specifications
Authentication
| RADIUS | No |
| 802.1X authentication | No |
Basic Configurations
| PoE watchdog | Yes |
| Uninterruptible power supply upon warm start | No |
| Online upgrade | Yes |
Gateway Features
| 802.1p priority-based traffic classification | No |
| DSCP priority-based traffic classification | No |
Network Management and Monitoring
| Fan speed adjustment | Automatic speed adjustment |
| Mirroring | Yes |
| HTTP login | Yes |
| HTTPS login | Yes |
| SON | Yes |
| Syslog | No |
| Camera detection | Yes |
| eWeb management | Yes |
| Ruijie Cloud management | Yes |
| Ruijie Reyee App management | Yes |
| SNMPv1, v2c, and v3 | No |
Security
| Port isolation | Yes |
| Broadcast storm control | Yes |
| Multicast storm control | Yes |
| Unknown unicast storm control | Yes |
| DHCP snooping | Yes |
| Standard ACL | No |
| Extended MAC ACL | No |
| Extended IP ACL | No |
| IPv6 ACL | No |
| ARP anti-spoofing | No |
| CPU Protection Policy | Yes |
IP Service
| ARP | No |
| IPv4 ping | No |
| IPv4 traceroute | No |
| ICMPv6 | No |
| IPv6 ping | No |
| IPv6 traceroute | No |
| DNS client | Yes |
| DHCP client | Yes |
Ethernet Switching
| Maximum number of VLANs | 16 |
| Maximum number of MAC address entries | 8000 |
| Interface flow control | Yes |
| IEEE 802.1Q VLAN | Yes |
| VLAN configuration supported on LAN ports | Yes |
| LLDP | No |
| LLDP-MED | No |
| Static MAC address | Yes |
| Static aggregation | No |
| LACP | No |
| Inbound or outbound rate limiting based on interface traffic | Yes |
Interface
| Jumbo frame length (MTU) | 10000 bytes |
| EEE | Yes |
| Cable test | Yes |
IP Routing
| IPv4 static route | No |
| IPv6 static route | No |
| OSPFv2 | No |
| OSPFv3 | No |
Multicast
| IGMPv1 snooping | No |
| IGMPv2 snooping | No |
| Basic IGMPv3 snooping | No |
| Full IGMPv3 snooping | No |
| IGMP filtering | No |
| IGMPv1, v2, and v3 | No |
System Performance Capacity
| Recommended camera limit | 200W H265: 80 400W H265: 40 |
Package Contents
Device
| Device | 1 |
Accessories
| Rubber pad | 4 |
| Power cord retention clip | 1 |
| Screw | 6 X M4 x 8 mm cross recessed countersunk head screws |
| Power cord | 1 x 1.8 m (5.91 ft.) |
| Rack-mount bracket | 2 |
Manual
| User Manual | 1 |
| Warranty Card | 1 |
