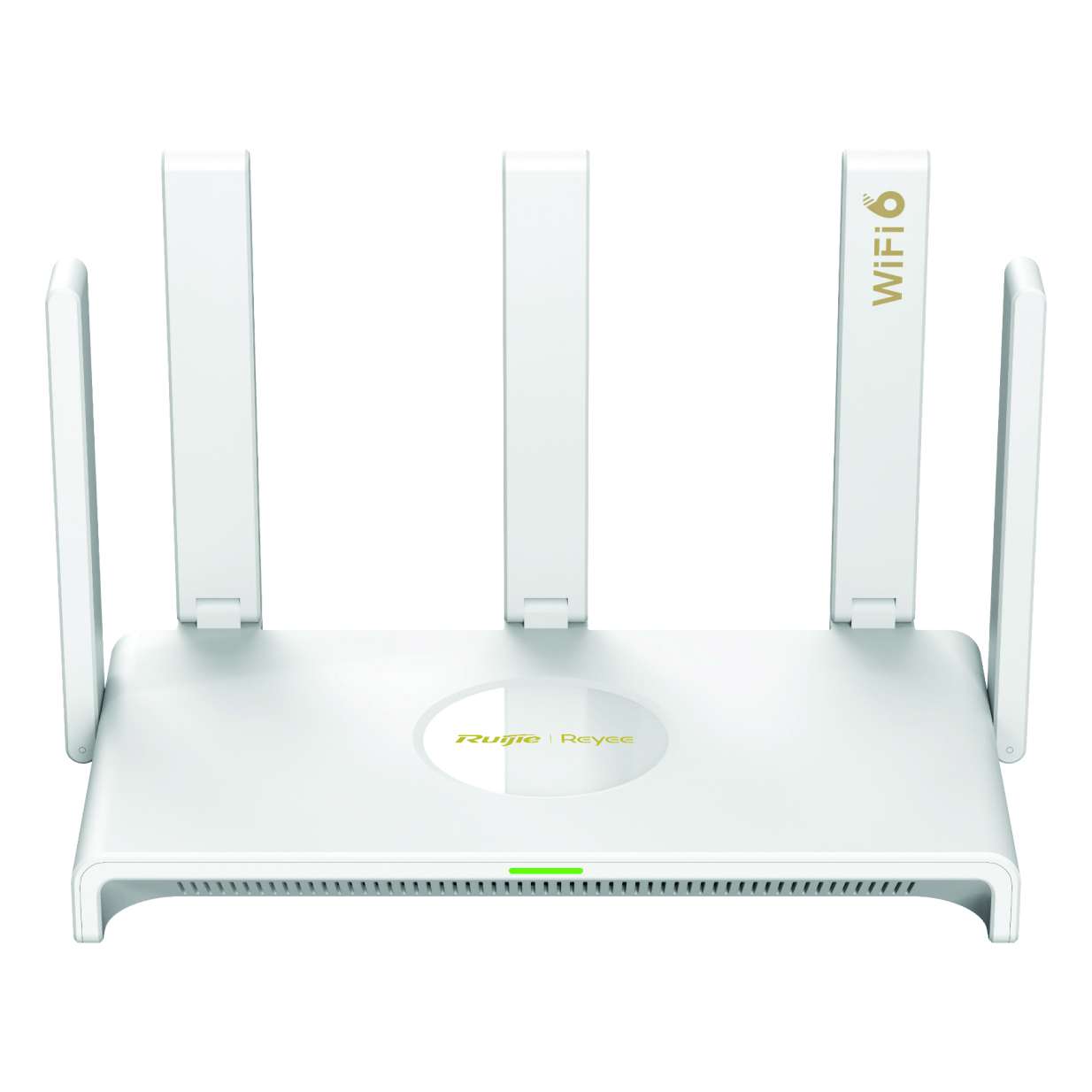

Front View

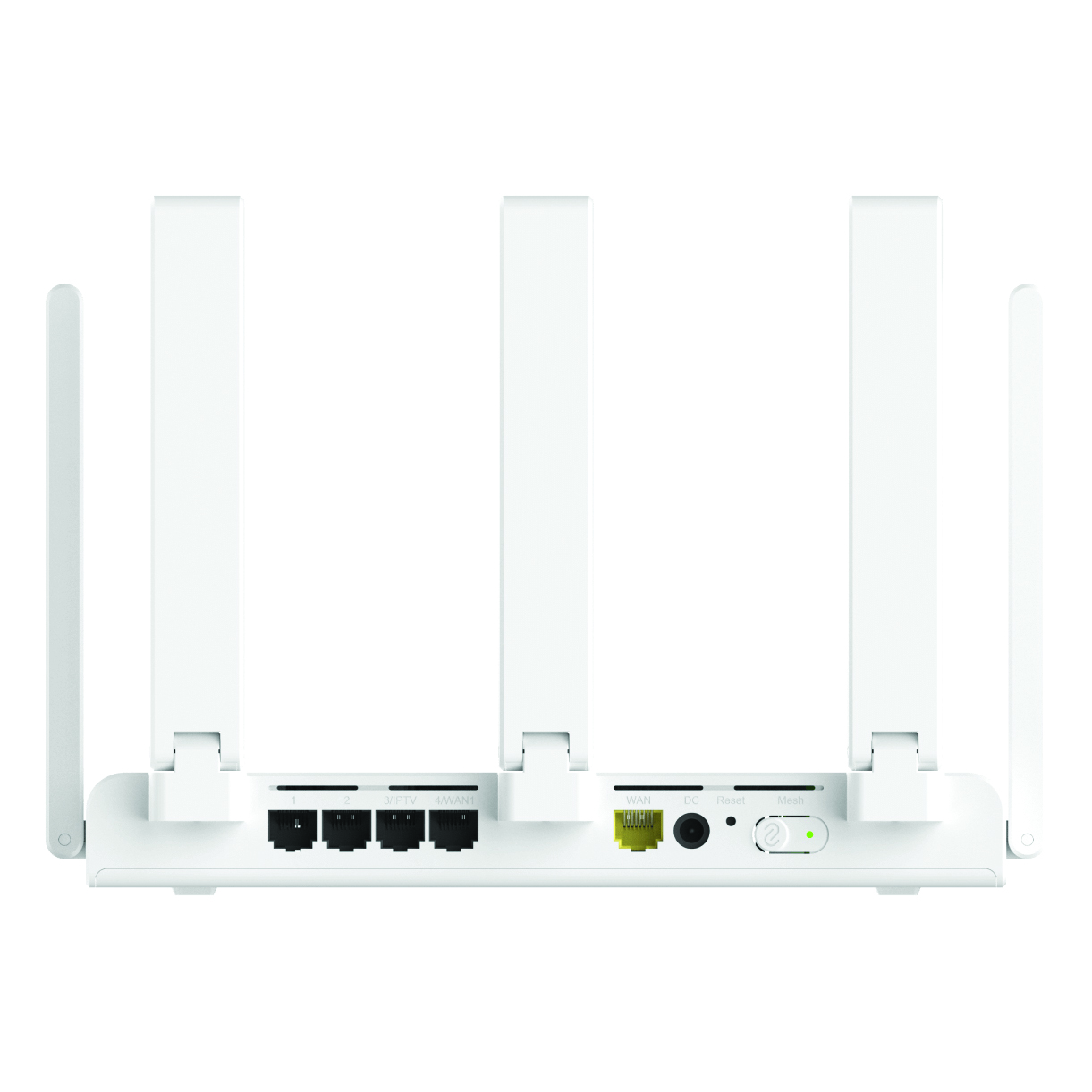

Rear View
Wi-Fi 6 Meshing Gigabit Router Dual-band 802.11ax AX3000, Up to 2 WAN Load Balanced
RG-EW3000GX
Former Part No. 57MM-WR06
Product Summary
The RG-EW3000GX is an AX3000 dual-band Wi-Fi 6 router designed to provide fast, reliable connectivity throughout the modern home. It delivers combined wireless speeds up to 2.976 Gbps, supports 160 MHz channels and features five external antennas for dependable coverage. Dual-WAN aggregation, Reyee Mesh 3.0 and Ruijie Cloud management help improve network performance, expand coverage and simplify everyday control.
View More Networking and Data
3-Year Manufacturer’s Warranty
For full terms & conditions, please see – Ruijie Warranty T&Cs.
Features and Benefits
- AX3000 dual-band Wi-Fi 6 delivers combined wireless speeds up to 2.976 Gbps for smooth streaming, downloads and everyday connectivity.
- 160 MHz channel bandwidth and 1024-QAM support faster data transmission for compatible Wi-Fi 6 devices.
- OFDMA improves wireless efficiency and capacity, supporting up to 80 recommended concurrent clients across both bands.
- Dual-WAN aggregation combines compatible internet connections to increase available bandwidth and improve network performance.
- Five external antennas provide reliable Wi-Fi coverage, while Reyee Mesh 3.0 makes it easy to expand connectivity throughout larger homes.
- Ruijie Cloud management, parental controls, guest Wi-Fi and client rate limiting provide convenient visibility and control over the home network.
Specifications
Basic
| Dimensions（W×D×H） | 240 mm × 130 mm × 32 mm (9.45 in. × 5.11 in. × 1.25 in. antennas not included) |
| Weight | 0.50 kg (packages not included) |
| Wi-Fi Standards | Wi-Fi 6 (802.11ax) |
| MIMO | 2.4 GHz, 2×2, MU-MIMO 5 GHz, 2×2, MU-MIMO |
| Max. Wi-Fi Speed | 2.4 GHz: 574 Mbps 5 GHz: 2402 Mbps |
| Channel Width | 2.4 GHz: Auto/20/40 MHz 5 GHz: Auto/20/40/80/160 MHz |
| Antennas | 5 |
| Antennas Type | External Omnidirectional |
| Antenna Gain | 2.4 GHz: 5 dBi 5 GHz: 5 dBi |
| Ports | 1×10/100/1000 Base-T WAN/LAN port 1×10/100/1000 Base-T WAN port 3×10/100/1000 Base-T LAN ports |
| Recommended Users | 60 |
| Max. Users | 192 |
| Power Supply | DC 12V/1.0A |
| Power Consumption | < 12 W |
| Operation Frequency Bands | 802.11b/g/n/ax: 2.400 GHz to 2.483 GHz 802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz 802.11a/n/ac/ax: 5.470 GHz to 5.725 GHz , 5.725 GHz to 5.850 GHz country-specific restrictions apply |
| Transmit Power | General： CE EIRP：≤20dBm (2.4GHz) ≤27dBm (5GHz) Myanmar： 2400~2483.5MHz ≤ 20dBm(EIRP)； 5150~5350MHz ≤ 23dBm(EIRP)； 5470~5725MHz ≤ 30dBm(EIRP)； 5725~5850MHz ≤ 30dBm(EIRP)； |
| Receive Sensitivity | 2.4 GHz:20MHz 802.11b: -91 dBm(1 Mbps) 802.11g: -91 dBm(6 Mbps), -72 dBm(54 Mbps) 802.11n: -90dBm(MCS0), -70 dBm(MCS7) 5 GHz:20MHz 802.11n: -85 dBm(MCS0), -67 dBm(MCS7) 802.11a: -89 dBm(6 Mbps), -72 dBm(54 Mbps) 802.11ac: -90dBm(MCS0), -63dBm(MCS8) 802.11ax: -88dBm(MCS0), -62dBm(MCS8), -58dBm(MCS11) |
| Operating Temperature | -10 °C to +40 °C (14 °F to 104 °F) |
| Operating Humidity | 5% to 95% Noncondensing |
| Certifications | CE |
Wireless
| OFDMA | - |
| MU-MIMO | ✔ |
| BSS Coloring | ✔ |
| Maximum Number of SSIDs | 6 |
| SSID Hiding | ✔ |
| Band Steering | ✔ |
| Guest Wi-Fi | ✔ |
| WPA/WPA2 | ✔ |
| WPA3 | ✔ |
| Roaming | Layer 2 Roaming |
| Blocklist | ✔ |
| Reyee Mesh | ✔ |
| Mesh Pairing by Hardware | ✔ |
| Mesh Pairing by Mesh Button | ✔ |
| Mesh Pairing by Eweb | ✔ |
| Recommended Hop Count | ≤2 |
| Wi-Fi Optimization | ✔ |
| QoS (WMM) | ✔ |
| WPS | - |
| Transmission Power Adjustment | ✔ |
Hardware
| CPU | MT7981 |
| Flash | 128 MB |
| RAM/SDRAM | 256 MB |
| Color | White |
| System LED Indicator | ✔ |
| Reyee Mesh LED Indicator | ✔ |
| Reyee Mesh Button | ✔ |
| Power Button | - |
| Reset Button | ✔ |
| DC Connector Dimensions | Outer Diameter: 5.5 mm Inner Diameter: 2.1 mm Length: 9.5 mm (Outer Diameter: 0.22 in. Inner Diameter: 0.08 in. Length: 0.37 in. ) |
WAN
| Static IP | ✔ |
| DHCP | ✔ |
| PPPoE | ✔ |
| L2TP | ✔ |
| Learning PPPoE Account & Password | ✔ |
| VLAN Tagging | ✔ |
LAN
| DHCP Server | ✔ |
| Client List | ✔ |
| Static IP Assignment | ✔ |
| Port-Based Flow Control | ✔ |
Features
| IPv6 | ✔ |
| DDNS | ✔ |
| IPTV | ✔ |
| Alarm | ✔ |
| Diagnosis | ✔ |
| UPnP | ✔ |
| ARP Binding | ✔ |
| Port Mapping | ✔ |
| DMZ Host | ✔ |
| Rate Limitation of Terminals | ✔ |
| Hardware Acceleration | ✔ |
| MAC Address Cloning | ✔ |
| Cloud Management | ✔ |
| Repeater Mode | ✔ |
| WISP Mode | ✔ |
| AP Mode | ✔ |
Security
| PPTP VPN Server | ✔ |
| PPTP VPN Client | ✔ |
| L2TP VPN Client | - |
| Parental Control | Time Schedule |
| Protect TCP Flood Attacks | ✔ |
| Protect ICMP Attacks | - |
| Protect UDP Flood Attacks | - |
System
| Default Access/Password | 192.168.110.1 No Password Required by Default |
| URL Access | ✔ |
| Local Upgrade | ✔ |
| Online Upgrade | ✔ |
| APP Upgrade | ✔ |
| Syslog | ✔ |
| Backup | ✔ |
| Factory Reset | ✔ |
| Language | Chinese English Vietnamese Turkish Indonesian Thai traditioanl Chinese Spanish Russian Arabic Ukrainian Czech Italian |
Package Contents
| Wireless Router | 1 |
| Power Adapter | 1 |
| Quick Start Guide | 1 |
| Warranty Card | 1 |
| Cat5E UTP Cable | 1 |
