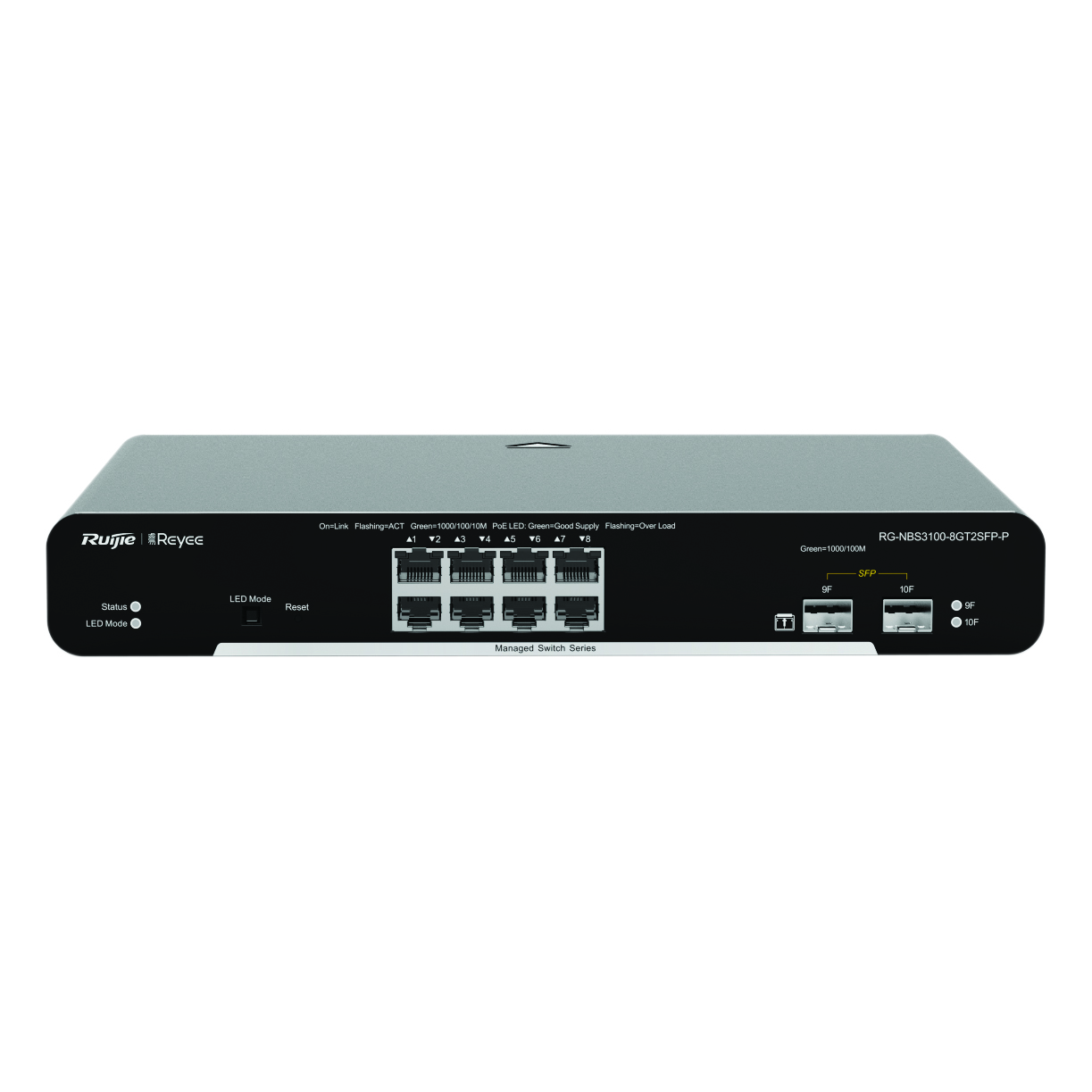

Front View

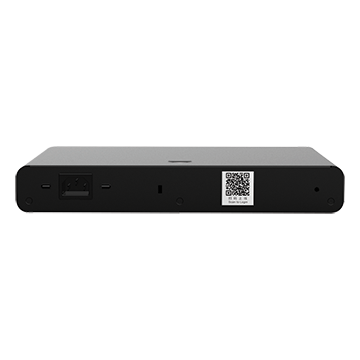

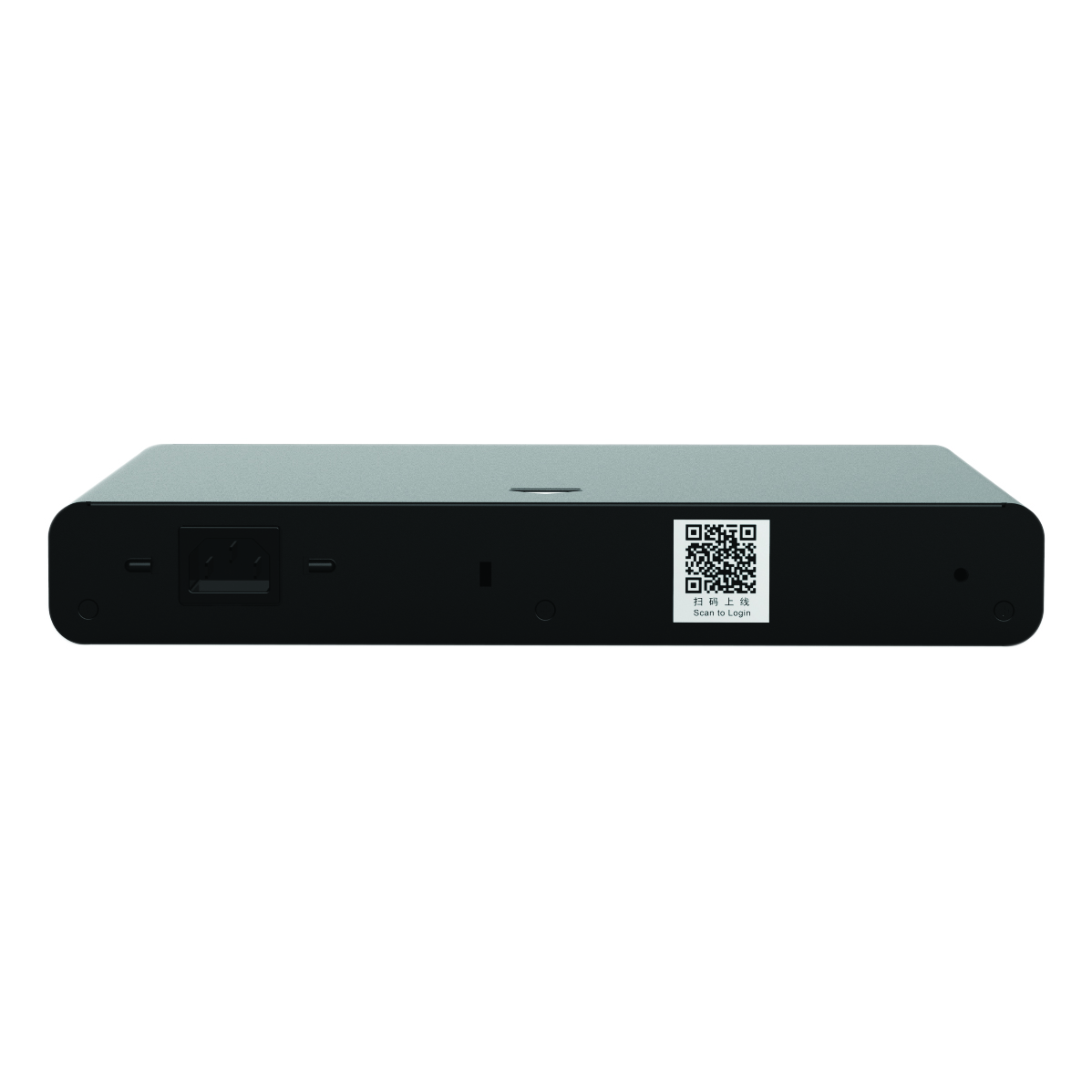

Rear View
10 Port Gigabit Layer 2 Cloud Managed PoE Switch - 125 W
RG-NBS31-8G2S-P
Former Part No. 57MM-SW10P
Product Summary
The RG-NBS31-8G2S-P is a 10-port Gigabit Layer 2 cloud-managed PoE switch designed for business, CCTV and enterprise networks. It features eight Gigabit PoE/PoE+ ports with a 125 W power budget and two Gigabit SFP uplinks for flexible fibre connectivity. Advanced VLAN, QoS, link aggregation and security functions help optimise and protect the network, while camera recognition and PoE watchdog simplify surveillance management. Lifetime-free Ruijie Cloud management enables convenient remote monitoring and maintenance.
View More Networking and Data
5-Year Manufacturer’s Warranty
For full terms & conditions, please see – Ruijie Warranty T&Cs.
Features and Benefits
- Eight Gigabit PoE/PoE+ ports with a 125 W power budget provide high-speed data and power for cameras, access points and other PoE devices.
- Two Gigabit SFP uplinks enable flexible, long-distance fibre connections to switches and network infrastructure.
- Lifetime-free Ruijie Cloud and Reyee App management allow convenient remote configuration, monitoring and maintenance.
- IP camera recognition and PoE watchdog simplify CCTV management and automatically restart unresponsive cameras.
- VLANs, QoS and link aggregation help organise network traffic, prioritise critical services and improve connection performance.
- Advanced security, loop protection and a five-year warranty deliver reliable, protected operation for business networks.
Specifications
Hardware Specifications
Port Specifications
| Total number of RJ45 ports | 8 |
| Total number of optical ports | 2 |
| Number of 1GE combo ports | No |
| Number of 1GE SFP ports | 2 |
| Number of 10GE SFP+ ports | No |
| Number of 10/100BASE-T ports | No |
| Number of 10/100/1000BASE-T ports | 8 |
| Number of 10/100/1000/2500BASE-T ports | No |
| Number of 100/1000/2.5G/5G/10GBASE-T ports | No |
| Module slots | No |
| Reset button | 1 |
| DIP switch | Moving the switch to the left (Mode 1): The port LED indicates the switch status. Moving the switch to the right (Mode 2): The port LED indicates the PoE status. |
Power Supply and Consumption
| PoE Out standard | PoE/PoE+ (IEEE 802.3af/at) |
| Number of PoE Out ports | 8 |
| Number of PoE/PoE+ Out ports | 8 |
| Number of PoE/PoE+/PoE++ Out ports | No |
| PoE budget | 125 W |
| PoE power pins | 1–2 (+), 3–6 (-) |
| Power input | 220 V AC power supply: • Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz • Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz • Maximum input current: 2.5 A |
| Maximum power consumption | 11 W (with no PoE load) 145 W (with full PoE load) |
| Power output | No |
| Power supply | Fixed power supply |
System Specifications
| RAM | 256 MB |
| Flash memory | 16 MB |
| Forwarding rate | 14.88 Mpps |
| Switching capacity | 20 Gbps(bit/s) |
Dimensions and Weight
| Casing | Metal |
| Product dimensions (W x D x H) | 300 mm x 205 mm x 44 mm (11.81 in. x 8.07 in. x 1.73 in.) |
| Weight | 1.80 kg (3.97 lbs) (without packaging materials) |
| Shipping weight | 2.50 kg (5.51 lbs) |
Environment and Reliability
| Hot swapping of fan modules | No |
| Fan | Fanless design |
| Cooling | Natural cooling |
| Acoustic noise | No |
| Mounting options | Rack |
| Hot swapping of cables | Service ports support hot swapping of cables. |
| MTBF | 400,000 hours |
| Operating temperature | 0°C to +50°C (32°F to 122°F) |
| Storage temperature | −40°C to +70°C (−40°F to +158°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Storage humidity | 5% RH to 95% RH (non-condensing) |
| Altitude | Operating altitude: −500 m to +5,000 m (−1,640.42 ft. to +16,404.20 ft.) Storage altitude: −500 m to +5,000 m (−1,640.42 ft. to +16,404.20 ft.) |
| Corrosion class | No |
| ESD protection | Contact discharge: 6 kV Air discharge: 8 kV |
| Surge protection | Service port: ±6 kV for common mode Power connector: ±6 kV for both common mode and differential mode |
Certification and Regulatory Compliance
| EMC | EN 55032 EN 61000-3-2 EN 61000-3-3 EN 55035 EN 300 386 |
| Safety compliance | IEC 62368-1 |
| Certification | CE, FCC |
Software Specifications
Authentication
| RADIUS | Yes |
| 802.1X authentication | Yes |
| Port-based 802.1X authentication | Yes |
| MAC address-based 802.1X authentication | Yes |
| Guest VLAN | Yes |
Basic Configurations
| PoE watchdog | Yes |
| Online upgrade | Yes |
Ethernet Switching
| Maximum number of VLANs | 4094 |
| Maximum number of MAC address entries | 8000 |
| Interface flow control | Yes |
| MAC address-based VLAN | No |
| IP subnet – based VLAN assignment | No |
| IEEE 802.1Q VLAN | Yes |
| Basic QinQ | No |
| VLAN configuration supported on LAN ports | Yes |
| Voice VLAN | Yes |
| STP (IEEE 802.1d) | Yes |
| RSTP (IEEE 802.1w) | Yes |
| MSTP (IEEE 802.1s) | Yes |
| LLDP | Yes |
| LLDP-MED | Yes |
| Static MAC address | Yes |
| MAC address filtering | Yes |
| Static aggregation | Yes |
| LACP | Yes |
| Inbound or outbound rate limiting based on interface traffic | Yes |
Gateway Features
| 802.1p priority-based traffic classification | Yes |
| DSCP priority-based traffic classification | Yes |
| Egress queues based on 802.1p and DSCP priorities | Yes |
| SP | Yes |
| WRR | Yes |
| SP+WRR | Yes |
| Global QoS | Yes |
Interface
| Jumbo frame length (MTU) | 9216 bytes (global configuration mode) |
| EEE | Yes |
| Cable test | Yes |
IP Routing
| IPv4 static route | No |
| IPv6 static route | No |
| OSPFv2 | No |
| OSPFv3 | No |
IP Service
| Maximum number of ARP entries | 1000 |
| ARP | Yes |
| IPv4 ping | Yes |
| IPv4 traceroute | Yes |
| IPv6 | Yes |
| ICMPv6 | Yes |
| IPv6 ping | Yes |
| IPv6 traceroute | Yes |
| DNS client | Yes |
| DNSv6 client | Yes |
| DHCP relay | No |
| DHCP server | No |
| DHCP client | Yes |
Multicast
| IGMPv1 snooping | Yes |
| IGMPv2 snooping | Yes |
| Basic IGMPv3 snooping | Yes |
| Full IGMPv3 snooping | No |
| IGMP filtering | Yes |
| IGMPv1, v2, and v3 | No |
Network Management and Monitoring
| Port mirroring | Yes |
| Mirroring | Yes |
| HTTP login | Yes |
| HTTPS login | Yes |
| RLOG | Yes |
| SON | Yes |
| Syslog | Yes |
| Client auto-discovery | Yes |
| PoE service failure | Yes |
| PoE power overload | Yes |
| SSH | No |
| Camera detection | Yes |
| Loop alarm | Yes |
| MAC address entries | Yes |
| IP address pool conflicts | Yes |
| Full ARP table | No |
| eWeb management | Yes |
| Ruijie Cloud management | Yes |
| Ruijie Reyee App management | Yes |
| SNMPv1, v2c, and v3 | Yes |
Reliability
| System dual backup | No |
| Enabling dual backup for the partition Uboot (based on a single flash memory) | No |
| Load balancing | No |
| ERPS | Yes |
Security
| Maximum number of ACEs | Number of ACEs in the inbound direction of an interface: 1200 Number of ACEs in the outbound direction of an interface: 0 |
| Port isolation | Yes |
| Broadcast storm control | Yes |
| Multicast storm control | Yes |
| Unknown unicast storm control | Yes |
| DHCP snooping | Yes |
| Standard ACL | Yes |
| Extended MAC ACL | Yes |
| Extended IP ACL | Yes |
| IPv6 ACL | Yes |
| IP-MAC-port binding | Yes |
| ARP anti-spoofing | Yes |
| IP source guard | Yes |
| CPU Protection Policy | Yes |
System Performance Capacity
| Recommended camera limit | 200 W H265: 80 400 W H265: 40 |
Package Contents
Device
| Device | 1 |
Accessories
| Rubber pad | 4 |
| Power cord retention clip | 1 |
| Screw | 6 M3 x 6 mm cross recessed countersunk head screws |
| Grounding cable | 1 x 1 m (3.28 ft.) |
| Power cord | 1 x 1.5 m (4.92 ft.) |
| Rack-mount bracket | 2 |
Manual
| User Manual | 1 |
| Warranty Card | 1 |
