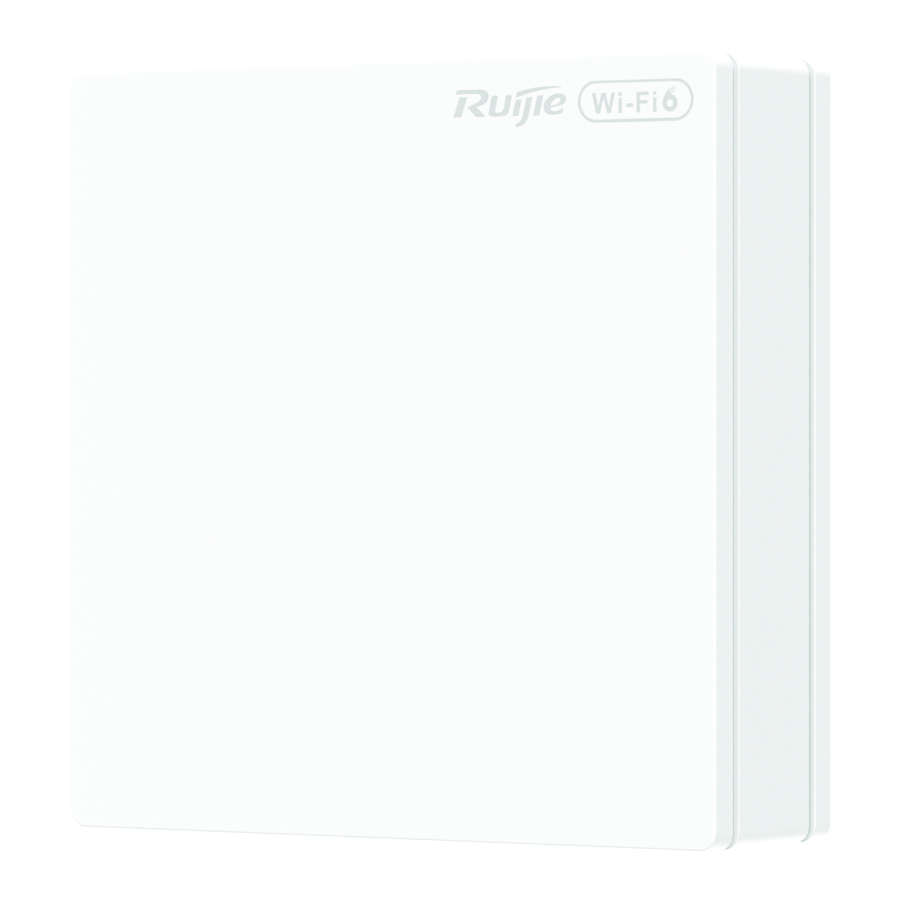

Front View

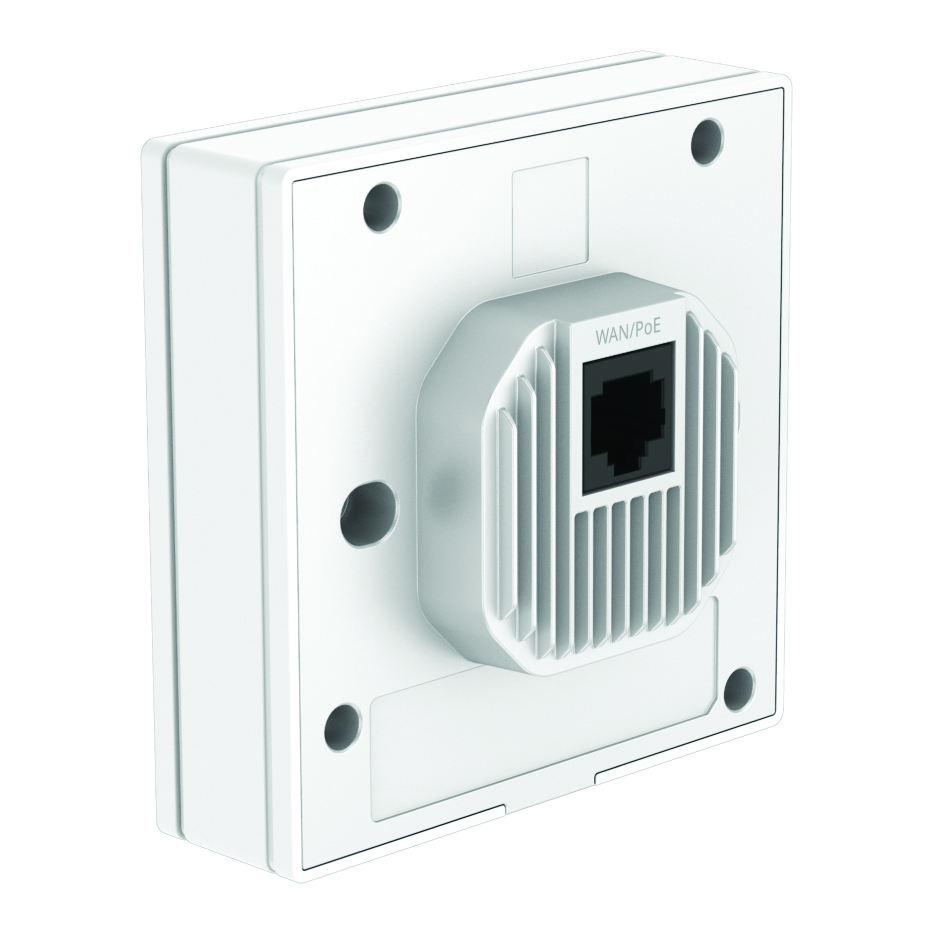

Rear View

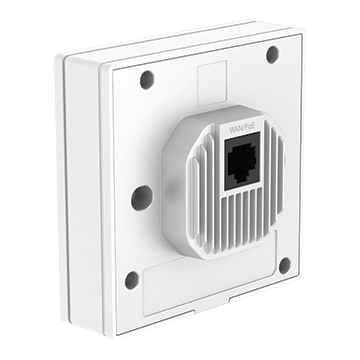

Wi-Fi 6 Access Point AX3000 802.11ax Dual Bands 2.976 Gbps, 1 x Gb uplink with 1 x Gb LAN, Wall Mount
RG-RAP62-WALL-L
Product Summary
The Ruijie Reyee RG-RAP62-WALL-L delivers fast, reliable Wi-Fi 6 connectivity for hotels, apartments, offices and education environments. It offers dual-band speeds up to 2.974 Gbps, two Gigabit Ethernet ports and PoE installation. OFDMA and MU-MIMO enhance multi-user performance, while seamless roaming and WPA3 provide reliable, secure connectivity. Its discreet wall-plate design and Ruijie Cloud management enable simple, streamlined deployment.
View More Networking and Data
5-Year Manufacturer’s Warranty
For full terms & conditions, please see – Ruijie Warranty T&Cs.
Features and Benefits
- Wi-Fi 6 dual-band performance delivers combined wireless speeds up to 2.974 Gbps for fast, reliable connectivity.
- OFDMA and MU-MIMO improve network efficiency, reduce congestion and support up to 110 recommended simultaneous users.
- Supports 802.11a/b/g/n/ac/ax standards, providing broad compatibility with older and newer wireless devices.
- Lifetime-free Ruijie Cloud management enables remote monitoring, optimisation and maintenance through the Ruijie Reyee App.
- Features two Gigabit Ethernet ports and PoE/PoE+ power, simplifying installation while providing reliable wired and wireless connectivity.
- Discreet wall-plate design fits standard 86mm and EU junction boxes, making it ideal for hotels, apartments, offices and education environments.
Specifications
Hardware Specifications
Wi-Fi Radio
| 6 GHz Wi-Fi | No |
| 5 GHz Wi-Fi | Wi-Fi 4 (IEEE 802.11a/n) Wi-Fi 5 (IEEE 802.11ac) Wi-Fi 6 (IEEE 802.11ax) |
| 2.4 GHz Wi-Fi | Wi-Fi 4 (IEEE 802.11b/g/n) Wi-Fi 6 (IEEE 802.11ax) |
| Operating band | IEEE 802.11b/g/n/ax, 2.400 GHz to 2.4835 GHz IEEE 802.11a/n/ac/ax, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz Note: Available bands vary with countries and regions. To use the preceding frequency bands, ensure that your country or region supports these frequency bands. |
| Radio design | Dual-radio 4 spatial streams • 2.4 GHz: 2 x 2, MU-MIMO • 5 GHz: 2 x 2, MU-MIMO |
| FEM | iFEM |
| 6 GHz channel width | No |
| 5 GHz channel width | Auto/20/40/80/160 MHz |
| 2.4 GHz channel width | Auto/20/40 MHz |
| Maximum wireless data rate | 2974 Mbps |
| 6 GHz wireless data rate | No |
| 5 GHz wireless data rate | 2401 Mbps |
| 2.4 GHz wireless data rate | 573 Mbps |
| Maximum transmit power | Frequency bands and maximum Effective Isotropic Radiated Power (EIRP): Note: Country specific restrictions apply. European Union & United Kingdom: 2400–2483.5 MHz, EIRP ≤ 20 dBm 5150–5350 MHz, EIRP ≤ 23 dBm 5470–5725 MHz, EIRP ≤ 30 dBm Myanmar: 2400–2483.5 MHz, EIRP ≤ 23 dBm 5725–5825 MHz, EIRP ≤ 30 dBm Thailand: 2400–2483.5 MHz, EIRP ≤ 20 dBm 5150–5350 MHz, EIRP ≤ 23 dBm 5470–5725 MHz, EIRP ≤ 30 dBm 5725–5825 MHz, EIRP ≤ 30 dBm Indonesia: 2400–2483.5 MHz, EIRP ≤ 27 dBm 5150–5350 MHz, EIRP ≤ 23 dBm 5725–5825 MHz, EIRP ≤ 23 dBm Egypt: 2400–2483.5 MHz, EIRP ≤ 20 dBm 5150–5350 MHz, EIRP ≤ 23 dBm Vietnam: 2400–2483.5 MHz, EIRP ≤ 23 dBm 5150–5350 MHz, EIRP ≤ 23 dBm 5470–5725 MHz, EIRP ≤ 30 dBm 5725–5850 MHz, EIRP ≤ 30 dBm |
| Maximum transmit power (6 GHz) | No |
| Maximum transmit power (5 GHz) | Combined power: 21 dBm (single-stream power: 18 dBm) Note: The transmit power varies according to regulations in different countries and regions. |
| Maximum transmit power (2.4 GHz) | Combined power: 21 dBm (single-stream power: 18 dBm) Note: The transmit power varies according to regulations in different countries and regions. |
| Coverage range | 45 m² (484.38 square ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference. |
| Modulation | OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, 64-QAM @ 48/54 Mbps DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM OFDMA |
| Receive sensitivity | 11b: −91 dBm (1 Mbps), −88 dBm (5.5 Mbps), −85 dBm (11 Mbps) 11a/g: −89 dBm (6 Mbps), −80 dBm (24 Mbps), −76 dBm (36 Mbps), −71 dBm (54 Mbps) 11n: −83 dBm (MCS0), −65 dBm (MCS7), −83 dBm (MCS8), −65 dBm (MCS15) 11ac: 20 MHz: −83 dBm (MCS0), −57 dBm (MCS9) 11ac: 40 MHz: −79 dBm (MCS0), −57 dBm (MCS9) 11ac: 80 MHz: −76 dBm (MCS0), −51 dBm (MCS9) 11ac: 160 MHz: −76 dBm (MCS0), −50 dBm (MCS9) 11ax: 20 MHz: −85 dBm (MCS0), −58 dBm (MCS11) 11ax: 40 MHz: −82 dBm (MCS0), −54 dBm (MCS11) 11ax: 80 MHz: −79 dBm (MCS0), −52 dBm (MCS11) 11ax: 160 MHz: −76 dBm (MCS0), −49 dBm (MCS11) |
Antenna
| Antenna | 5 GHz: 1 built-in omnidirectional antenna Integrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas |
| Antenna horizontal orientation | No |
| Antenna vertical orientation | No |
| Antenna gain (6 GHz) | No |
| Antenna gain (5 GHz) | 4.42 dBi |
| Antenna gain (2.4 GHz) | 3.07 dBi |
Dimensions and Weight
| Product dimensions (W x D x H) | 86mm x 38mm x 86mm (3.39 in. x 1.50 in. x 3.39 in.) |
| Color | White |
| Weight | ≤ 0.25 kg (0.55 lbs.) (without packaging materials) |
| Shipping weight | ≤ 0.35 kg (0.77 lbs.) |
Port Specifications
| Number of 10/100/1000BASE-T ports | 2 |
| Reset button | 1 |
| LEDs | 1 x system status LED |
Power Supply and Consumption
| Power supply | PoE/PoE+ |
| Local power supply | No |
| Dimensions of the DC connector | No |
| PoE In standard | • IEEE 802.3af (PoE) • IEEE 802.3at (PoE+) |
| PoE budget | No |
| Maximum power consumption | 11.2 W |
Environment and Reliability
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Storage temperature | −40°C to +70°C (−40°F to +158°F) |
| Operating humidity | 5% RH to 95% RH (non-condensing) |
| Storage humidity | 5% RH to 95% RH (non-condensing) |
| Mounting options | Junction box |
| IP rating | No |
| Surge protection | Ethernet port: ±2 kV for common mode |
| MTBF | 400,000 hours |
Certification and Regulatory Compliance
| RoHS | Yes |
| Safety compliance | EN 62368-1 IEC 62368-1 |
| EMC | EN 55032 EN 55035 EN 61000-3-3 EN 61000-3-2 EN 301489-1 EN 301489-3 EN 301489-17 |
| RF | EN 300 328 EN 301 893 EN 300 440 |
| Certification | CE, CB |
System Specifications
| Flash memory | 128 MB |
| RAM | 512 MB DDR3 |
Software Specifications
Basic Configurations
| AP mode | Yes |
| Routing mode | Yes |
| Internet access mode | Static IP address Static IPv6 address Dynamic IP address Dynamic IPv6 address PPPoE |
Interface
| IPTV transparent transmission | Yes |
Ethernet Interface
| PPPoE clients | Yes |
Ethernet Switching
| IEEE 802.1Q VLAN | Yes |
WLAN
| Maximum number of associated wireless clients | 64 (2.4 GHz) 256 (5 GHz) 256 (2.4 GHz and 5 GHz enabled) |
| Recommended number of associated wireless clients | • Support for IEEE 802.11ax and 160 MHz: 16 (2.4 GHz) 94 (5 GHz) 110 (2.4 GHz and 5 GHz enabled) • Support for IEEE 802.11ax and 80 MHz: 16 (2.4 GHz) 64 (5 GHz) 80 (2.4 GHz and 5 GHz enabled) • Support for IEEE 802.11ac: 8 (2.4 GHz) 32 (5 GHz) 40 (2.4 GHz and 5 GHz enabled) |
| Maximum number of SSIDs | 8 |
| Radio-based client limiting | Yes |
| Layer 2 isolation | Yes |
| OFDMA | Yes |
| WMM | Yes |
| DFS | Yes |
| MLO | No |
| 4K-QAM | No |
| Different SSIDs for the same VLAN | Yes |
| Enabling/Disabling MLO | No |
| AP load balancing | Yes |
| Beamforming | Yes |
| 802.11k/v roaming | Yes |
| Fast transition (802.11r) | Yes |
| Layer 2 roaming | Yes |
| Layer 3 roaming | Yes |
| AI roaming | Yes |
| PSK authentication | Yes |
| Static allowlist | Yes |
| Adjusting the transmit power for beacon and probe frames | Yes |
| Encryption mode (WPA-PSK, WPA2-PSK, WPA/WPA2-PSK) | Yes |
| OWE (Enhanced Open) WPA3-SAE WPA2-PSK/WPA3-SAE | Yes |
| Number of blocklists and allowlists based on MAC addresses (single SSID) | 256 |
| Number of global blocklists/allowlists | 256 |
| Mesh management | Yes |
| AP Mesh | Yes |
| AP portal authentication | Yes |
| Maximum number of devices that can be managed | 300 |
| One-Click Network Optimization | Yes |
| Static blocklist | Yes |
IP Service
| ARP binding | Yes |
| IPv4 ping | Yes |
| IPv6 ping | Yes |
| Traceroute | Yes |
| Static/Dynamic NAT | Yes |
| DHCP server | Yes |
| IPv6 | Yes |
Authentication
| 802.1X authentication | Yes |
Network Management and Monitoring
| Wireless repeater mode | Yes |
| Web login information | Single-device login address: 10.44.77.254 Network-wide login address: 10.44.77.253 Default password: admin |
| Network-wide configuration and management | Yes |
| Ruijie Reyee App management | Yes |
| eWeb management | Yes |
| Ruijie Cloud management | Yes |
| SNMP | Yes |
| Configuration synchronization among the app, eWeb, and Ruijie Cloud | Yes |
| Displaying device information on Ruijie Cloud | Yes |
Package Contents
Package Contents
| Package Contents | 1 x AP 2 x Machine screws (M4 x 40 mm) 2 x Machine screws (M3.5 x 30 mm) 2 x Tapping screws (ST3 x 30 mm) 1 x User Manual 1 x Warranty Card |
Accessories
| Power adapter | No |
