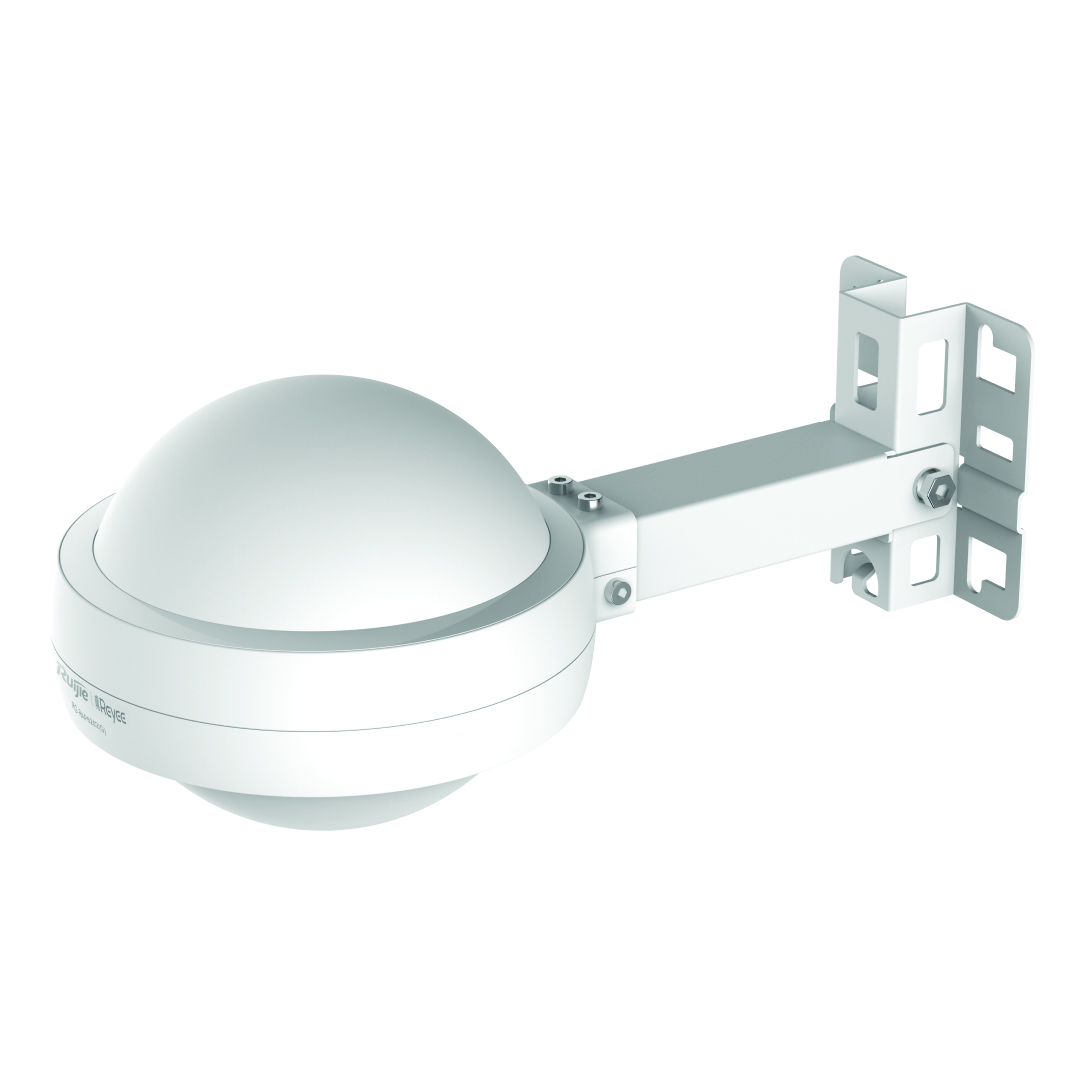

Front View

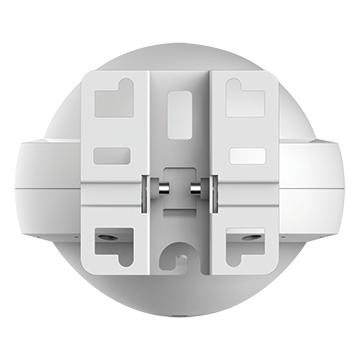

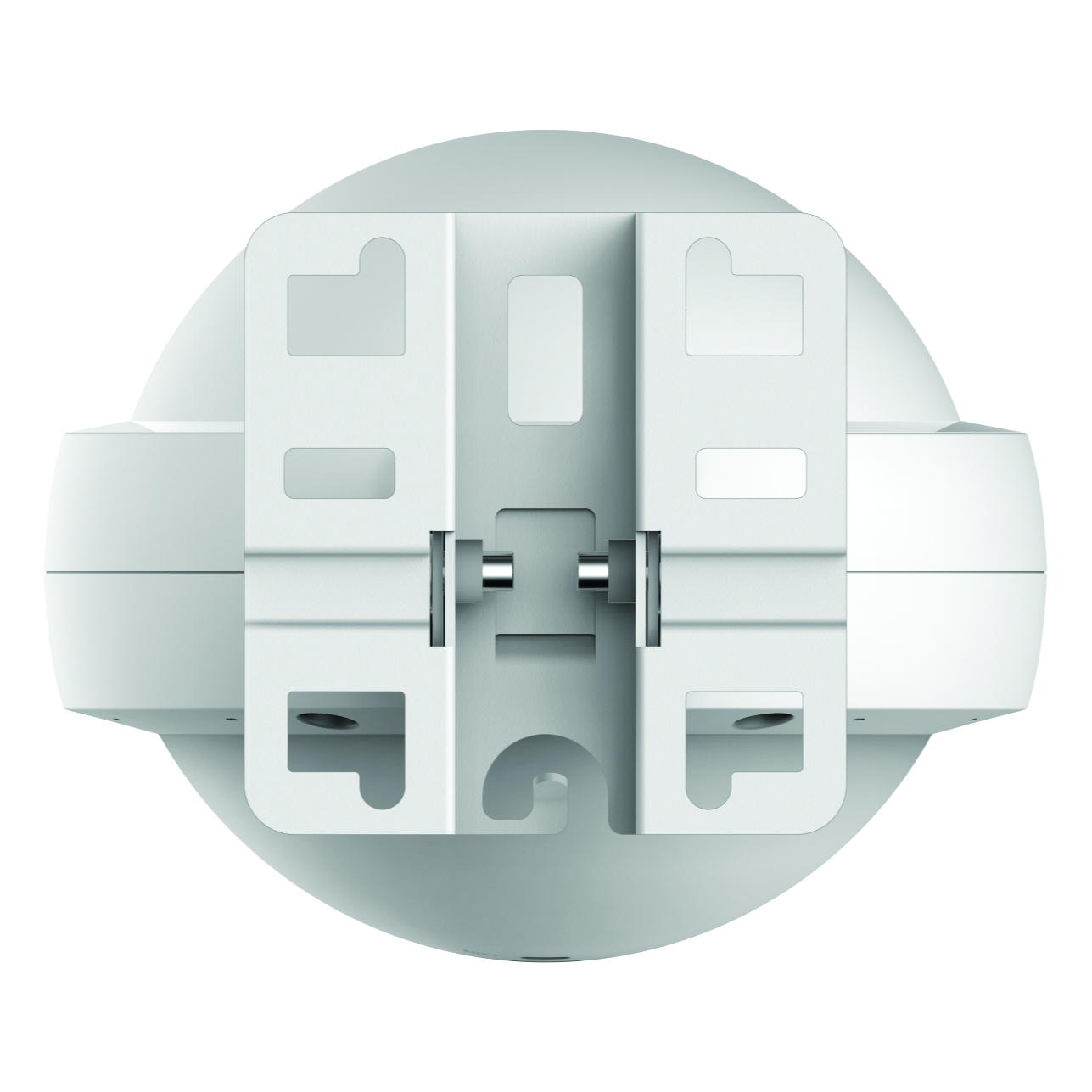

Rear View
Wi-Fi 5 Outdoor Omnidirectional Access Point AC1300 802.11ac Dual-bands 1.3 Gbps
RG-RAP6202(G)
Product Summary
The RG-RAP6202(G) Wi-Fi 5 outdoor omnidirectional access point is a high-power, dual-band solution designed for caravan parks, town centres, villas, parks, scenic areas and other outdoor applications. It delivers combined wireless speeds up to 1.266 Gbps across the 2.4 GHz and 5 GHz bands, with dual-stream MIMO for reliable multi-user connectivity. IP68 protection, long-range coverage and Reyee Mesh ensure dependable performance in harsh outdoor environments.
View More Networking and Data
3-Year Manufacturer’s Warranty
For full terms & conditions, please see – Ruijie Warranty T&Cs.
Features and Benefits
- Wi-Fi 5 dual-band performance delivers combined wireless speeds up to 1.266 Gbps for fast, reliable outdoor connectivity.
- Dual-band, dual-stream MIMO improves network efficiency and supports up to 80 recommended simultaneous users.
- Supports 802.11a/b/g/n/ac standards, providing broad compatibility with older and newer wireless devices.
- Lifetime-free Ruijie Cloud management enables remote monitoring, optimisation and maintenance through the Ruijie Reyee App.
- Features two Gigabit Ethernet ports with PoE/PoE+ or 12V DC power options, providing flexible installation and reliable connectivity.
- IP68 weather protection, long-range omnidirectional coverage and wall or pole mounting make it ideal for caravan parks, town centres, parks and other outdoor areas.
Specifications
Hardware Specifications
Wi-Fi Radio
| 6 GHz Wi-Fi | No |
| 5 GHz Wi-Fi | Wi-Fi 4 (IEEE 802.11a/n) Wi-Fi 5 (IEEE 802.11ac) |
| 2.4 GHz Wi-Fi | Wi-Fi 4 (IEEE 802.11b/g/n) |
| Operating band | IEEE 802.11b/g/n, 2.400 GHz to 2.4835 GHz IEEE 802.11a/n/ac, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz Note: Available bands vary with countries and regions. To use the preceding frequency bands, ensure that your country or region supports these frequency bands. |
| Radio design | Dual-radio 4 spatial streams • 2.4 GHz: 2 x 2, MIMO • 5 GHz: 2 x 2, MIMO |
| FEM | 2.4 GHz: 2 x eFEM 5 GHz: 2 x eFEM |
| 6 GHz channel width | No |
| 5 GHz channel width | Auto/20/40/80 MHz |
| 2.4 GHz channel width | Auto/20/40 MHz |
| Maximum wireless data rate | 1266 Mbps |
| 6 GHz wireless data rate | No |
| 5 GHz wireless data rate | 866 Mbps |
| 2.4 GHz wireless data rate | 400 Mbps |
| Maximum transmit power | Frequency bands and maximum Effective Isotropic Radiated Power (EIRP): Note: Country specific restrictions apply. European Union & United Kingdom: 2400–2483.5 MHz, EIRP ≤ 20 dBm 5470–5725 MHz, EIRP ≤ 30 dBm United States: 2400–2483.5 MHz, max output power ≤ 30 dBm & EIRP ≤ 36 dBm 5150–5250 MHz, max output power ≤ 30 dBm & EIRP ≤ 36 dBm 5250–5350 MHz, max output power < 24 dBm & EIRP ≤ 30 dBm 5470–5725 MHz, max output power < 24 dBm & EIRP ≤ 30 dBm 5725–5850 MHz, max output power ≤ 30 dBm & EIRP ≤ 36 dBm Myanmar: 2400–2483.5 MHz, EIRP ≤ 23 dBm 5725–5825 MHz, EIRP ≤ 30 dBm Thailand: 2400–2483.5 MHz, EIRP ≤ 20 dBm 5470–5725 MHz, EIRP ≤ 30 dBm 5725–5825 MHz, EIRP ≤ 30 dBm Indonesia: 2400–2483.5 MHz, EIRP ≤ 36 dBm 5725–5825 MHz, EIRP ≤ 36 dBm Egypt: 2400–2483.5 MHz, EIRP ≤ 20 dBm 5150–5350 MHz, EIRP ≤ 23 dBm Vietnam: 2400–2483.5 MHz, EIRP ≤ 23 dBm 5150–5350 MHz, EIRP ≤ 23 dBm 5470–5725 MHz, EIRP ≤ 30 dBm 5725–5850 MHz, EIRP ≤ 30 dBm |
| Maximum transmit power (6 GHz) | No |
| Maximum transmit power (5 GHz) | Combined power: 30 dBm (single-stream power: 27 dBm) Note: The transmit power varies according to regulations in different countries and regions. |
| Maximum transmit power (2.4 GHz) | Combined power: 29 dBm (single-stream power: 26 dBm) Note: The transmit power varies according to regulations in different countries and regions. |
| Coverage range | 5 GHz max: 400 m (1312.34 ft.) 2.4 GHz max: 150 m (492.13 ft.) 5 GHz recommended: 200 m (656.17 ft.) 2.4 GHz recommended: 50 m (164.04 ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference. |
| Modulation | OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, 64-QAM @ 48/54 Mbps DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| Receive sensitivity | 11b: −91 dBm (1 Mbps), −88 dBm (5.5 Mbps), −85 dBm (11 Mbps) 11a/g: −89 dBm (6 Mbps), −80 dBm (24 Mbps), −76 dBm (36 Mbps), −71 dBm (54 Mbps) 11n: −83 dBm (MCS0), −65 dBm (MCS7), −83 dBm (MCS8), −65 dBm (MCS15) 11ac: 20 MHz: −83 dBm (MCS0), −57 dBm (MCS9) 11ac: 40 MHz: −79 dBm (MCS0), −57 dBm (MCS9) 11ac: 80 MHz: −76 dBm (MCS0), −51 dBm (MCS9) |
Antenna
| Antenna | 2.4 GHz: 2 built-in omnidirectional antennas 5 GHz: 2 built-in omnidirectional antennas |
| Antenna horizontal orientation | No |
| Antenna vertical orientation | No |
| Antenna gain (6 GHz) | No |
| Antenna gain (5 GHz) | 4.00 dBi |
| Antenna gain (2.4 GHz) | 3.00 dBi |
Dimensions and Weight
| Product dimensions (diameter x height) | Ø200 mm x 166 mm (Ø7.87 in. x 6.54 in.) (spherical device, excluding the mounting bracket) |
| Color | White |
| Weight | ≤ 1 kg (2.20 lbs.) (without packaging materials) |
| Shipping weight | ≤ 2.73 kg (6.02 lbs.) |
Port Specifications
| Number of 10/100/1000BASE-T ports | 2 |
| Reset button | 1 |
| LEDs | 1 x system status LED 1 x Wi-Fi LED 2 x Ethernet port LEDs |
Power Supply and Consumption
| Power supply | • DC power adapter • PoE/PoE+ Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred. |
| Local power supply | Yes, one DC power connector (12 V, 1.5 A) |
| Dimensions of the DC connector | Outer diameter: 5.5 mm (0.22 in.) Inner diameter: 2.1 mm (0.08 in.) Depth: 10 mm (0.39 in.) |
| PoE In standard | • IEEE 802.3af (PoE) • IEEE 802.3at (PoE+) |
| PoE budget | No |
| Maximum power consumption | 12.95 W |
Environment and Reliability
| Operating temperature | −30°C to +65°C (−22°F to +149°F) |
| Storage temperature | −40°C to +85°C (−40°F to +185°F) |
| Operating humidity | 0% RH to 100% RH (non-condensing) |
| Storage humidity | 0% RH to 100% RH (non-condensing) |
| Mounting options | Wall/Pole |
| IP rating | IP68 |
| Surge protection | Ethernet port: ±4 kV for common mode |
| MTBF | 250,000 hours |
Certification and Regulatory Compliance
| RoHS | Yes |
| Safety compliance | EN 62368-1 |
| EMC | EN 55032 EN 55035 EN 61000-3-3 EN 61000-3-2 EN 301489-1 EN 301489-3 EN 301489-17 |
| RF | EN 300328 EN 301893 EN 300440 |
| Certification | CE, FCC, CB, ISED, cTUVus |
System Specifications
| Flash memory | 16 MB |
| RAM | 128 MB DDR3 |
Software Specifications
Basic Configurations
| AP mode | Yes |
| Routing mode | Yes |
| Internet access mode | Static IP address Static IPv6 address Dynamic IP address Dynamic IPv6 address PPPoE |
Interface
| IPTV transparent transmission | No |
Ethernet Interface
| PPPoE clients | Yes |
Ethernet Switching
| IEEE 802.1Q VLAN | Yes |
WLAN
| Maximum number of associated wireless clients | 64 (2.4 GHz) 110 (5 GHz) 110 (2.4 GHz and 5 GHz enabled) |
| Recommended number of associated wireless clients | 16 (2.4 GHz) 64 (5 GHz) 80 (2.4 GHz and 5 GHz enabled) |
| Maximum number of SSIDs | 8 |
| Radio-based client limiting | Yes |
| Layer 2 isolation | Yes |
| OFDMA | No |
| WMM | Yes |
| DFS | Yes |
| MLO | No |
| 4K-QAM | No |
| Different SSIDs for the same VLAN | Yes |
| Enabling/Disabling MLO | No |
| AP load balancing | No |
| Beamforming | Yes |
| 802.11k/v roaming | Yes |
| Fast transition (802.11r) | Yes |
| Layer 2 roaming | Yes |
| Layer 3 roaming | Yes |
| AI roaming | Yes |
| PSK authentication | Yes |
| Static allowlist | Yes |
| Adjusting the transmit power for beacon and probe frames | Yes |
| Encryption mode (WPA-PSK, WPA2-PSK, WPA/WPA2-PSK) | Yes |
| OWE (Enhanced Open) WPA3-SAE WPA2-PSK/WPA3-SAE | No |
| Number of blocklists and allowlists based on MAC addresses (single SSID) | 256 |
| Number of global blocklists/allowlists | 256 |
| Mesh management | Yes |
| AP Mesh | Yes |
| AP portal authentication | No |
| Maximum number of devices that can be managed | 300 |
| One-Click Network Optimization | Yes |
| Static blocklist | Yes |
IP Service
| ARP binding | Yes |
| IPv4 ping | Yes |
| IPv6 ping | No |
| Traceroute | Yes |
| Static/Dynamic NAT | Yes |
| DHCP server | Yes |
| IPv6 | No |
Authentication
| 802.1X authentication | Yes |
Network Management and Monitoring
| Wireless repeater mode | Yes |
| Web login information | Single-device login address: 10.44.77.254 Network-wide login address: 10.44.77.253 Default password: admin |
| Network-wide configuration and management | Yes |
| Ruijie Reyee App management | Yes |
| eWeb management | Yes |
| Ruijie Cloud management | Yes |
| SNMP | No |
| Configuration synchronization among the app, eWeb, and Ruijie Cloud | Yes |
| Displaying device information on Ruijie Cloud | Yes |
Package Contents
Package Contents
| Package Contents | 1 x AP 2 x Pole clamps 1 x Mounting bracket 4 x Expansion anchors (M8 x 60 mm) 2 x Internal/External hex machine screws (M8 x 20 mm) 2 x Cable glands (pre-installed) 1 x Connecting rod (pre-installed) 1 x User Manual 1 x Warranty Card |
Accessories
| Power adapter | No |
