Front View

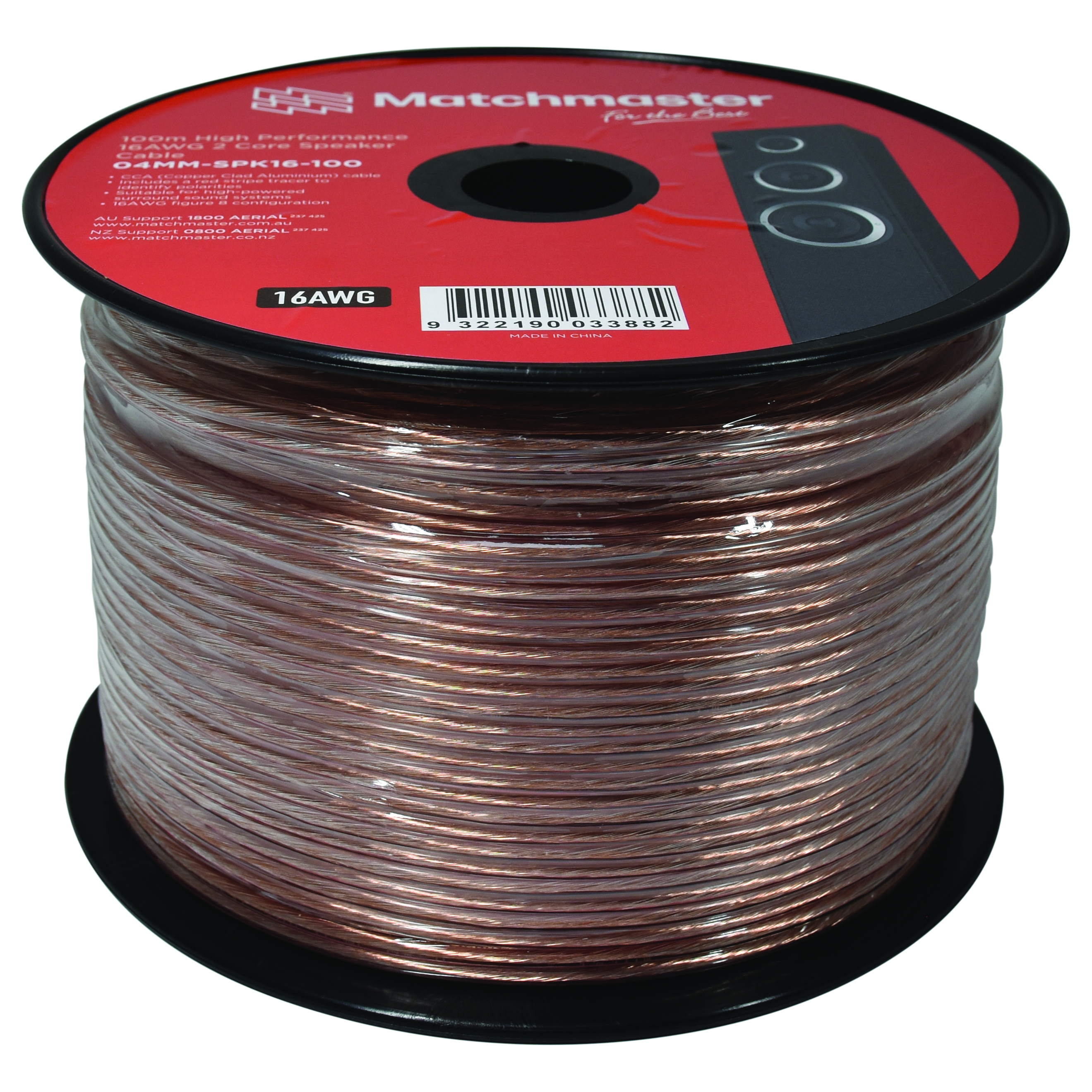

100m High Performance 16AWG 2 Core Speaker Cable
04MM-SPK16-100
Product Summary
The 04MM-SPK16-100 is a high-quality 16AWG figure-8 speaker cable constructed from durable CCA (Copper Clad Aluminium), delivering a lightweight, flexible, and cost-effective solution for audio installations. A red stripe tracer runs along one side of the cable, ensuring quick identification and preventing accidental cross-polarity during connection. Designed for versatility, the SPK16 is ideal for wiring surround sound systems, including floor, wall, and ceiling speakers. Supplied on a 100m reel, it is perfectly suited for whole-home or building pre-wiring, making it a reliable choice for multi-room audio and entertainment systems.
View More Speaker Cable
Features and Benefits
- High-Performance Design – 16AWG figure-8 speaker cable made from CCA (Copper Clad Aluminium) for reliable signal transfer and flexibility.
- Easy Polarity Identification – Clear PVC insulation with a red stripe tracer for quick and accurate connections.
- Optimised for Audio Systems – Suitable for high-powered surround sound, wall, ceiling, and multi-room speaker installations.
- Convenient Supply Format – Supplied on a 100m plastic reel with printed meter markings for easy measuring and installation.
- Precise Cable Dimensions – 7.2mm x 3.6mm (2 x 42 x 0.20mm ± 0.005mm), including insulation, ensuring consistent performance and durability.
Specifications
| Construction | ||
|---|---|---|
| Conductor | Cores | 2C |
| Material | CCA (Copper Clad Aluminium) | |
| OD | 16AWG (42/0.20mm + 0.005mm) | |
| Sheath | Material | PVC (ROHS) |
| Colour | Transparent (one core with red strip) | |
| OD | 7.2mm * 3.6mm | |
| Thickness | 1.1mm ± 0.05mm | |
| Basic Characteristics | ||
| Impedance | 22.0Ω/KM | |
| Voltage | 80V | |
