30MM-DS08 - 8 Way Active Splitter with Aux Input

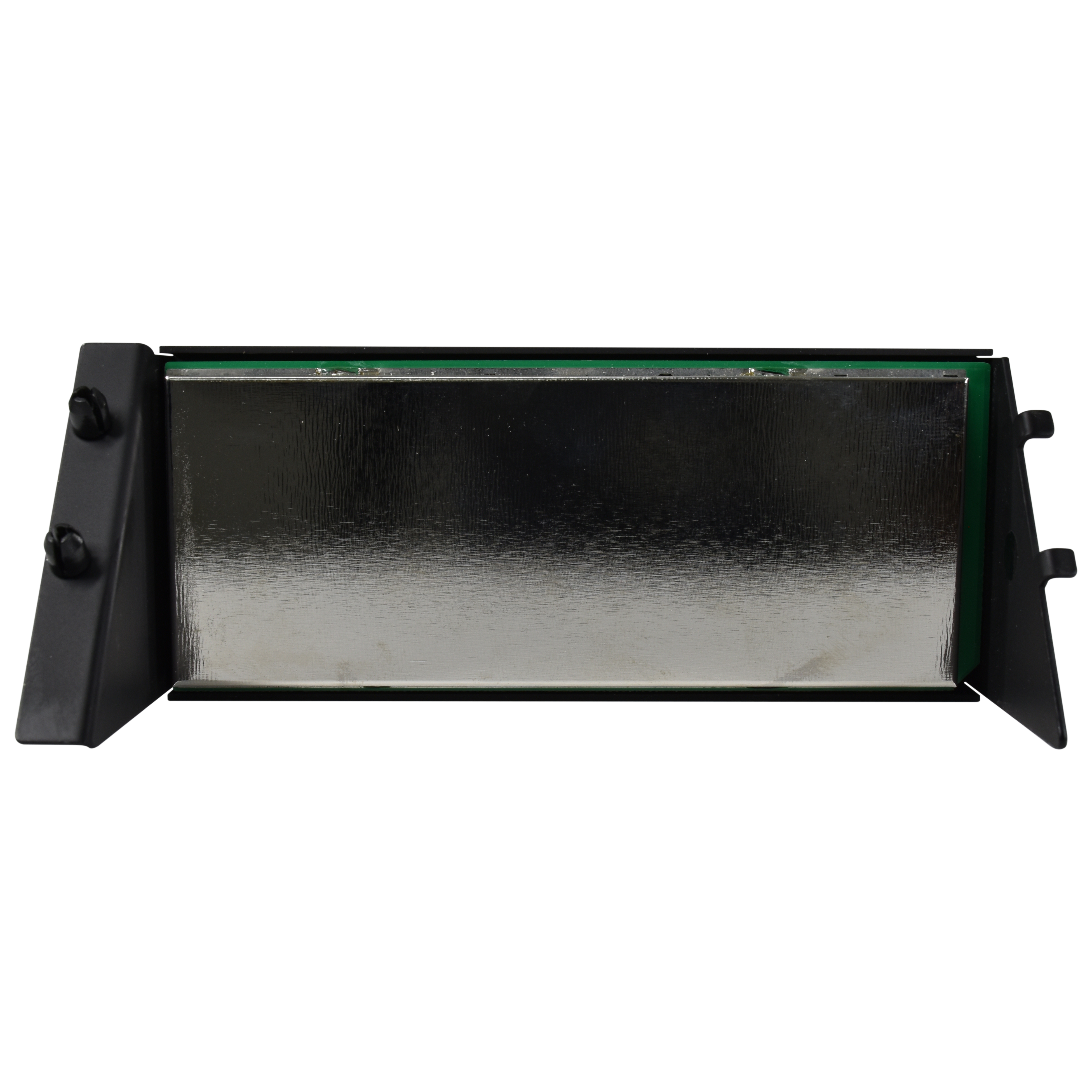

Front View
30MM-DS08 - 8 Way Active Splitter with Aux Input Back of Product Image
Rear View
30MM-DS08 - 8 Way Active Splitter with Aux Input Packaging Image
Packaging

8 Way Active Splitter with Aux Input

30MM-DS08

Product Summary

The DS08 is an active 8-way splitter used in DigiHUB enclosures to distribute FTA and in-house channels. Featuring two inputs, one for the FTA antenna and one for local services. The local services can be from modulators (14MM-DTM2 modulator sold separately), allowing the sharing of a source or multiple sources to all connected TVs.
View More DigiHUB

Features and Benefits

  • 2 in 8 out DigiHUB splitter amplifier for distribution of TV signal. Product dimensions 156x60x57mm (WxHxD)
  • Built in amplifier with gain control
  • 4G filter built in to prevent interference
  • Can be remote powered from output 4 or locally powered by DC jack
  • Pass power to a masthead amplifier via the input port (switch activated)
  • Max 85dBuV output per port with power supply (14VDC 300mA) included

Where to Buy


Pack Quantity

Inner: 1 box of 1 piece
Outer: 1 carton of 10 boxes (10 pieces)
Bulk: 1 carton of 6 cartons (60 pieces)
