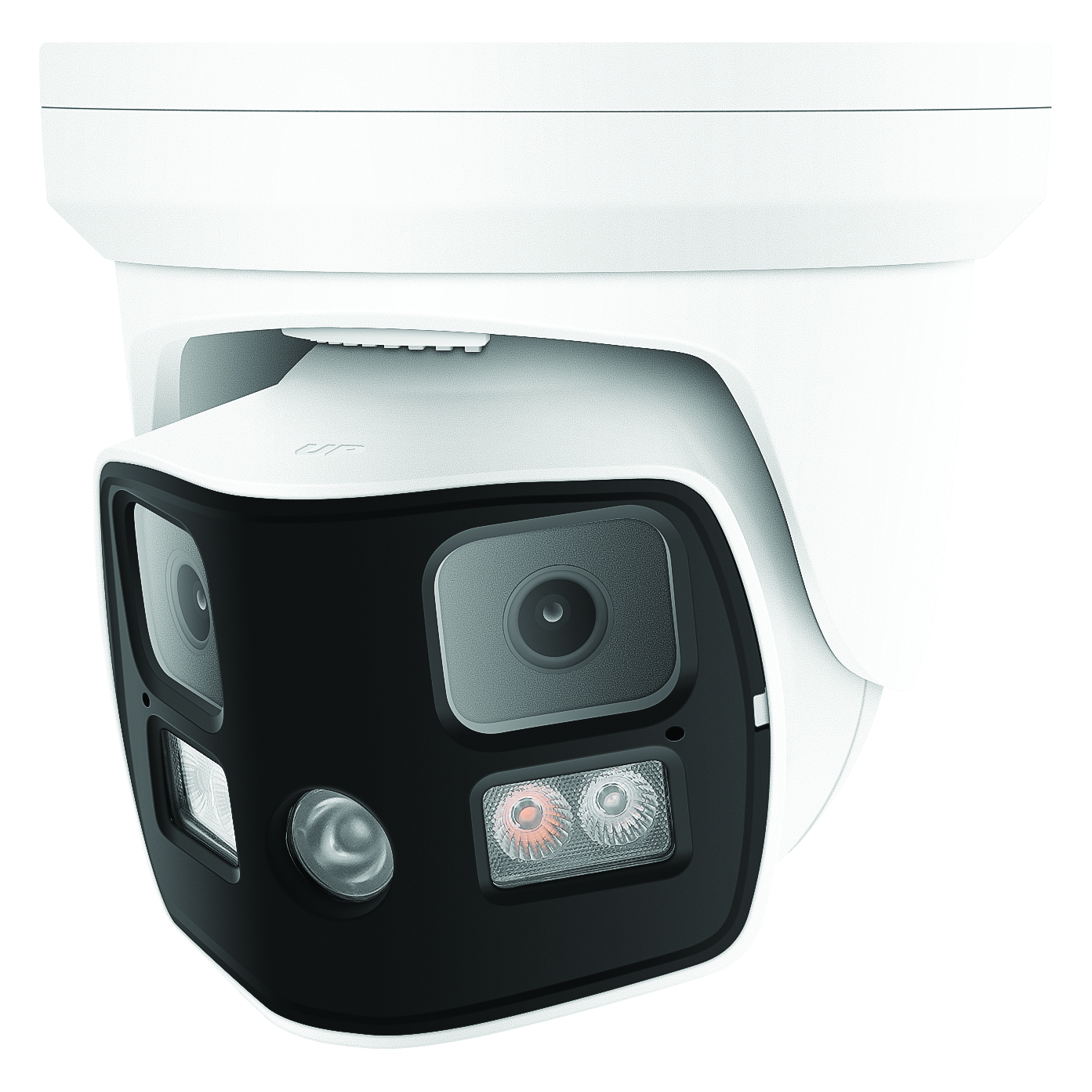

Front View

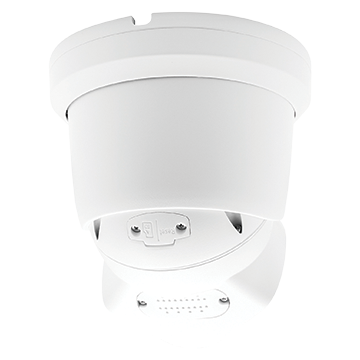

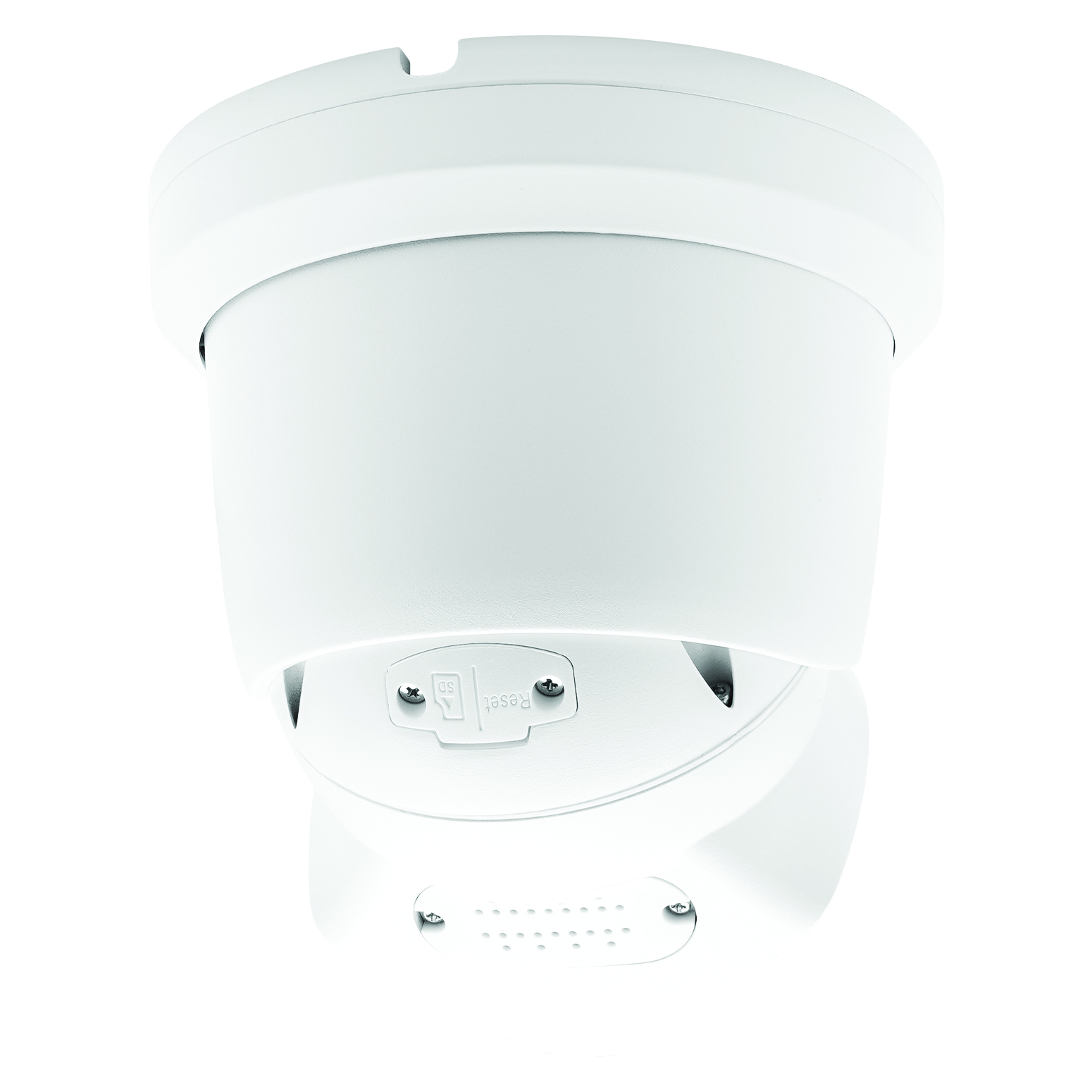

Rear View
8MP 180° AI Turret IP PoE Camera IP67 Dual 2.8mm Lens with Dual-Light and Two-Way Audio
50MM-CD006
Product Summary
The CD006 is an 8MP AI PoE Turret Camera with a dual-lens design, delivering crystal-clear 4K ultra-wide 180° coverage. Featuring smart AI detection for faces, humans, and vehicles, as well as line crossing and perimeter protection, it ensures accurate alerts with fewer false alarms. With 25–30m IR and warm light night vision, it captures vivid full-colour images around the clock. Built-in two-way audio, audio alarm, and warm lights help deter intruders. Its IP67 weatherproof housing, PoE connectivity, and ONVIF compatibility make it an ideal solution for reliable home or business security.
View More Security
Features and Benefits
- Ultra-Wide 180° 8MP Coverage, dual-lens design delivers 4K clarity across a full 180° field of view, reducing blind spots and maximising surveillance coverage.
- Advanced AI detection supports face, human, and vehicle recognition, along with line crossing and perimeter alerts, ensuring accurate detection with fewer false alarms.
- Day and night colour imaging, 25–30m IR and warm light LEDs provide sharp detail and full-colour images, even in complete darkness.
- Built-in deterrence, equipped with two-way audio, flashing lights, and audio alarms, allowing you to actively warn off intruders in real time.
- Rugged outdoor performance, IP67 weatherproof and lightning-protected housing, ensures reliability in harsh conditions for round-the-clock security.
- Supports PoE power supply and MicroSD edge storage up to 256GB, simplifies installation and ensures local recording even if the network goes down
Specifications
| Camera | |
|---|---|
| Image Sensor | 1/2.7" GC6603 CMOS*2 |
| Soc Chip | Sigmastar SSC359G |
| Effective Pixels | 4096(H)×1944 (V) |
| Exposure Shutter | AUTO/Manual: 1/10s ~ 1/8000s, Max Shutter speed adjustable |
| Day/Night | Auto/Active/passive/schedule/Day/Night, switch threshold, sensitivity, anti-flicker(Auto/50Hz/60Hz) |
| Image Adjust | Brightness, Saturation, Sharpness, Contrast, Denoise (0-100%) adjustable |
| White Balance | AWB/MWB |
| WDR | Yes |
| Light Mode | Smart(dual-light) / IR / White light, adjustable |
| Light Control | Auto/Manual, Brightness level (0-100%) adjustable |
| DNR | 2D/3D DNR |
| Encode | |
| Video Standard | H.264/H.265/MJPEG |
| Video Resolution | Main Stream: 20fps@8MP(4096x1944)(default)/1920x1080P Sub Stream: 20fps@1024x480(default)/768x360 (*Note:MJPEG max 1080P) |
| Video Bitrates | Main stream: 64kbps-12Mbps Sub stream: 64kbps-2Mbps VBR/CBR , quality(1-9), GOP(1-128) |
| Image Snapshot | Main stream(HD)/Sub Stream(SD) snapshot |
| Image Rotation | No |
| Border Crop | No |
| Image Mirror | horizon / vertical / horizon&vertical adjustable |
| OSD Overlay | Font size(1~4), position, Time, Title, AM/PM, Color, User OSD, Alarm OSD |
| Privacy Mask | 4 areas |
| Region of Interest | ROI: Each stream support 8 areas |
| Audio Standard | G.711-u/G.711-a/AAC/PCM, AEC |
| Built-in Mic | Yes |
| Built-in Speaker | Yes |
| Stitch Distance adjust | 1 - 50000mm adjustable |
| Led | |
| IR Led | 3 pcs IR array LEDs |
| White Light | 2 pcs warm-light LEDs |
| Distance | 25-30M |
| Lens | |
| Focal length | F1.6 2.8mm fixed |
| FOV | H:180° |
| Language | English, Japanese, Korean, German, Polish, Italian, Turkish, Ukraine, Russian, etc. |
| Smart Detection | |
| Motion Detection | Yes |
| Digital IO Alarm | 1 pair Alarm-in/Alarm-out, normally open/normally close (optional) |
| Human Vehicle Detection | Yes, (2-20 meters) |
| Cross Line Detection | Yes, 4 lines |
| Perimeter protection | Yes, 4 areas |
| Face Detection | Yes, (1-5 meters) |
| Target Detection Type | Human Shape, vehicle, non-motor vehicle, Pet, Face(12px~1000px) |
| Trigger Action Linkage | Snapshot, Record, White LED Flash, Voice siren, Micro-SD, Email, FTP, NAS storage (NFS) |
| Simultaneous Detection | Maximum 16 targets simultaneous detection |
| Storage Type | Schedule/Trigger: Micro-SD(512G), Email, FTP, NAS (NFS) |
| Reset Button | Yes |
| Network Services | |
| Protocol | HTTP(s)/RTSP/FTP/SMTP/DHCP/NTP/DST/RTP/RTMP/P2P/Hik/IPV4/IPV6/NFS/DDNS |
| IP Address Filtering | Yes (Allow list, Deny list) |
| P2P Mobile APP | Android, iOS |
| Web Access | IE, Firefox, Chrome, Edge, Safari, etc. (Windows/Linux/Mac/Chromebook/Tablet/Mobile phone) |
| PC Tool | Windows, Mac |
| ONVIF | 23.12 compatible (profile S G T M) |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE(IEEE802.3af) |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 10 W |
| Operating Temp. | -20℃~(+60)℃, 10%-90%RH |
