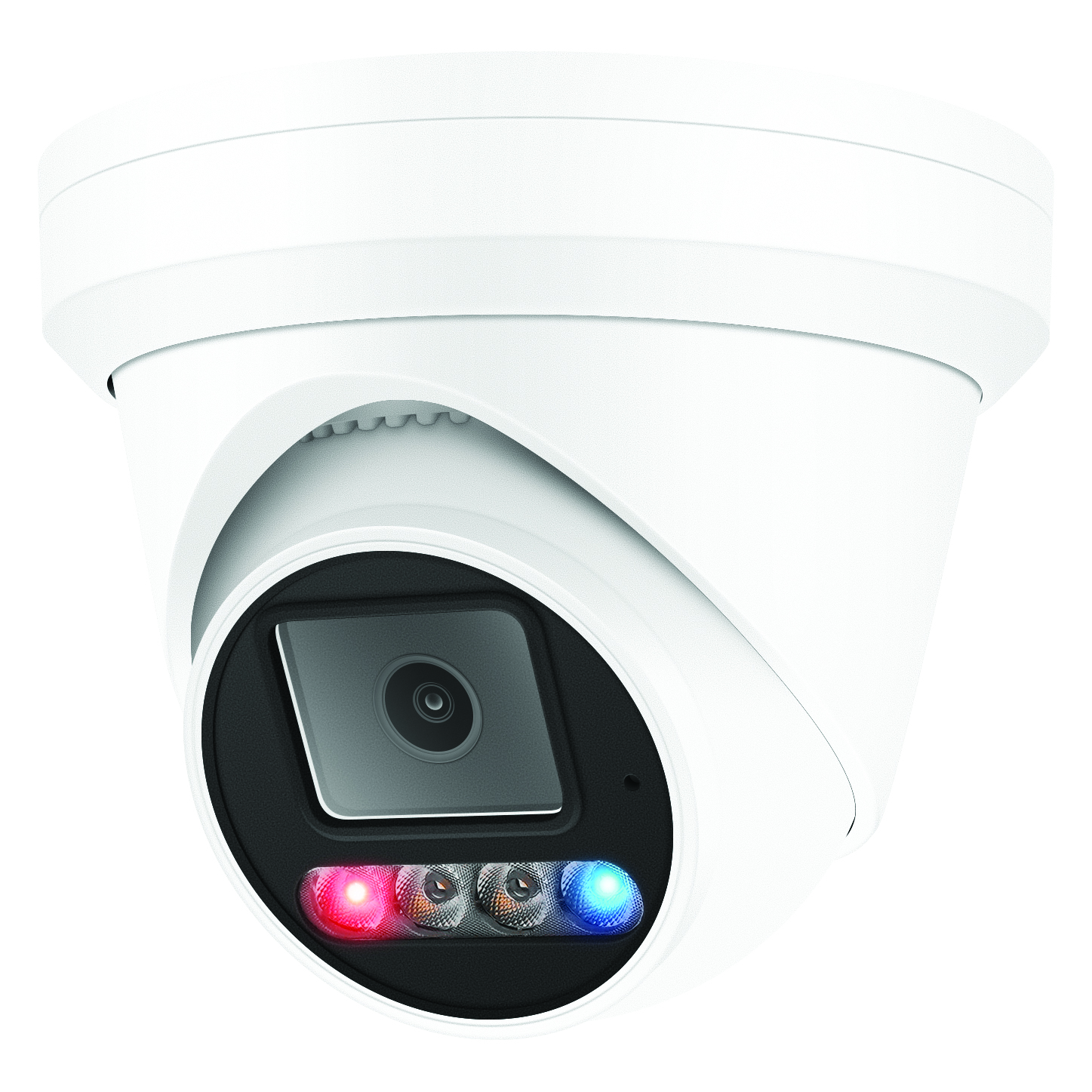

Front View

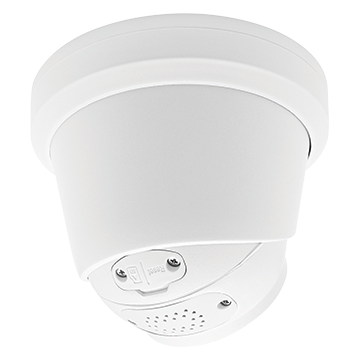

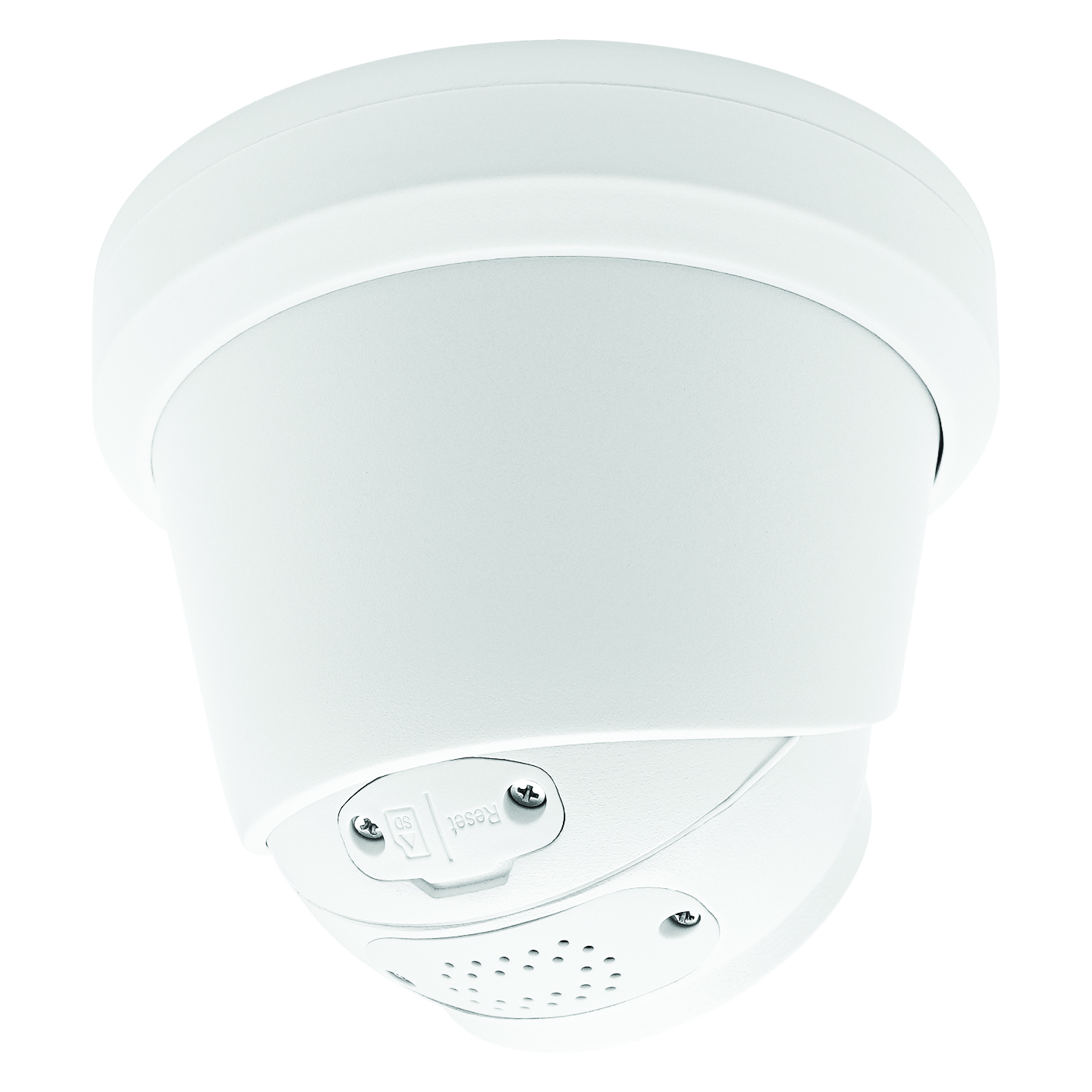

Rear View
8MP AI Turret IP PoE Camera IP67 2.8mm Lens with Dual-Light + Red and Blue Deterrent Lights with Two-Way Audio
50MM-CD010
Product Summary
The CD010 is an advanced 8MP AI PoE Turret Camera delivering crystal-clear 4K surveillance for homes and businesses. Equipped with Sony CMOS imaging, it features smart AI detection for faces, humans, and vehicles, as well as perimeter protection and line crossing alerts. With 20–30m IR and warm light night vision, red/blue flashing lights, and two-way audio, it actively deters intruders. Its IP67 weatherproof housing, ONVIF compatibility, and easy remote access make it a reliable, professional-grade security solution.
View More Security
Compatible Products
Only compatible with 50MM-KB003, 50MM-KD003, 50MM-KDB01, 50MM-NVR08-4K, 50MM-NVR16 and 50MM-NVR32.
Features and Benefits
- 24/7 colour and night vision from dual IR and warm light LEDs, providing 20–30m coverage and capturing detail-rich images day or night in full colour.
- Built-in microphone, 2-way audio, and red and blue flashlights enhance situational awareness with sound detection, live communication, and triggered alerts.
- Supports face detection, human and vehicle detection, line crossing, area entry/leaving detection and area intrusion detection
- 1/2.8" CMOS sensor with 8MP resolution at 20fps delivers sharp, detailed video for precise monitoring and evidence capture.
- Rugged and weatherproof design with IP67 rated waterproof and dustproof housing, ensuring reliable operation in harsh outdoor environments.
- Supports PoE power supply and MicroSD edge storage up to 256GB, simplifies installation and ensures local recording even if the network goes down
Specifications
| Camera | |
|---|---|
| Image Sensor | 1/2.8" 8MP Sony IMX415 CMOS |
| Soc Chip | Sigmastar SSC378DE |
| Effective Pixels | 3840(H)×2160 (V) |
| Exposure Shutter | AUTO/Manual: 1/10s ~ 1/8000s, Max Shutter speed adjustable |
| Day/Night | Auto/Active/passive/schedule/Day/Night, switch threshold, sensitivity |
| Image Adjust | Brightness, Saturation, Sharpness, Contrast, Denoise (0-100%) adjustable |
| White Balance | AWB/MWB |
| WDR | Yes |
| Light Mode | Smart(dual-light) / Infrared / White light, adjustable |
| Light Control | Auto/Manual, Brightness level (0-100%) adjustable |
| DNR | 2D/3D DNR |
| Encode | |
| Video Standard | H.264/H.265/MJPEG |
| Video Resolution | Main Stream: 20fps@8MP(3840x2160)(default),30fps@6MP(3072x2048)/5MP(2592x1944)/4MP(2560
x1440)/3MP(2304x1296)/1080P/720P Sub Stream: 10fps@720P,30fps@D1(704x576)(default)/(720x480)/VGA(640x480)/QVGA(640x360) |
| Video Bitrates | Main stream: 64kbps-8Mbps Sub stream: 64kbps-2048kbps VBR/CBR , quality(1-9), GOP(1-128) |
| Image Rotation | 0 / 90 / 180 / 270 degree adjustable |
| Border Crop | X crop, Y crop |
| Image Mirror | horizon / vertical / horizon&vertical adjustable |
| OSD Overlay | Font size(1~4), position, Time, Title, AM/PM, Color, User OSD, Alarm OSD |
| Privacy Mask | 4 areas |
| Region of Interest | ROI: Each stream support 8 areas |
| Audio Standard | G.711-u/G.711-a/AAC/PCM, AEC |
| Built-in Mic | Yes |
| Built-in Speaker | Yes |
| Led | |
| Light | 2PCS red and blue flashlight alarm Light(1 red &1 blue)+2PCS IR & Warm Light LEDs |
| Light Distance | 20-30M |
| Lens | |
| Focal length | F1.6 2.8mm fixed |
| Language | English, Japanese, Korean, German, Polish, Italian, Turkish, Ukraine, Russian, etc. |
| Smart Detection | |
| Motion Detection | Yes |
| Digital IO Alarm | 1 pair Alarm-in/Alarm-out, normally open/normally close |
| Human Vehicle Detection | Support |
| Cross Line Detection | Support |
| Perimeter protection | Support |
| Face Detection | Support |
| Target Detection Type | Human Shape, vehicle, non-motor vehicle, Pet, Face(32px~800px) |
| Trigger Action Linkage | Snapshot, Record, Relay(Red-blue Led flash), White LED Flash, Voice siren Micro-SD, Email, FTP, NAS storage (optional) |
| Simultaneous Detection | Maximum 16 targets simultaneous detection |
| Storage Type | Schedule/Trigger: Micro-SD(512G), Email, FTP, NAS (NFS) |
| Reset Button | Yes |
| Network Services | |
| Protocol | HTTP(s)/RTSP/FTP/SMTP/DHCP/NTP/DST/RTP/RTMP/P2P/Hik/IPV4/IPV6/NFS/DDNS |
| P2P Mobile APP | Android, iOS |
| Web Access | IE, Firefox, Chrome, Edge, Safari, etc. (Windows/Linux/Mac/Chromebook/Tablet/Mobile phone) |
| PC Tool | Windows, Mac |
| ONVIF | 23.12 compatible (profile S G T M) |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE optional |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 8 W |
| Operating Temp. | -20℃~(+60)℃, 10%-90%RH |
