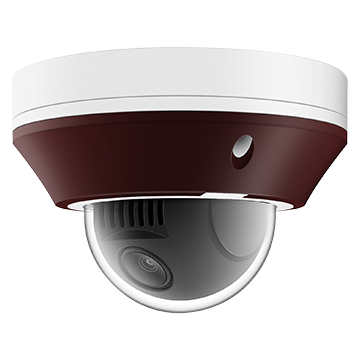

Front View

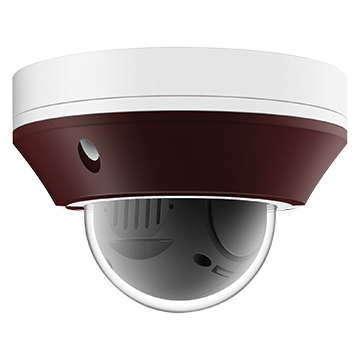

Rear View

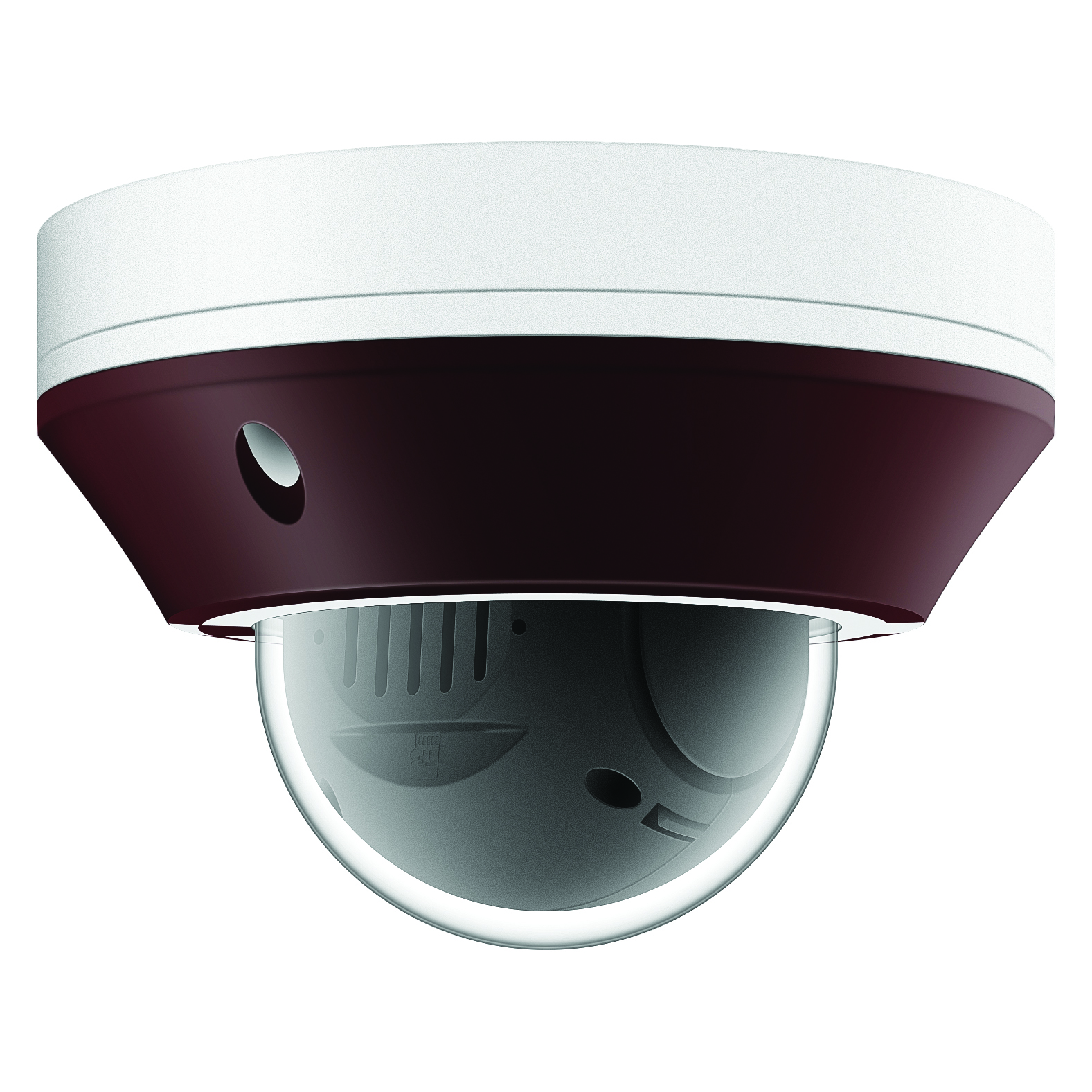

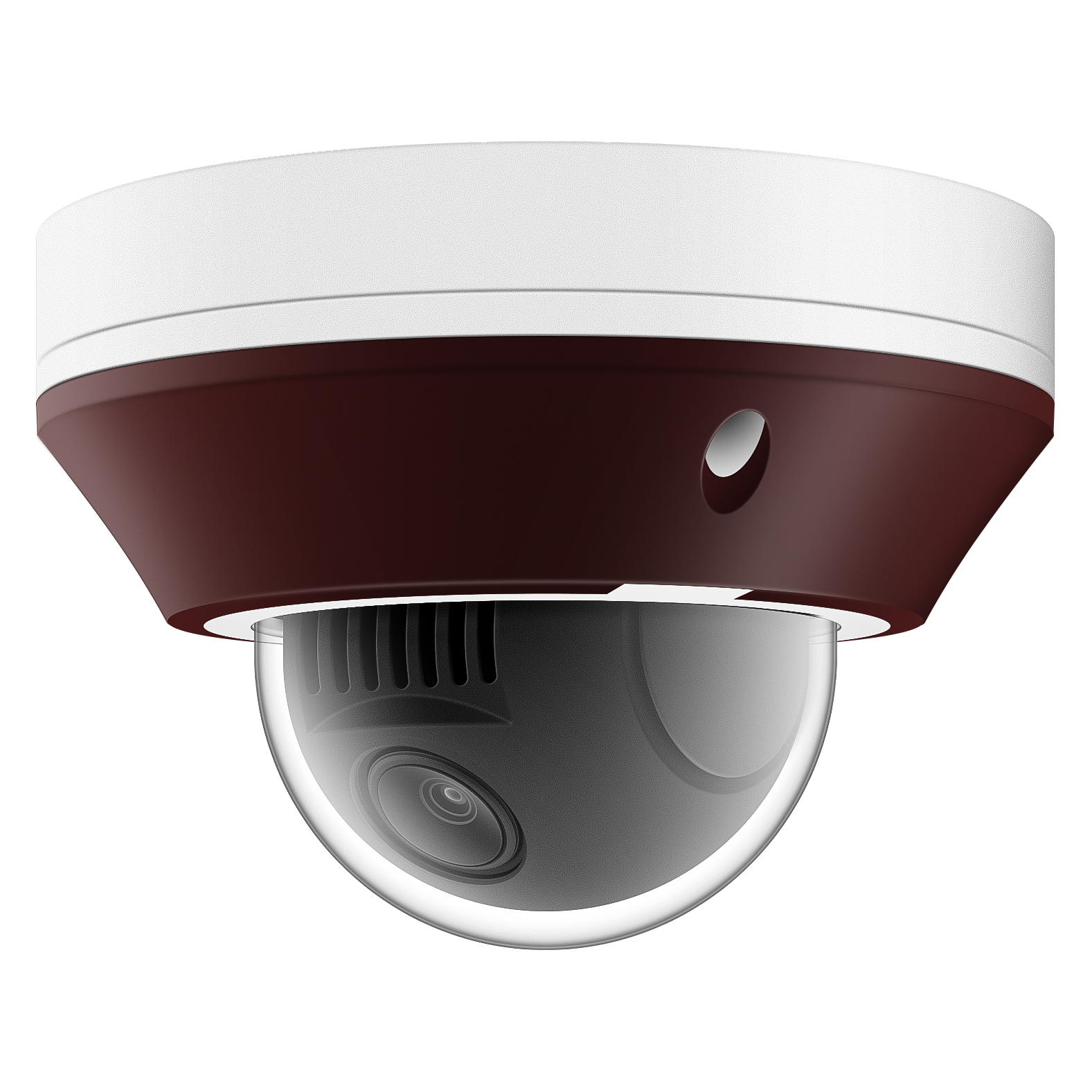

6MP Mini Dome PTZ IP PoE Camera IP66 2.8-8mm Lens with 3 x Optical Zoom
50MM-CD011
Product Summary
The CD011 is a 6MP HD Mini Dome PTZ camera, suitable for both indoor and outdoor use. PTZ cameras are the ultimate surveillance tool for monitoring your property, featuring smart detection capabilities for human bodies, vehicles, and motion, as well as privacy masking and various lens and image-based controls. The CD011 is IP66 waterproof and dust-rated, featuring an IR range of up to 20-25m for nighttime capturing. Featuring a 2.8-8mm variable lens with up to 3x optical zoom and intelligent detection modes, the CD011 is ideal for both home and business security.
View More Security
Compatible Products
Only compatible with 50MM-KB003, 50MM-KD003, 50MM-KDB01, 50MM-NVR08, 50MM-NVR08-4K, 50MM-NVR16 and 50MM-NVR32.
Features and Benefits
- Featuring a 2.8-8mm lens with an impressive 0° ~ 350° angle of horizontal view plus 5° ~ 90° vertical range
- 1/2.8" CMOS sensor with 5MP resolution at 25fps delivers sharp, detailed video for precise monitoring and evidence capture.
- Compact design for discrete installations, 106.5mm width x 74.1mm height
- Vandal-resistant and IP66 weatherproof housing built to withstand tampering and harsh outdoor conditions for long-term reliability.
- Built-in microphone enhances situational awareness with sound detection
- Supports PoE and local 12V DC powering options
Specifications
| Camera | |
|---|---|
| Image Sensor | 1/2.8" Sony IMX335 CMOS |
| Effective Pixels | 6MP @3072 (H)×2048 (V) |
| Electronic Shutter | AUTO, 1/25s ~ 1/100000s |
| Day/Night | Auto/Color/(B/W)/Timing |
| Min. Illumination | [email protected](AGC ON), 0Lux IR on |
| White Balance | Auto |
| WDR | Digital WDR |
| Other | Human body and Vehicle detection,AGC,2/3 DNR,Motion Detection, Privacy Mask, Mirror, Flip， | Encode |
| Embedded Solution | Sigmstar 30KQ |
| Video Standard | H.265/H.264 |
| Video Resolution | Main Stream: 20fps
@6MP(3072*2048);25fps@5MP(2592x1944),25fps@4MP/3MP,30fps@1080
P/720P Sub stream: D1/VGA(640x480)/360P/QVGA@20fps |
| Video Bitrates | 512Kbps - 6Mbps, VBR/CBR |
| IR Led | |
| IR Led | 3pcs SMD Array IR Leds |
| IR Distance | 20-25M |
| Lens | |
| Focal length | 2.8-8 mm AF Motorized lens |
| Zoom | 3x optical zoom |
| PTZ | |
| Pan/Tilt Range | Pan: 0° ~ 350°; Tilt: 5° ~ 90° |
| Manual Control Speed | 15°/Sec |
| Functions | |
| POE, Audio, Reset button etc. | |
| Network Services | |
| Protocol | RTSP/FTP/DHCP/DDNS/NTP/SMTP/NFS |
| P2P | Yes |
| Web Access | IE , firefox 32bit ESR, Chrome ,edge .etc |
| Media | CMS, Android, IOS |
| ONVIF | 17.06 compatible |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE optional |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 5 W |
| Operating Temp. | -30℃~(+60)℃, 10%-90%RH |
