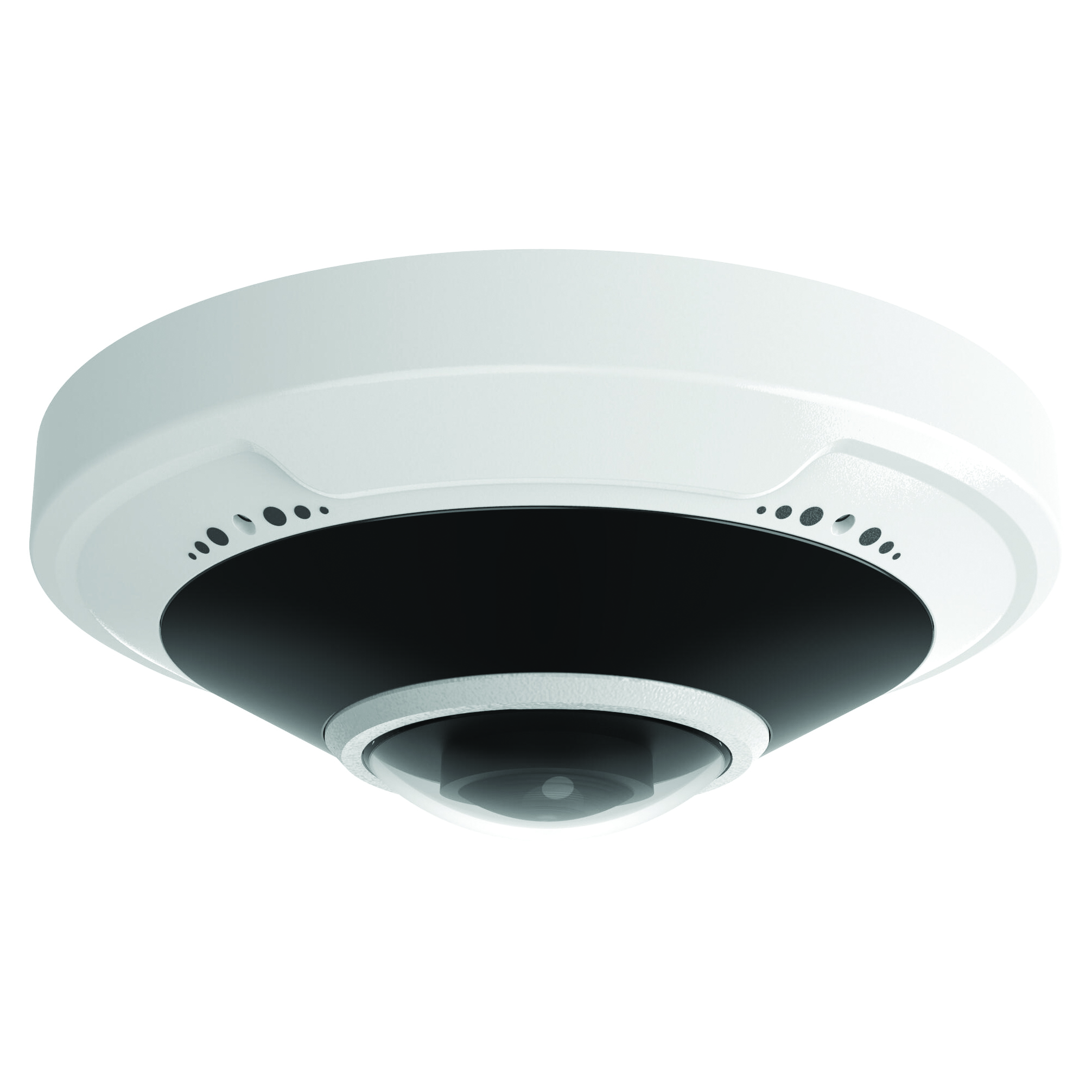

Front View
5MP AI Fisheye IP PoE Camera IP66 1.4mm Lens 360° - IK10 Vandal Resistant with Two-Way Audio
50MM-CD012
Product Summary
The CD012 fisheye camera delivers crystal-clear 5MP resolution with a 360° fisheye view, making it ideal for wide-area monitoring. Featuring true 120dB WDR, smart IR up to 10m, and built-in dual microphones, it ensures sharp video and audio in any condition. With PoE support, IK10 vandal resistance, IP66 weather protection, and edge storage of up to 256GB, this dome camera is built to withstand tough conditions for reliable, all-round surveillance.
View More Security
Features and Benefits
- Featuring a 1.4mm lens with a full 360° angle of view, covers an entire room or wide area with a single camera, reducing blind spots and installation costs
- 1/2.8" CMOS sensor with 5MP resolution at 30fps delivers sharp, detailed video for precise monitoring and evidence capture.
- True 120dB WDR, smart IR up to 10m, and 0 Lux with IR provides clear visibility in both bright, backlit, and dark environments.
- IK10 vandal resistance and IP66 weatherproof housing built to withstand tampering and harsh outdoor conditions for long-term reliability.
- Dual built-in microphones, 2-way audio, and 1-in/1-out alarm I/O enhance situational awareness with sound detection, live communication, and triggered alerts.
- Supports PoE power supply and MicroSD edge storage up to 256GB, simplifies installation and ensures local recording even if the network goes down
Note: Full image control and display including image splitting is only available in latest "Q" series hardware NVRs. Other model NVRs will only display full 360° image.
Specifications
| Camera | |||||
|---|---|---|---|---|---|
| Image sensor | 1/2.8", progressive scan, 5.0 megapixel, CMOS | ||||
| Lens | [email protected] | ||||
| DORI Distance | Lens | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 1.4mm | 31.5 | 12.6 | 6.3 | 3.2 | |
| Angle of View | 360° | ||||
| Shutter | Auto/Manual, shutter time: 1~1/100000 s | ||||
| Minimum Illumination | Colour: 0.01 Lux (F2.0, AGC ON) 0 Lux with IR |
||||
| Day/Night | IR-cut filter for day & night function | ||||
| S/N | >55dB | ||||
| IR Range | UP to 10m (33ft) | ||||
| wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Defog | Digital Defog | ||||
| WDR | 120dB | ||||
| Video | |||||
| Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
| Frame Rate |
Main Stream: 5MP (2592*1944): Max.30fps; Sub Stream: 1080P (1920*1080): Max.30fps; 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| OSD | Up to 8 OSDs | ||||
| ROI | Up to 8 areas | ||||
| Privacy Mask | Up to 4 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Flip Vertical/ Flip Horizontal/180° | ||||
| Dewarping | N/A | ||||
| HLC | N/A | ||||
| BLC | Support | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Two-way audio | Supported | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8 KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256GB | ||||
| Network Storage | ANR, NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Client | EZStation EZView EZLive |
||||
| Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ |
||||
| Live View Display | |||||
| Mount Type | Support table, wall, and ceiling | ||||
| Decoding Mode | Support software decoding | ||||
| Display Mode |
11 display modes in total Software decoding: Ceiling mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ Wall mount: fisheye view, Panoramic, Panoramic+3PTZ, Panoramic+4PTZ, Panoramic+8PTZ Table mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ |
||||
| Interface | |||||
| Audio I/O |
Input: impedance 35 kΩ; amplitude 2 V [p-p] Output: impedance 600 Ω; amplitude 2 V [p-p] |
||||
| Alarm I/O | 1/1 | ||||
| Built-in Mic | Supported 2 | ||||
| Network | 1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet | ||||
| Certifications | |||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
||||
| General | |||||
| Power | DC12V±25%, PoE (IEEE 802.3af) | ||||
| Power Consumption | Max. 8.5W | ||||
| Dimensions (Φ x H) | Φ125 × 44 mm (Φ4.9" × 1.7") | ||||
| Net Weight | 0.36kg (0.79lb) | ||||
| Material | Metal + Plastic | ||||
| Working Environment | -30℃ ~ 60℃ (-22℉ ~ 140℉), Humidity: ≤95% RH (non-condensing) | ||||
| Storage Environment | -30℃ ~ 60℃ (-22℉ ~ 140℉), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 4KV | ||||
| Ingress Protection | IP66 | ||||
| Vandal Resistant | IK10 | ||||
| Reset Button | Supported | ||||
