50MM-NVR08-W - 8 Channel Wi-Fi CCTV NVR

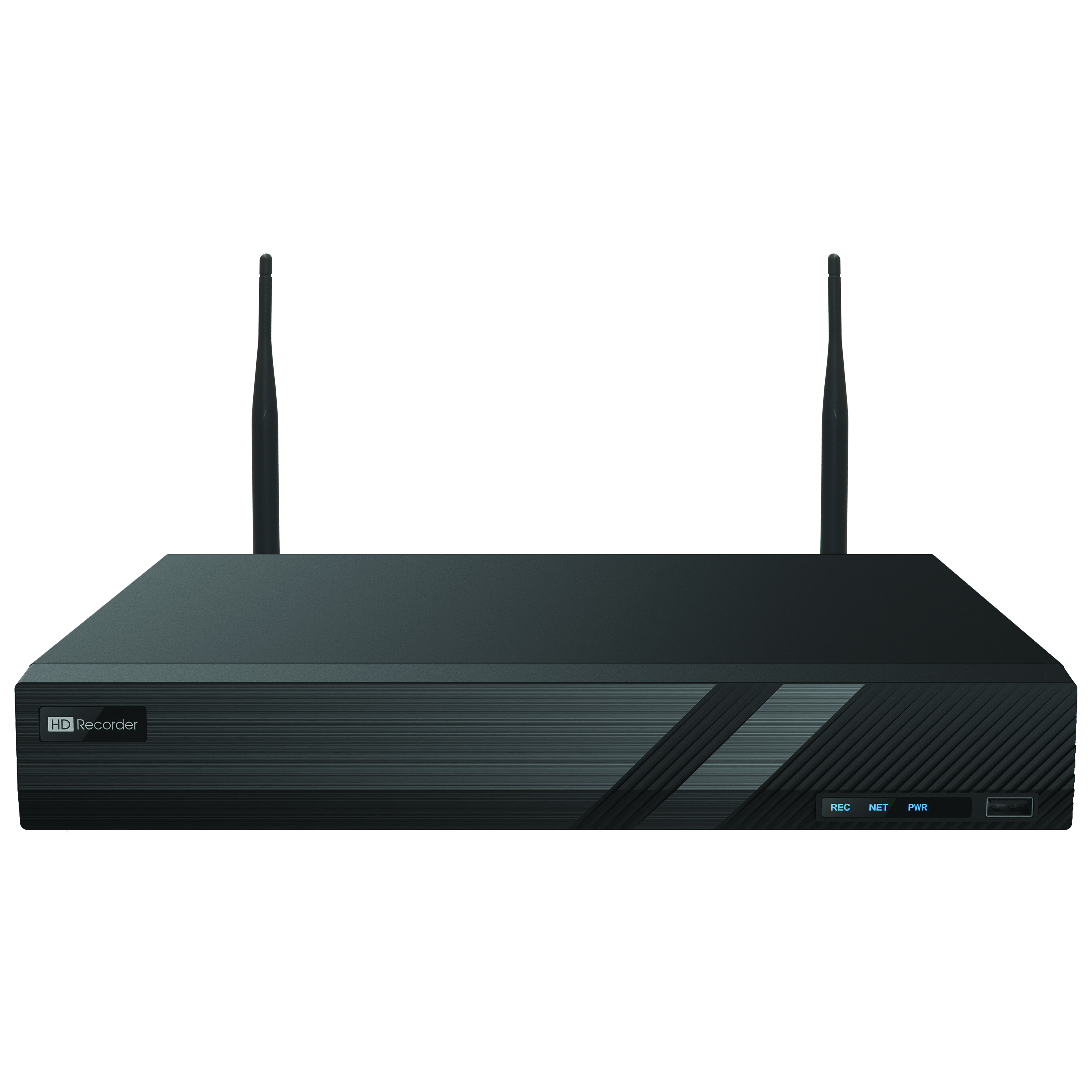

Front View

8 Channel Wi-Fi CCTV NVR

50MM-NVR08-W

Product Summary

The 50MM-NVR08-W is an 8-channel EseeCloud Wi-Fi network video recorder. The NVR supports up to 5MP cameras as well as an 8-channel simultaneous display. The NVR supports H.265+, H.265 and H.264 compression formats, offering various recording capabilities and features. It features a single HDD SATA bay that supports up to 8TB. (HDDs sold separately).
View More Security


Compatible Products

Only compatible with 50MM-CB002, 50MM-CB004 and 50MM-CD002.

Features and Benefits

  • 8 Channel Wi-Fi NVR supporting up to 5MP cameras and H.265+/H.265/H.264 compression technology
  • Designed for use with 50MM-CD002, CB002 and CB004 Matchmaster Wi-Fi cameras
  • Camera range can be extended by using in-between cameras as signal repeaters (bridging) or by use of a wireless repeater* (sold separately)
  • Convenient for sites where cabling is difficult or not possible
  • Remote control via EseeCloud APP, Web Client or CMS: preview, playback, backup, PTZ and configuration
  • Replacement NVR for any EseeCloud networks from KD002 or KB002 kits plus backwards compatible with earlier WN8CH2TB4x kits

    * Bridging cameras can provide a higher stability connection to an extended camera by relaying through another camera between itself and the NVR. Bridging is not a guaranteed solution and is not always a reliable method of range extension.

    Note: This CCTV Wi-Fi product uses a private and secure 2.4 GHz Wi-Fi network between the NVR and cameras. The performance of Wi-Fi CCTV cameras depends on your network and environment. Physical obstructions such as walls, floors, ceilings, metal structures, glass, and concrete can weaken or block the signal. Affected Wi-Fi links may cause dropouts or lower-quality, fragmented video. For best results, keep cameras close to your NVR, if possible, and always test a camera at its intended installation location before permanently fixing it.

Where to Buy

Specifications

Operating System Embedded Linux OS
Video Input
Network Video Max. 10CH 5MP camera input
Network video input 50Mbps
Video Output
HDMI output 1ch. resolution: 1024x768,1366x768,1440x900,1920x1080p,4K
VGA output 1ch. resolution: 1024x768,1366x768,1440x900,1920x1080p
Recording
Record mode Manual/Schedule/Motion/Alarm
Playback by time/Event
Backup USB backup, network download
Hard Disk
Type 1*SATA
Max. Capacity 8 TB
Network
Network port 1 - RJ45 10M/100M
Wireless 2 - 5dB WIFI antennas + inner antenna (wireless Internet)
Network Control
UPnP (play&plug)/SMTP (email service)/PPPoE (dial-up)
DHCP (Automatically obtain an IP address), etc...
Others
Power Supply DC12V/2A
USB 2 - USB 2.0 for mouse and USB drive
Power Consumption (W) <5W (Without HDD)
Operate Temperature (°C) -10°C~+55°C
Working Humidity (%) RH 10%~90%
